Tinker & Rasor T1 – 3 Terminal Test Station with Hardware (Indicate Color When Ordering)

Tinker & Rasor T1 – 3 Terminal Test Station with Hardware (Indicate Color When Ordering)

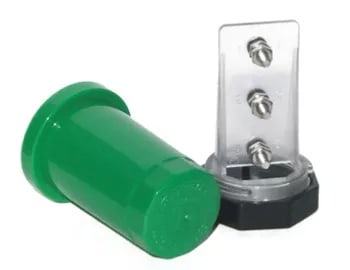

The Tinker & Rasor T-1 is a three terminal cathodic protection test station.

Please note, the T-1 is available in seven colors. Please indicate your color choice when ordering. The color options are:

Manufactured by Tinker & Rasor, these convenient above ground CP Test Stations are ideal for quick access by field personnel when monitoring electrical currents and potentials on buried pipelines, cables or other metallic structures.

The Models T-1 and T-3 are injection molded using Lexan polycarbonate plastics to ensure maximum strength and UV protection to guard against failure due to prolonged exposure to sunlight. The Tinker & Rasor T-1 and T-3 are designed to survive in harsh climatic environments worldwide and come with a limited 25-year warranty.

These unique test stations are designed for easy installation on either new or existing risers and require no tools. Other features include our exclusive “Supergrip Top” (shown at right), making it easy to open the Test Station while wearing gloves, and the “Anti-spin” gasket, which prevents the possibility of the test stations “spinning” on the riser.

The Model T-1 is a three terminal Cathodic Protection Test Station available from stock. The Model T-1 is made of U.V. stabilized, fire resistant and impact resistant poly carbonate material for long outdoor life.

Fits 1.6 O.D. riser pipe, also available from stock in seven colors. Reducing adapters available for smaller O.D.’s.

Clear terminal board has three terminal holes at 1″ centers and stainless steel screws and nuts for corrosion resistance.
