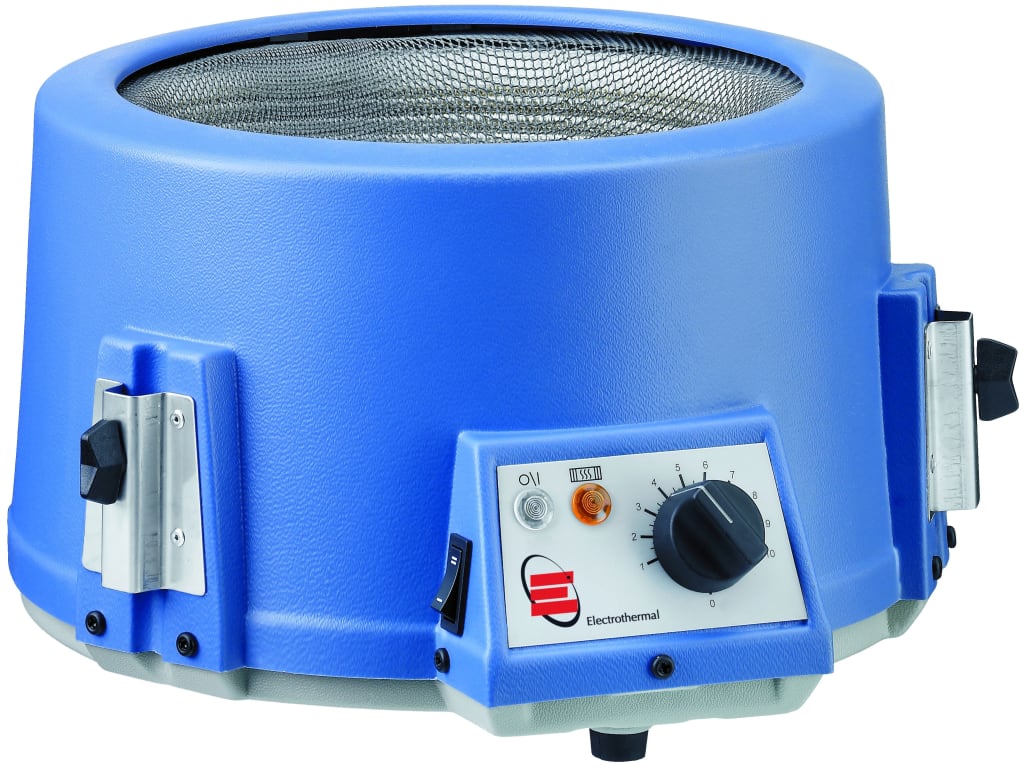

Electrothermal EM0500/CE – 500ml Capacity and 230V 50/60Hz, 200W EM Electromantle

• 500ml Capacity
• 230VAC 50/60Hz, 200W Electrical Requirement
• Chemically resistant polypropylene outer casing
• Use with round bottom flasks from 50ml to 5 litres
• Unique ventilation system which allows outer casing to remain safe to touch

The EM series Electromantles are manufactured to the highest quality in our UK manufacturing facility. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage. All Electrothermal mantles go through the ‘burn off’ procedure at the end of the manufacturing process enabling use straight out of the box.

Heating Electromantle

The EM Electromantle series features a durable, chemically resistant, polypropylene outer housing that minimises damage from spills. They allow maximum heat transfer with minimum risk for flask breakage.

Robust and economical

Designed with simplicity, flexibility and ease of use, the EM series Electromantle is designed to be the workhorse for your heating applications. All EMs have a built-in energy regulator with indicator lamps for power and heater operation. All mantles have support rod clamps as an integral feature and incorporate a grounded earth screen and double fuses for added safety. Larger capacity products have multiple heating elements, enabling a more even and directed transfer of heat.

Electromantle Guide

The Electrothermal series of heating mantles has been specifically designed to provide a comprehensive answer to heating fluids in round bottom flasks in the modern laboratory. The original “Electromantles” revolutionised round bottom flask heating by incorporating a coiled flexible heating element, which ingeniously wraps the heater around the flask to optimise heat transfer. For maximum safety, the flask is held away from direct contact with the heating element via a grounded earth screen. This design principle has stood the test of time and has been imitated the world over. With many years of experience, Electrothermal remains at the forefront of laboratory heating and its associated controlling technology.
