Siglent SVA1015X – 1.5 GHz Spectrum Analyzer with Vector Network Analysis
14 people are viewing this product right now
$1,859.00
Shipping calculated at checkout.
Estimated delivery:4 days
SA: 9 kHz – 1.5 GHz, VNA: 100 kHz – 1.5 GHz, Phase Noise < -99 dBc/Hz, RBW 1 Hz – 1 MHz, Min. DANL -156 dBm/Hz, Total Amplitude Accuracy<1.0 dB, Support TG, Distance to Fault, Advanced Measurement, EMI Pre-test Function (Optional); 10.1 lnch WVGA 1024×600 Display
- Spectrum analysis: 9 kHz – 1.5 GHz
- Vector network analysis: 100 kHz – 1.5 GHz
- -156 dBm/Hz Displayed Average Noise Level (DANL)
- ≤ 1.2 dB total amplitude accuracy
- Phase noise: < -98 dBc/Hz @ 1 GHz, 10 kHz offset
- Resolution bandwidth (RBW): 1 Hz to 1 MHz, in 1-3-10 sequence
- Pre-amplifier and tracking generator are standard
- 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
Guarantee Safe and Secure Payment Checkout
Description
Siglent SVA1015X
- Spectrum analysis: 9 kHz – 1.5 GHz
- Vector network analysis: 100 kHz – 1.5 GHz
- -156 dBm/Hz Displayed Average Noise Level (DANL)
- ≤ 1.2 dB total amplitude accuracy
- Phase noise: < -98 dBc/Hz @ 1 GHz, 10 kHz offset
1.5 GHz Spectrum Analyzer with Vector Network Analysis
The SIGLENT SVA1000X series spectrum and vector network analyzers are powerful and flexible tools for RF signal and network analysis.
With a frequency range of up to 7.5 GHz, the SVA1000X series delivers reliable automatic measurements and multiple modes of operation – the base model is both a spectrum analyzer and a vector network analyzer. Optional functions include distance-to-fault location, vector signal modulation analysis, and much more.
Applications for the SVA1000X include broadcast monitoring and evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance testing, research and development, education, production, and maintenance.
The chart below provides a brief overview of products in this series.
| Model | Frequency Range | Resolution Bandwidth (RBW) | Phase Noise | Total Amplitude Accuracy | Display Average Noise Level (DANL) |
| SVA1015X | 9 kHz to 1.5 GHz | 1 Hz to 1 MHz, in 1-3-10 sequence | < -98 dBc/Hz @ 1 GHz, 10 kHz offset | ≤1.2 dB | -156 dBm/Hz, Normalized to 1 Hz (typ.) |
| SVA1032X | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz, in 1-3-10 sequence | < -98 dBc/Hz @ 1 GHz, 10 kHz offset | <0.7 dB | -161 dBm/Hz, Normalized to 1 Hz (typ.) |
| SVA1075X | 9 kHz to 7.5 GHz | 1 Hz~3 MHz | < -98 dBc/Hz @ 1 GHz, 10 kHz offset | <0.7 dB | -165 dBm/Hz, Normalized to 1 Hz (typ.) |
Product Features

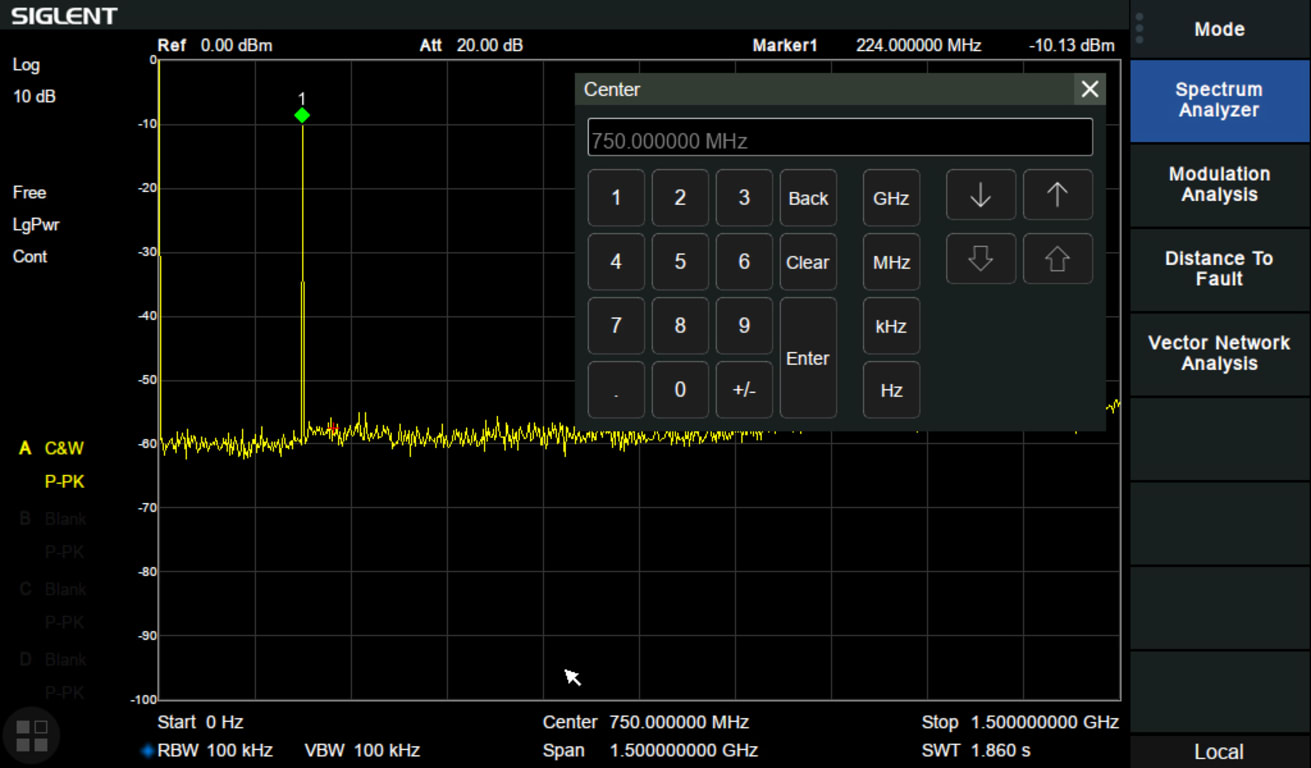

10.1 Inch Display with Multi-Touch Screen

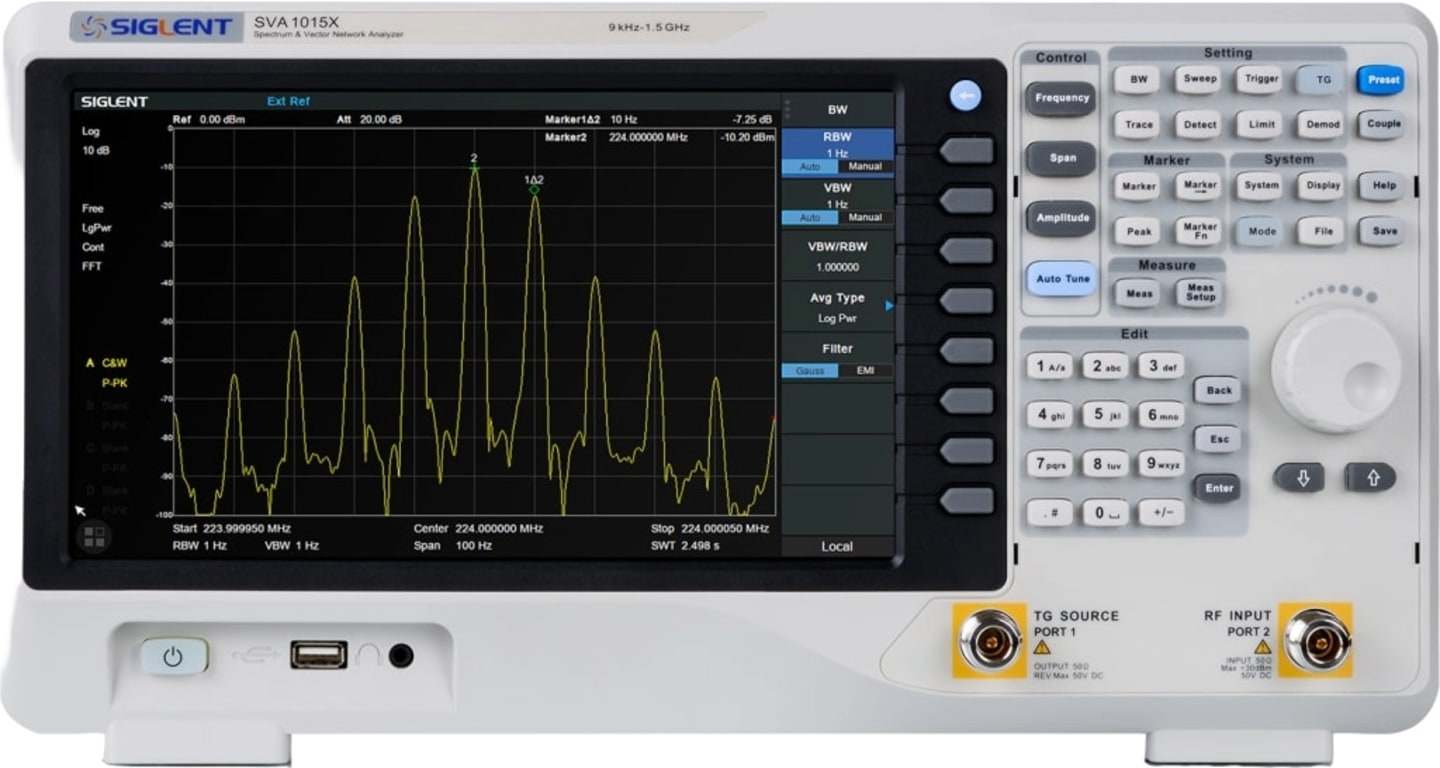

Minimum 1 Hz Resolution Bandwidth (RBW)
Phase Noise <- 98 dBc/Hz@1GHz
-165 dBm/Hz Displayed Average Noise Level
Vector network analysis
The SVA1000X also includes vector network analysis as a standard feature. Frequency ranges for this function are as follows:
- SVA1015X: 100 kHz – 1.5 GHz
- SVA1032X: 100 kHz – 3.2 GHz
- SVA1075X: 100 kHz – 7.5 GHz
The image below is a vector network analysis sample from the SVA1000X.
| 1. SIGLENT | SIGLENT logo | 9. Menu items | Menu items of the current function |
| 2. Calibration Status | Cor: Calibrated; Off : Correction Off; C?: Need to re-calibrate; | 10. Stop frequency | Stop frequency value |
| 3. Port Extensions | P: Port Extensions is On | 11. Points | Measurement points number,101~751 |
| 4. Marker Table | Active Marker indication, every trace 6 markers | 12. Start frequency | The first frequency of a sweep |
| 5. Marker | Current trace active marker | 13. Mode | Mode indication |
| 6. Marker x value | Marker frequency | 14. Trace active | Highlight active trace indication depends on trace format |
| 7. Marker y value | Unit depends on trace format | 15. Trace deactive | Gray indication |
| 8. Menu title | Function of the current menu | 16. Trace | Active trace |
Several options with free trial period
Siglent offers several options for the SVA1000X with a free trial period of approximately 100 hours. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.
This applies to the following options: Distance To Fault, EMI Filter and Quasi-Peak Detection, and Advanced Measurement/Waterfall Chart.
If you would like to purchase these options, they can be found in the accessories section of this page.
Distance to Fault Mode
Cable and Antenna Test based on Timing Domain Analysis
EMI Test Kit

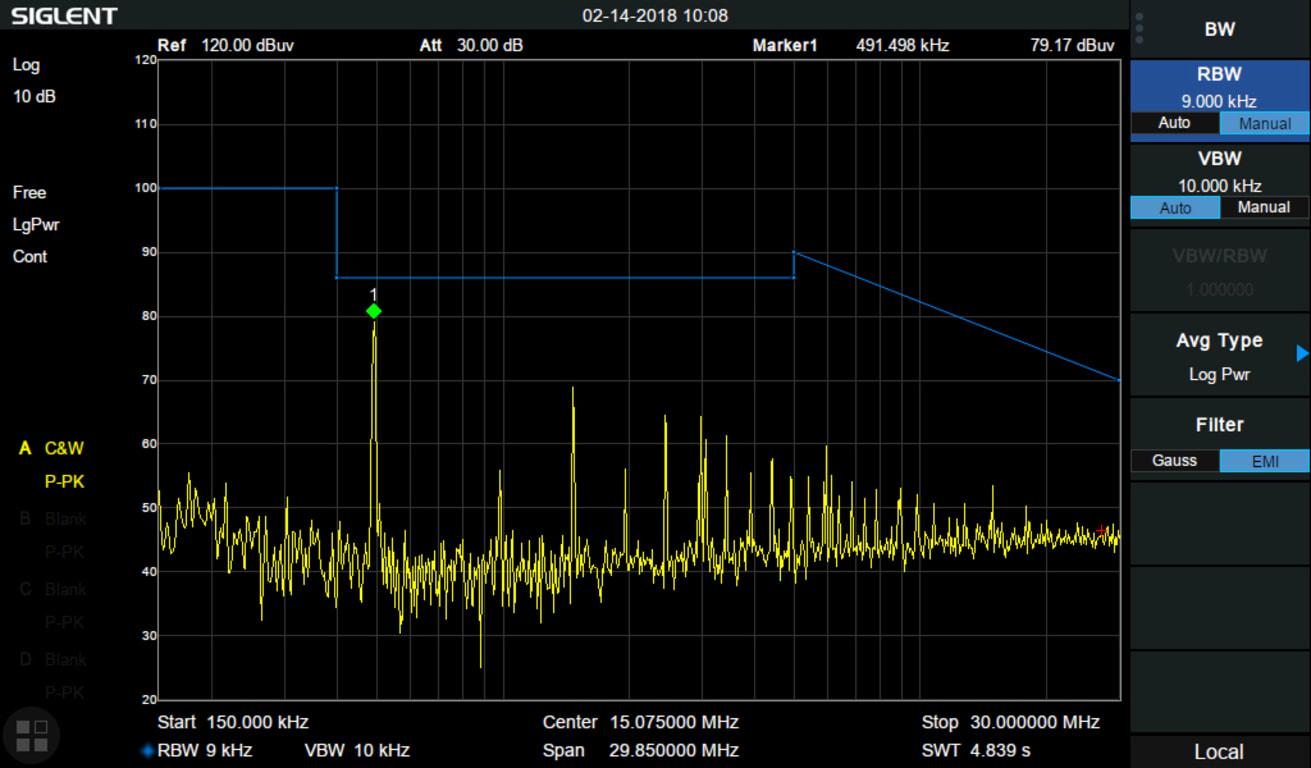

CISPR 16-1-1 EMI filter and Quasi-peak Detector, Log scale, and limit line

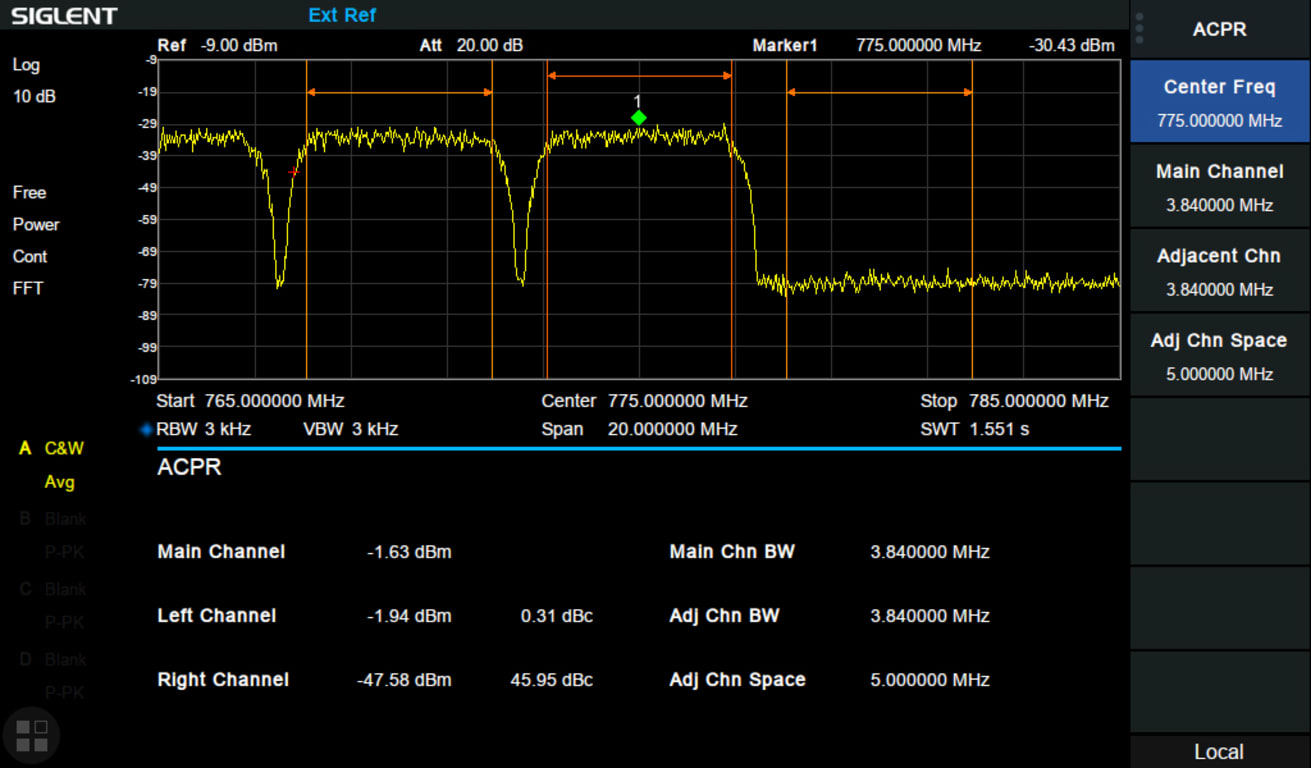

ACPR in Advanced Measurement Kit

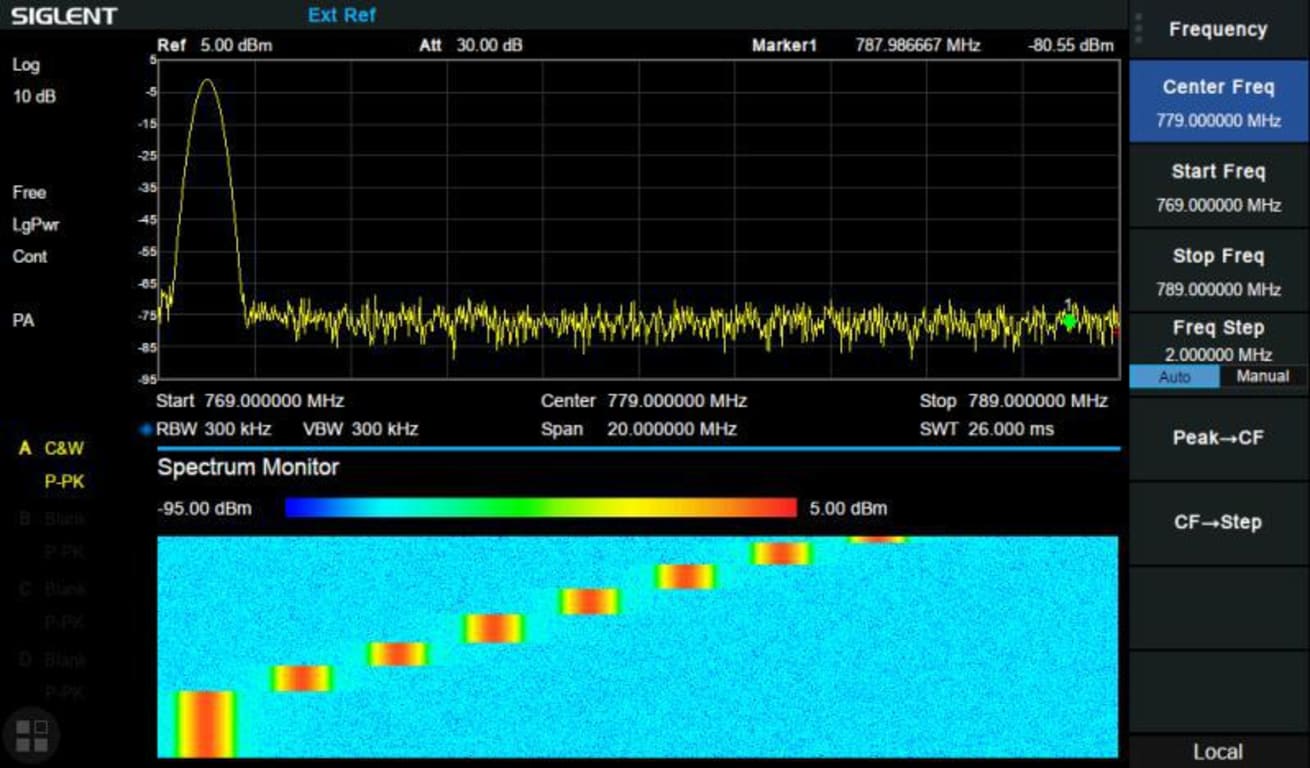

Monitor in Advanced Measurement Kit
Front panel

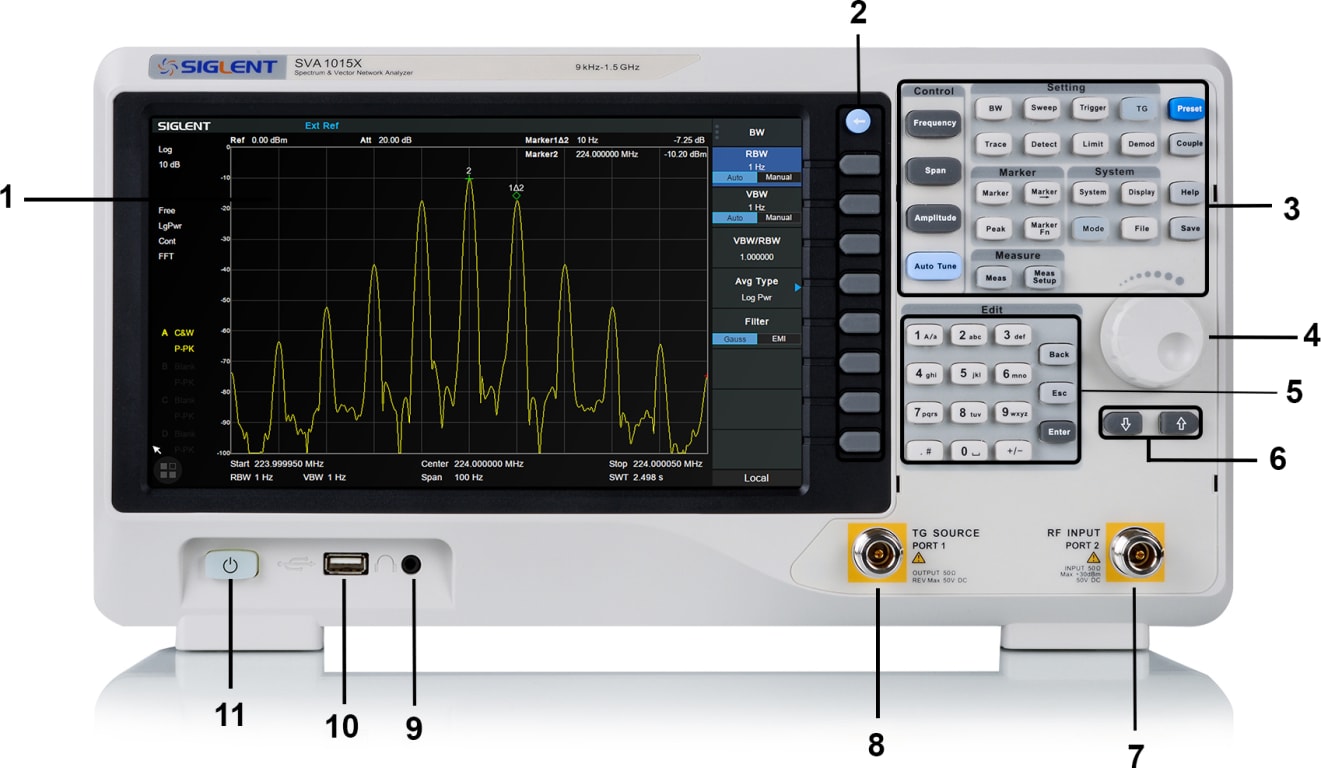

1. User Graphical Interface, touch support
2. Menu Control Keys
3. Function Keys
4. Knob
5. Numeric / Letter Keyboard
6. Arrow Keys
7. RF Input, VNA port 2(SVA)
8. TG Output, VNA port 1(SVA)
9. 3.5 mm Earphone interface
10. USB Host
11. Power Switch
2. Menu Control Keys
3. Function Keys
4. Knob
5. Numeric / Letter Keyboard
6. Arrow Keys
7. RF Input, VNA port 2(SVA)
8. TG Output, VNA port 1(SVA)
9. 3.5 mm Earphone interface
10. USB Host
11. Power Switch
Rear panel
1. Handle
2. USB device
3. LAN
4. REF IN 10 MHz
5. REF OUT 10 MHz
6. Trigger In
7. Security lock hole
8. AC power supply
9. Fuse
2. USB device
3. LAN
4. REF IN 10 MHz
5. REF OUT 10 MHz
6. Trigger In
7. Security lock hole
8. AC power supply
9. Fuse
The table below compares the major specifications and the comparable options as they pertain to specific applications like VSWR.
Spectrum Analyzers/Spectrum Analyzers Template | |
|---|---|
| Bandwidth Range Max | 1.5 GHz |
| Bandwidth Range Min | 9 kHz |
| Noise Floor | -156 dB |
| Tracking Generator | Yes |
| Type(Spectrum Analyzers) | Benchtop |
| Channel Power Measurement | Yes |
| Auto tuning | Yes |
| Marker Measurement | Yes |
| Preamplifier | Yes |
| AM/FM Demodulation | Yes |
| Power Meter | No |
Product General Attributes | |
| Unique Features | 10″ touchscreen USB mouse/keyboard support Vector Signal Analysis (option) Web Browser Remote Control Distance-to-fault (optional) VNA: S11 S21 included |
| Warranty | 3 YEARS |
| Warranty Details | https://siglentna.com/service-and-support/warranty-information/ |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, Web Host / Web Server, Headphone/mic-in jack, USB |
| Storage | Internal Memory, USB Flash Drive |
| IP Rating | IP20 |
| Product Weight | 10 LBS |
| Product Height | 207 MM (8.15 IN) |
| Product Length | 393 MM (15.47 IN) |
| Product Width | 117 MM (4.61 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 9030.84.0000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
