Siglent SSA3021X – 2.1 GHz Spectrum Analyzer with Preamplifier and Tracking Generator
- 2.1 GHz spectrum analyzer
- Includes tracking generator and preamplifier
- All digital IF technology
- -161 dBm/Hz displayed average noise level (Typ.)
- -98 dBc/Hz @10 kHz offset phase noise (1 GHz, Typ.)
Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 kHz to 2.1 or 3.2 GHz. With their lightweight, small size, and user-friendly interface, the SSA3000s present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
Product Features
Easy to operate, Support four independent traces and cursors
Four selectable color-coded traces can be used for different functions (ie. Max Hold, Min Hold, Clear-Write, Math, Average, etc). Four movable markers.
1 Hz Minimum Resolution Bandwidth (RBW)
RBW: 1 Hz – 1 MHz in 1-3-10 sequence. (Minimum RBW depends on Frequency Span)
-151 dBm Displayed Average Noise Level (RBW=10 Hz)
Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset
Reflection/VSWR, Advanced Measurements/Waterfall Chart and EMI Pre-compliance
Siglent SSA3000X spectrum analyzers come with approximately 40 hours of trial usage for the three options listed below.
- Reflection/VSWR Measurement
- Advanced Measurement/Waterfall Chart
- EMI Pre-compliance Measurement
The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out. If you would like to purchase these options, they are listed on the accessories section of this page.

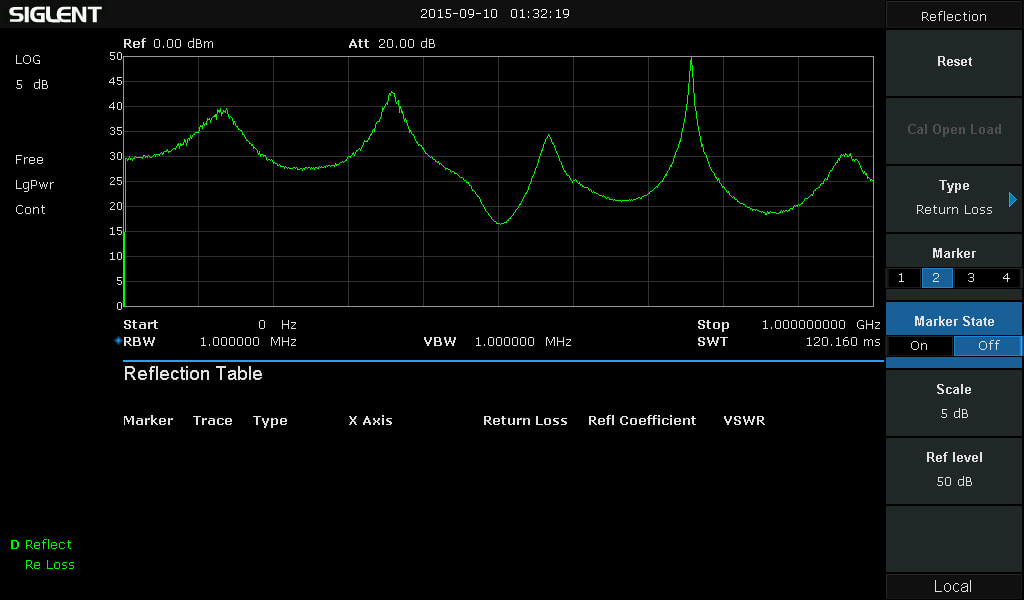

On-screen VSWR/Return Loss measurements with the reflection measurement option (SSA3000-REFL)
Available with or without directional coupler.
Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements
Channel power, Adjacent channel power ratio, TIme domain power, Occupied BW, Third-order intercept, Spectrum monitor (waterfall).

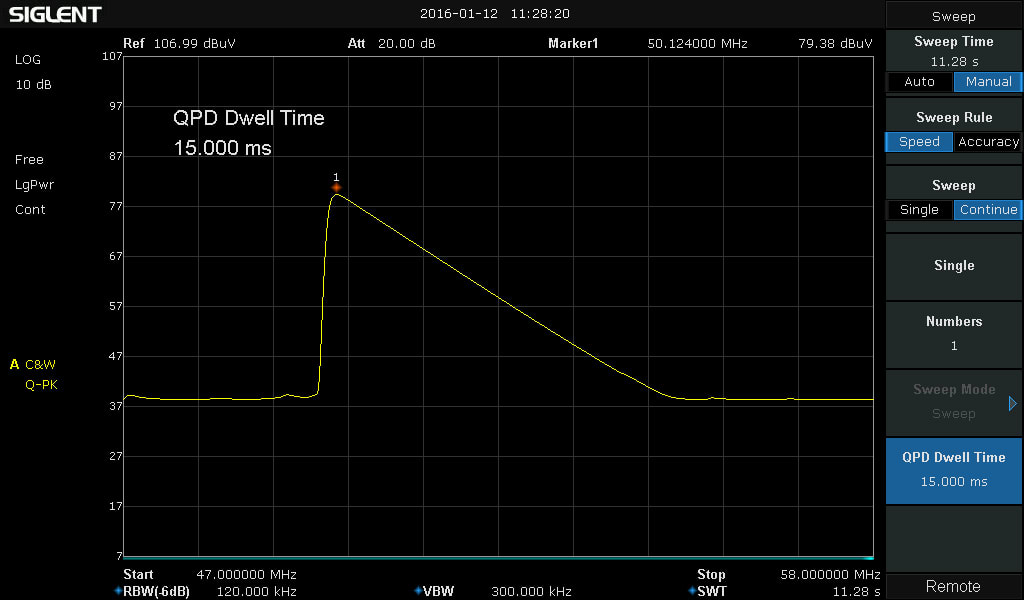

EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)
Comes with EMI report software. Speeds measurement time, generates test reports.

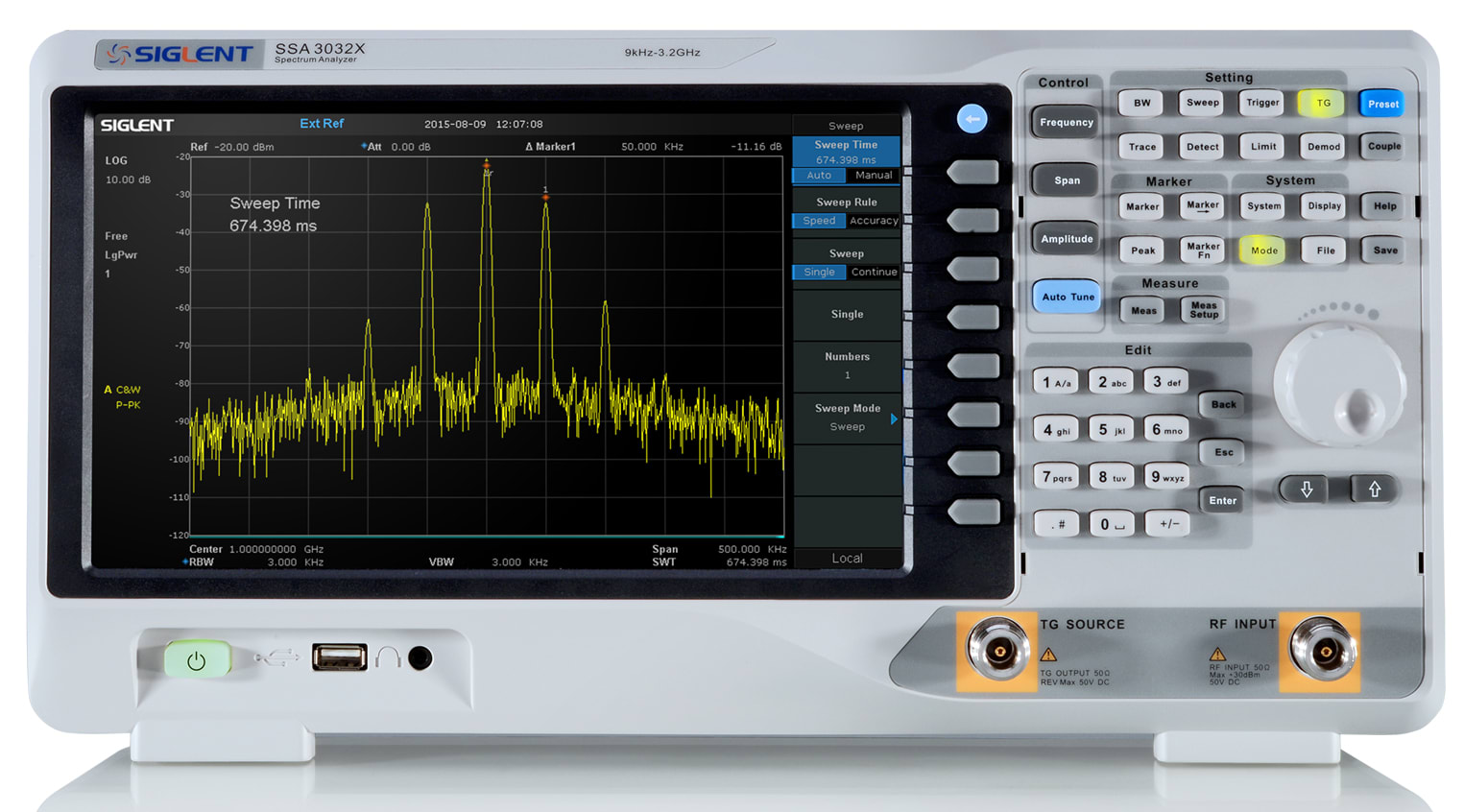

Front Panel
1. User Graphical Interface
2. Menu Control Keys
3. Function Keys
4. Numeric Keyboard
5. Knob
6. Arrow Keys
7. RF Input
8. TG Output
9. Earphone interface
10. USB Host
11. Power Switch
Rear Panel
1. Handle
2. USB Device
3. LAN Interface
4. 10MHz REF Input
5. 10MHz REF Output
6. Trigger In
7. Safety Lock Hole
8. AC Power Socket
The table below compares the major specifications and the comparable options as they pertain to specific applications like VSWR
| SSA3000X Series | SSA3000X Plus Series | SVA1000X Series | ||||
| SSA3021X | SSA3032X | SSA3021X Plus | SSA3032X Plus | SVA1015X | SVA1032X | |
| TG | Standard | Standard | Standard | |||
| SA Bandwidth | 9 kHz – 2.1 GHz | 9 kHz – 3.2 GHz | 9 kHz – 2.1 GHz | 9 kHz – 3.2 GHz | 9 kHz – 1.5 GHz | 9 kHz – 3.2 GHz |
| VNA Bandwidth | – | – | 10MHz – 1.5 GHz | 100 kHz – 3.2 GHz | ||
| VNA Calibration Kit | – | – | F503ME | |||
| DANL | -151 dBm (RBW 10Hz) -161 dBm, Normalized to 1 Hz | -161 dBm/Hz | -156 dBm/Hz | -161 dBm/Hz | ||
| RBW | 1 Hz – 1 MHz (1Hz settable) | 1 Hz – 1 MHz | 1 Hz – 1 MHz | |||
| Phase Noise | < -98 dBc/Hz@1 GHz, 10 kHz offset | < -98 dBc/Hz@1 GHz, 10 kHz offset | < -98 dBc/Hz@1 GHz, 10 kHz offset | |||
| Options | AMK/EMI/Refl* | AMK/EMI/AMA/DMA | AMK/EMI/AMA/DMA/DTF | |||
| AMK details | CHP/ACPR/TOI/OBW/Monitor | CHP/ACPR/TOI/OBW/Monitor/Harmonic/CNR | CHP/ACPR/TOI/OBW/Monitor/Harmonic/CNR | |||
| AMA details | – | AM/FM | AM/FM | |||
| DMA details | – | ASK/FSK/PSK/QAM | ASK/FSK/PSK/QAM | |||
| EMI filter details | 200 Hz, 9 kHz, 120 kHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | |||
| Touch Screen | – | Touch Screen, Mouse & Keyboard, Webserver | Touch Screen, Mouse & Keyboard, Webserver | |||
| *Compatible with many commercially available return loss bridges/directional couplers | ||||||
Spectrum Analyzers/Spectrum Analyzers Template | |
|---|---|
| Bandwidth Range Max | 2.1 GHz |
| Bandwidth Range Min | 9 kHz |
| Noise Floor | -161 dBm (-161 dB) |
| Tracking Generator | Yes |
| Type(Spectrum Analyzers) | Benchtop |
| Channel Power Measurement | Yes |
| Auto tuning | Yes |
| Marker Measurement | Yes |
| Preamplifier | Yes |
| AM/FM Demodulation | Yes |
| Power Meter | No |
Product General Attributes | |
| Unique Features | 10″ LCD |
| Warranty | 3 YEARS |
| Warranty Details | https://siglentna.com/service-and-support/warranty-information/ |
| Safety Approval | CE |
| Interfaces I/O | Headphone/mic-in jack, USB |
| Storage | Internal Memory, USB Flash Drive |
| IP Rating | IP20 |
| Product Weight | 10 LBS |
| Product Height | 207 MM (8.15 IN) |
| Product Length | 393 MM (15.47 IN) |
| Product Width | 117 MM (4.61 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 9030.84.0000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
