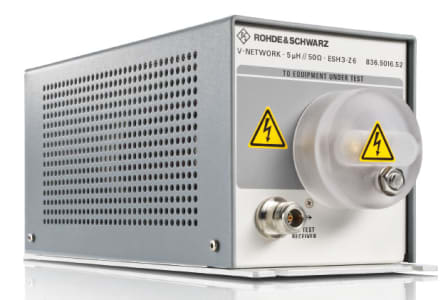

Rohde & Schwarz ESH3-Z6.52 – Single-phase V-network
31 people are viewing this product right now
$3,850.00
Shipping calculated at checkout.
Estimated delivery:5 days
Single-line V-network, 5 uH/50 Ohm, frequency range 0.1 to 200 MHz, up to 100 A continuous current, incl. calibration certificate and report
- 0.1 MHz to 200 MHz
- Single-phase V-network with a simulating impedance of 5 μH | 50 Ω
- Continuous current of up to 100 A
- Calibration in line with CISPR 25: 2016 (Edition 4)
- For measuring disturbance voltage and susceptibility in low-impedance power supply networks
Guarantee Safe and Secure Payment Checkout
Description
Rohde & Schwarz ESH3-Z6.52 – Single-phase V-network
- Calibration in line with CISPR 25: 2016 (Edition 4)
- For measuring disturbance voltage and susceptibility in low-impedance power supply networks
- 0.1 MHz to 200 MHz
- Single-phase V-network with a simulating impedance of 5 μH | 50 Ω
- Continuous current of up to 100 A
The R&S ESH3-Z6 single-phase V-network with a simulating impedance of 5 μH || 50 Ω meets the requirements of EN55025/CISPR25 as well as MIL-STD-4611), DEF-STAN59-411 and DO-160 in the frequency range from 100 kHz to 200 MHz.
The R&S ESH3-Z6 is rated for a continuous current of up to 100 A and can handle surges of up to 500 A for a maximum of 30 s.
The R&S ESH3-Z6 V-network comes with a calibration report for the voltage division factor.
The R&S ESH3-Z6 V-network has screw terminals with a large contact area for low-impedance connection to the equipment under test (EUT) and the power supply using cable lugs. Plastic covers on both connections protect against accidental contact.
Front View functions
- Ground terminal X2.2
- Safety cap
- Power connector X2.1 (for EUT)
- RF output (to test receiver)
- Ground plate (contains 2 notches for ground cable connection)
Rear View functions
- Ground terminal X1.2
- Safety cap
- Power connector X1.1 (to power source)
- Ground plate (contains 2 notches for ground cable connection)
General Attributes | |
|---|---|
| Product Weight | 4.19 LBS |
| Shipping Weight | 5 LBS |
| Product Height | 5.04 IN |
| Product Length | 12.7 IN |
| Product Width | 4.8 IN |
| Country of Origin | Czech Republic |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
| Weight | 4.19 lbs |
|---|---|
| Dimensions | 12.7 × 4.8 × 5.04 in |
