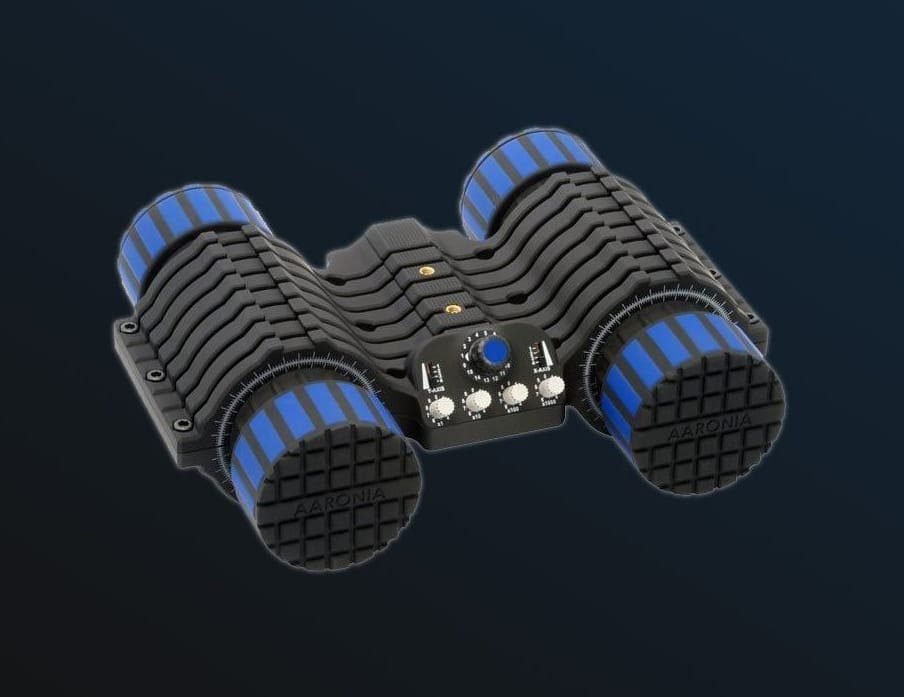

Aaronia Magno TRACKER ELF-2 – Active Magnetic Tracking Antenna

• Patented functionality
• Frequency range: 1Hz – 9kHz
• Design: Ferrite core, Active
• Offers approx. 30dB lower gain compared to MagnoTRACKER ELF-6
• Connection: 50 Ohm SMA connector (optional N connector)

A lot of customers have problems detecting and pinpointing signals in the low-frequency range from 1Hz to 9kHz. They want one antenna with high gain to cover the full frequency range. The antenna should also offer a high directivity to pinpoint the signal(s). Till today such an antenna simply did not exist. Aaronia now offers the world´s first patent pending magnetic antenna “MagnoTRACKER” combining all those features.

Based on a new patented production process Aaronia can produce these new cores with only 10% of the material and weight needed for similar working ferrites. A great advantage for the handling of the MagnoTRACKER antenna.

The Aaronia MagnoTRACKER is usable for the full frequency range of 1Hz to 9kHz without any adjustment. Simply connect it via SMA cable to your Receiver, Spectrum Analyzer, Oscilloscope, Power Meter, etc.

Finding disturbing signals was never that simple and efficient.

The internal 25dB pre-amplifier boosts the sensitivity and offers a 50 Ohm impedance output.
