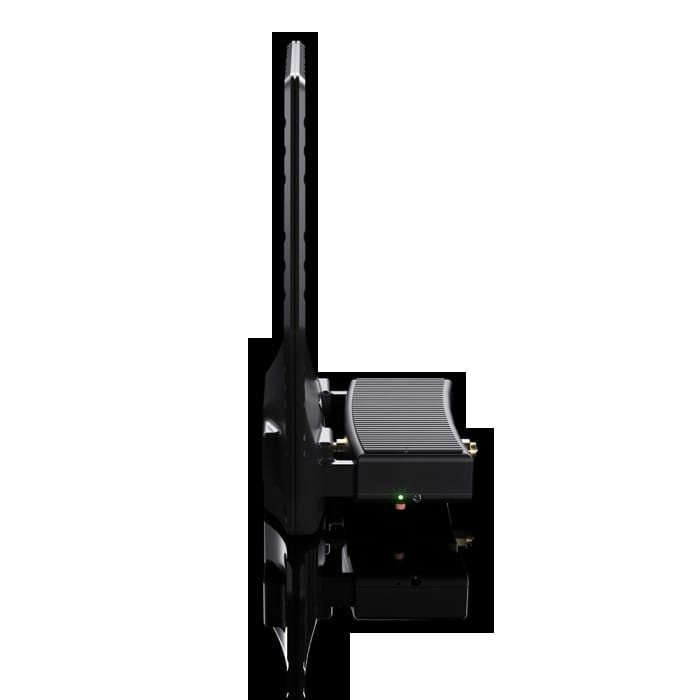

Aaronia MDF50400X – Magnetic Tracking Antenna, 500KHz to 400MHz

• Magnetic Tracking Antenna
• Frequency range: 500KHz to 400MHz (Active)
• Perfect for magnetic field direction finding in combination with Spectrum Analyzers
• Incl. 40dB pre-amplifier with integrated battery

The Aaronia MDF 50400X is a broadband, active magnetic field tracking antenna, suitable for signal tracking and field strength measurements. It offers a frequency range from 500kHz to 400MHz.

Aaronia presents the new, high-quality magnetic field tracking antennas of the MDF series, suitable for signal tracking and field strength measurement. Available in 5 different versions (2 passive, 3 active), the MDF covers an extremely broad frequency range from 9kHz to 400MHz. Together with the MDF antennas, any regular Spectrum Analyzer transforms into a Magnetic Field Meter with a tracking function in a few simple steps.

Compact, Inexpensive, Directional, and Highly Sensitive

The special conversion factor of the MDF, in conjunction with a Power Meter showing dBm values, gives a direct dBA/m display with the correct sign (power meter function).

Thanks to the high directionality of the antenna, the MDF is ideally suited for signal direction finding. This predestines the MDF to use as a radio direction finder or to locate illegal or unwanted interference. Designed and manufactured in Germany, each MDF Antenna stands for the highest quality standards. To illustrate this point every MDF offers a full 10 years warranty period.
