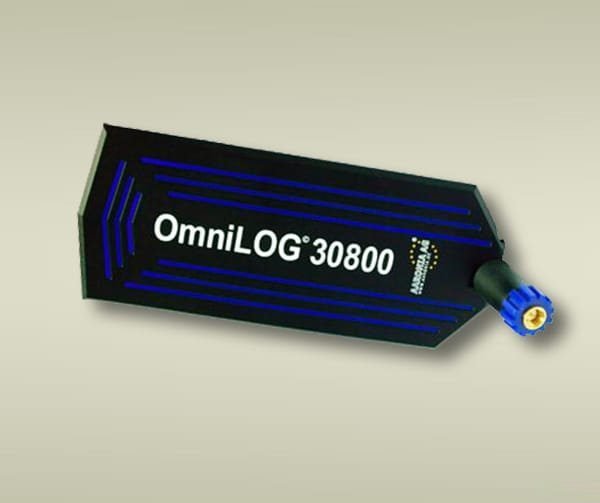

Aaronia OmniLOG 30800 – Radial Isotropic 300 to 8GHz

Ultra-wideband antenna. Advancement of the OmniLOG 70600 with an extended frequency range of 300MHz – 8GHz. The OmniLOG® 30800 Antenna is the extended version of the OmniLOG 70600. Despite its small size, it covers an extremely wide frequency range of 300MHz to 8GHz. It fits perfectly in addition to the SPECTRAN Handheld Spectrum Analyzer but can also be used with any other Spectrum Analyzer brand. The frequency range covers the following, typical signal sources: GSM, CDMA, LTE, WiFi, ISM, DECT, Bluetooth, 5GHz WLAN, and WiMAX. The Antenna offers a heavy-duty 90° knuckle base with an SMA connector. The knuckle base is freely adjustable into each position and fixed by two special ball pressure screws. Compared to the HyperLOG-Antennas, the OmniLOG antenna offers the possibility for direct, radial measurement of field strength without the need to move the antenna to the source. This offers the possibility to get a direct field strength reading without any hassle. The PC Analysis-Software “MCS” supports the OmniLOG 70600 as a broadband antenna too. Its extremely small size allows measurements without attracting attention or even for covert measurements. Every OmniLOG Antenna offers a high-grade SMA male connector and as such can be connected directly to each SPECTRAN Analyzer. The antenna is shipped incl. detailed, typical calibration data.
