Aaronia PowerLOG 70180 – Broadband Horn Antenna, 700MHz to 18GHz
30 people are viewing this product right now
$2,637.35
Shipping calculated at checkout.
Estimated delivery:3 days
PowerLOG 70180 Horn Antenna (700MHz – 18GHz)
- Wide frequency range of 700MHz to 18GHz
- Excellent gain performance for EMC measurements
- Typical standard calibration data (on CD)
- Coverage of various mobile radio frequency ranges
- Suitable for field-strength and EMC measurements due to high precision
- Compact design

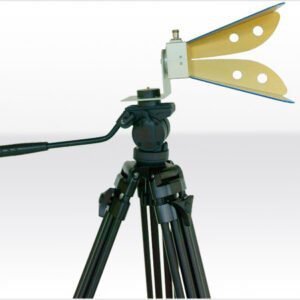

- Can be used in the lab and for open-field application
Guarantee Safe and Secure Payment Checkout
Description
Aaronia PowerLOG 70180 – Broadband Horn Antenna, 700MHz to 18GHz

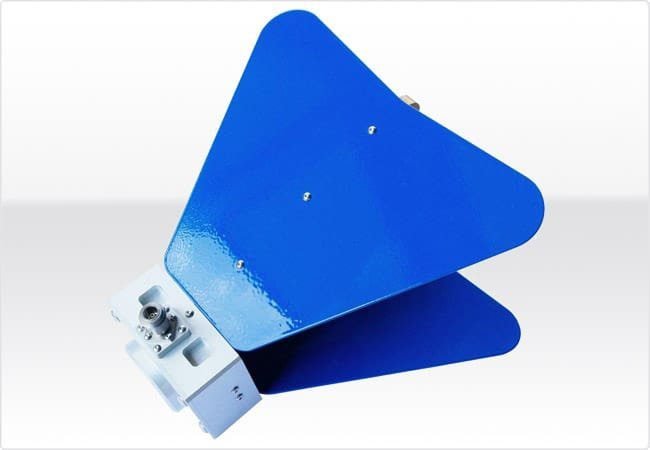

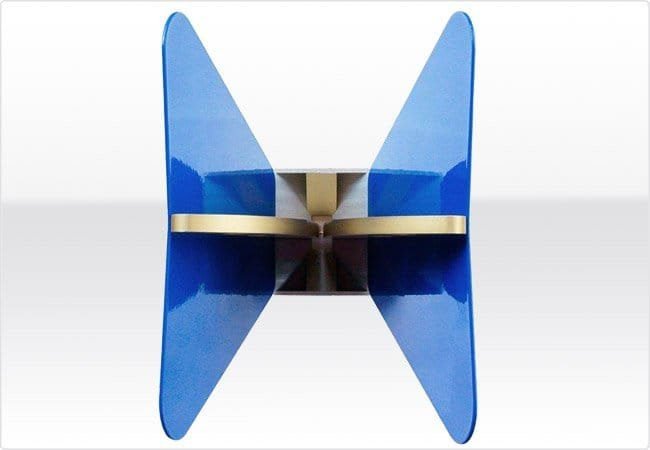

Broadband Horn Antenna Aaronia PowerLOG 70180
The horn antennas of the Aaronia PowerLog ® series are characterized by an enormous broad frequency range and very high input powers. The gain increases with increasing frequency up to max. 17 dBi. This gain increase compensates for the increasing cable losses at higher frequencies.
The PowerLog 70180 is suitable for both transmitting and receiving purposes. Due to the very high maximum transmission power of up to 500W (peak), the PowerLog is especially suitable for EMC and immunity test measurements.
The antenna is delivered including detailed, specific calibration data.
Highlights:
- Extremely wide frequency range from 700MHz to 18GHz
- Supports high input levels up to 500W (peak)
- High gain up to 17dBi
- Delivered including detailed, specific calibration data
- Perfect for EMC and immunity tests with Spectrum Analyzer
- Dimensions: 235x252x175mm
- Weight: 1400g
- Made in Germany
Accessories/Antennas Template | |
|---|---|
| Type (Antennas) | Other Type (Antennas) Horn |
| Maximum Frequency Range | 18 GHz (18000 MHz) |
| Gain | 17 dB |
| Connection | N-Type |
Product General Attributes | |
| Unique Features | Frequency range: 700MHz to 18GHz |
| Warranty | 10 YEARS |
| Product Weight | 1.4 KILOS (3.09 LBS) |
| Product Length | 235 IN |
| Product Width | 252 IN |
| Country of Origin | Germany |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Dimensions | 235 × 252 in |
|---|
