Accuris SmartReader UV-Vis CRV – Microplate Absorbance Reader with Cuvette Port

• Intuitive, 10-inch color touch screen control panel
• Accepts both 96 & 384-well plates
• Monochromator-based system – no filters required, wavelength range from 200 to 1000 nm
• Standalone design – no PC or special software required, USB port for data transfer
• Includes a port for standard cuvette spectroscopy

The Accuris SmartReader UV-Vis CRV is a microplate absorbance reader with cuvette port. The Accuris SmartReader UV-Vis models (MR9610 and MR9611) have been designed with ease-of-use and fast results in mind. These instruments bring extensive capabilities to the lab bench and are designed for the busy lab with multiple users. A large touch screen command center with user-friendly controls allows for fast set up of new protocols, as well as modifying and running existing protocols. The SmartReader UV-Vis CRV (MR9611) models include a port for standard cuvette spectroscopy.

The monochromator-based optical system allows for precise selection of wavelengths from 200nm to 1000nm, with no filters required. This range makes the SmartReader UV-Vis useful not only for typical ELISA, Bradford Lowry, and turbidity assays but also for more advanced applications such as quantitation of nucleic acids and proteins. The SmartReader UV-Vis can be set for Endpoint, Kinetic and Spectral Scanning assays.

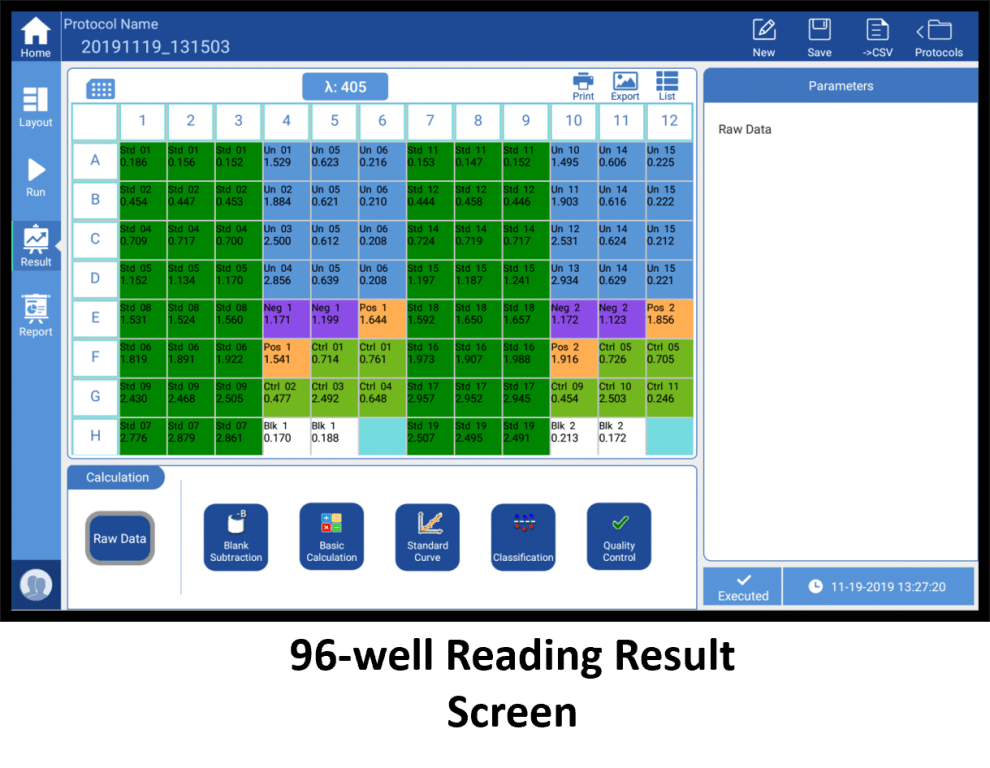

The SmartReader UV-Vis is designed for efficient processing of multiple samples and accepts standard 96 well plates as well as 384 well plates for high density screening. The plate layout interface allows for a quick and intuitive setup of a plate well’s contents. Users can highlight and label multiple wells to save time. The display shows a graphical representation of the plate. Users can label each well as required for: “known standard”, “unknown sample”, “blank well”, “QC Control well”, “positive control”, “negative control”, and “empty”.

Controllable plate shaking and incubation allow for optimization of assay results. The shaking speed can be controlled at different intensities with options for timed and pulsed shaking before a reading, or in between readings when performing a kinetic assay. The linear motion efficiently and uniformly mixes all samples in both 96 and 384 well plates. Temperature can be controlled from ambient +5⁰C up to 45⁰C, allowing for the processing of enzyme kinetics, and bacterial growth assays.

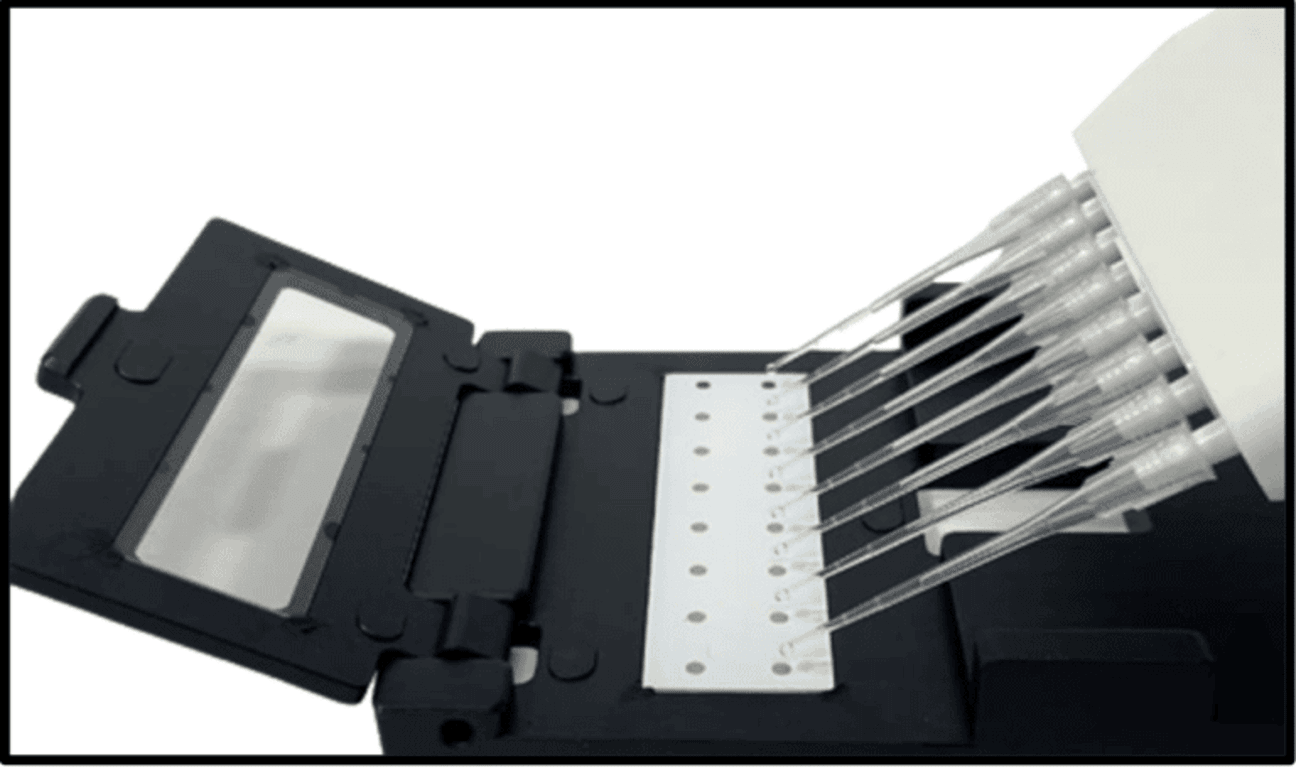

Absorbance measurements of exceptionally small volumes (<0.5ul) can be achieved using the SmartDrop accessory plate (sold separately). The SmartDrop plate accommodates up to 16 samples and is ideal for checking nucleic acid concentrations and purity for Next Gen Sequencing, or protein concentrations.
