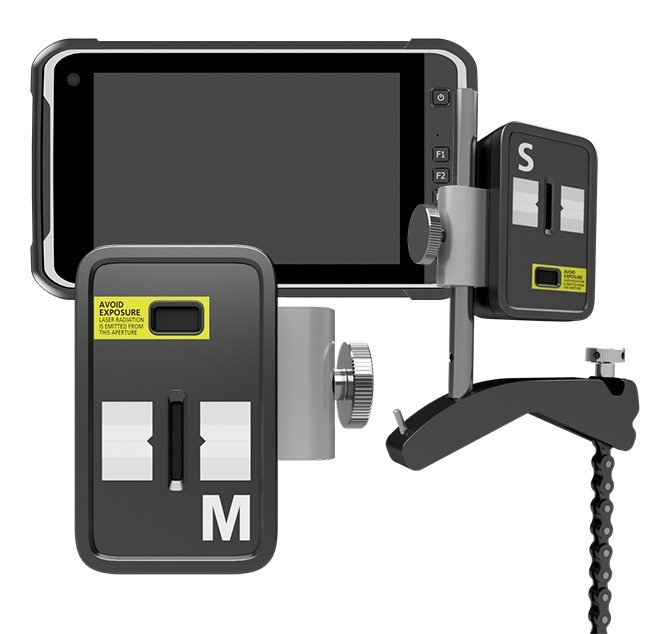

Acoem AT100 – Tablet-Based Horizontal Shaft Alignment System
46 people are viewing this product right now
$7,698.90
Shipping calculated at checkout.
Estimated delivery:5 days
Smart Laser Alignment Tool
- Samsung 8-inch tablet display with pre-installed customizable Acoem shaft alignment applications
- Fast and accurate results are delivered by intelligent sensor technology
- Reports in PDF format show the alignment process and results in detail. Reports can be easily shared
- Live animations of the engine’s position make the measurement and horizontal alignment intuitive and easy
- A scalable tool of the global Augmented Mechanics Ecosystem
- Determine soft foot presence with SoftCheck
- Easily align horizontal and vertical machines with VertiZontal
- Automatic alignment quality assessment according to tolerances with graphical and color-coded result
- Down to 1 % accuracy in the values displayed
- GuideU makes it simple to align rotating assets following the highly visual interface
Guarantee Safe and Secure Payment Checkout
Description
Acoem AT100
- 8-inch tablet display with pre-installed customizable Acoem shaft alignment applications
- Fast and accurate results are delivered by intelligent sensor technology
- Reports in PDF format show the alignment process and results in detail. Reports can be easily shared
- Live animations of the engine’s position make the measurement and horizontal alignment intuitive and easy
- A scalable tool of the global Augmented Mechanics Ecosystem
Tablet-Based Horizontal Shaft Alignment System
The AT-100
Tackle machine misalignment efficiently with this tablet-based horizontal shaft alignment system designed for novices and experts alike.
Navigate Your Alignments with Confidence
Acoem’s Horizontal Alignment application was designed to take the mess out of aligning machines. The app utilizes our GuideU interface, which automatically guides the operator through 5 essential steps that take the guesswork out of alignment.
Align with Simplicity
The AT-100 is a shaft alignment tool built by and for the user. Controlled by a tablet, the system guides individuals through the alignment process with an intuitive application that couples with two wireless laser heads. Within minutes, the user can perform an alignment and save a report straight to their device.
Setup

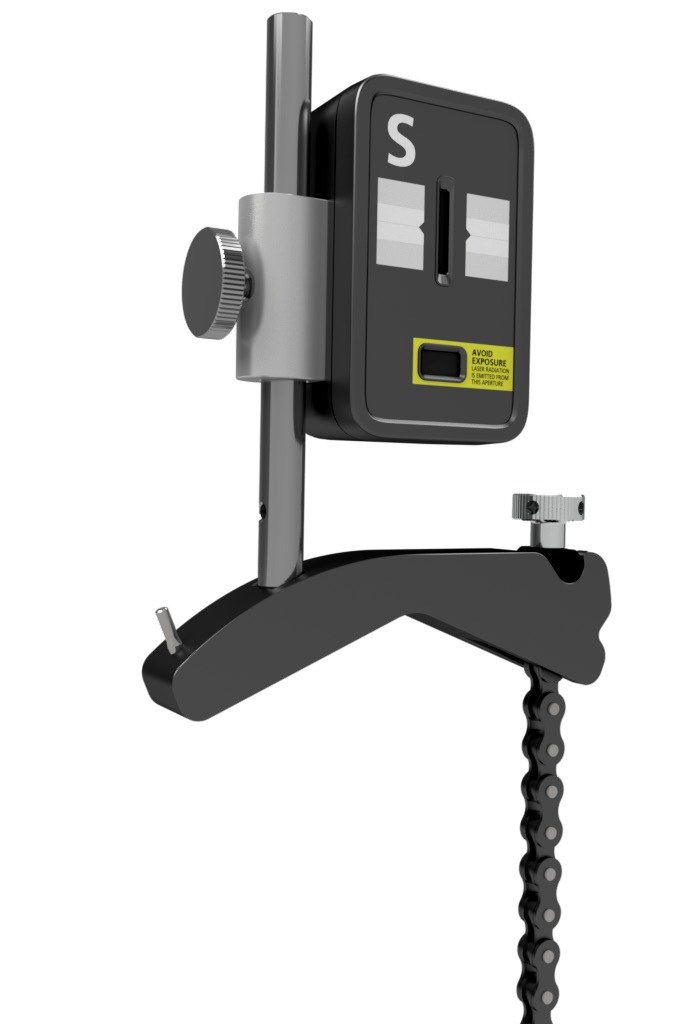

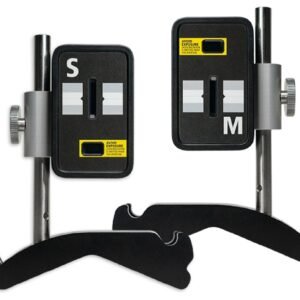

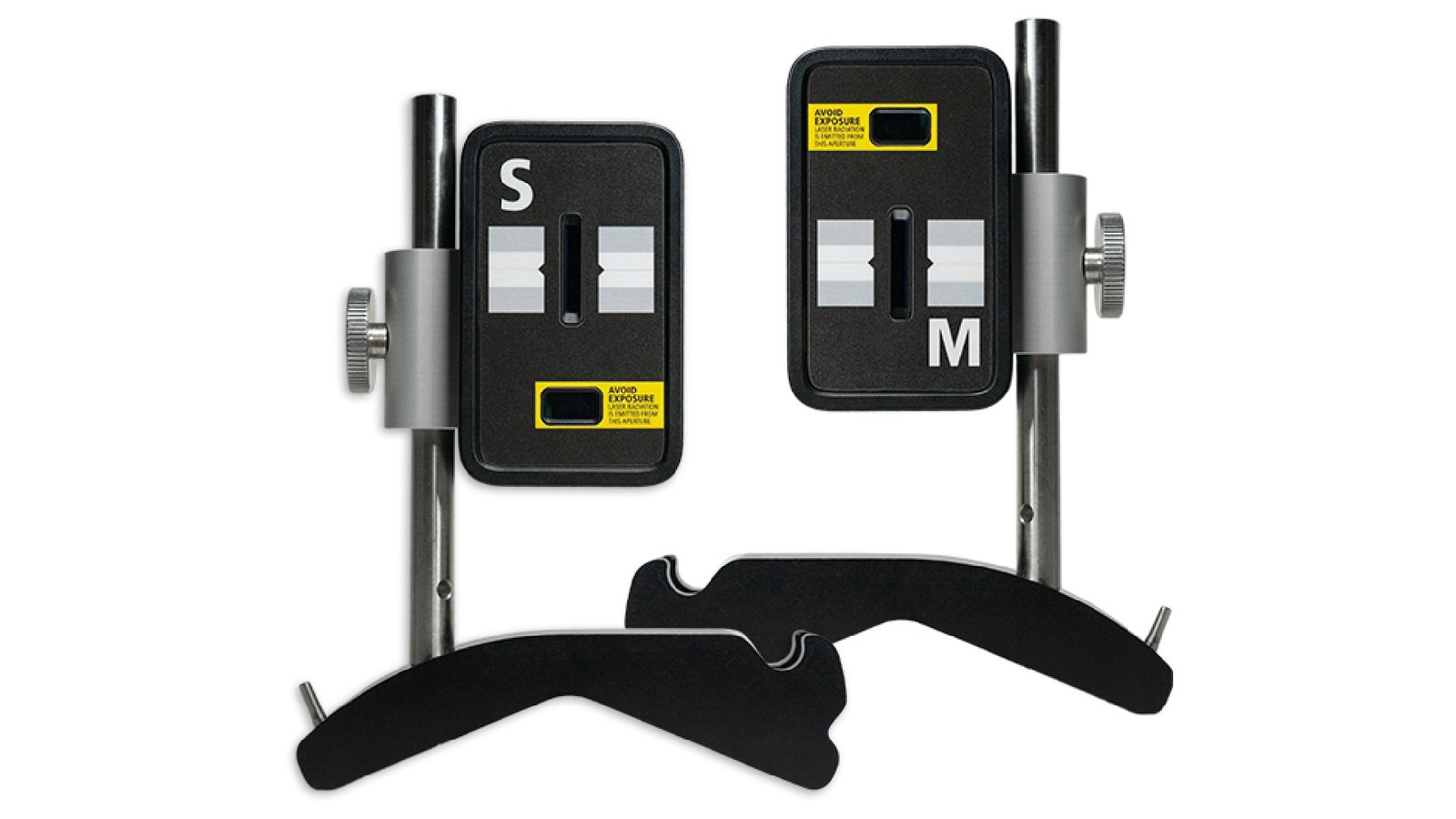

After mounting the movable and stationary sensor to the machine shaft, connect to them wirelessly using Bluetooth.
Measure
To setup an alignment, measure four simple dimensions pertaining to your setup and select the run speed of your machine.
Adjust
Once three simple measurements are recorded with the laser sensors, the user will make the provided adjustments to align the machine vertically and horizontally.
Remeasure
Now that corrections have been made, one more pass at taking measurements with the sensors will supply the user with new results to ensure that the machine is in alignment.
Report
Now that the machine is in alignment, document your results with the click of a button to save a PDF report of the measurement.
Save and Share Reports Instantly
The Horizontal Alignment application’s PDF report function provides fast and efficient on-site reporting functionality. Instantly share reports from your mobile device and store them in your maintenance system accordingly.
Product General Attributes | |
|---|---|
| Warranty | 1 LIMITED LIFETIME (1 YEARS) |
| Interfaces I/O | Bluetooth, Micro USB |
| IP Rating | IP54 |
| Product Weight | 15.6 OUNCES (0.975 LBS) |
| Product Height | 3.7 IN |
| Product Length | 3.4 IN |
| Product Width | 1.4 IN |
| Shipping Weight | 18.00 LBS |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
| Weight | 15.6 lbs |
|---|---|
| Dimensions | 3.4 × 1.4 × 3.7 in |
