Adam Equipment AELP 1000 AE503 – Pallet Beam with Indicator

• OIML-approved load cells
• Capacity: 2200lb / 1000kg
• Readability: 0.5lb / 0.2kg
• Repeatability: 1lb / 0.2kg
• Pan size: 4.7″x52.4″ / 120x1330mm

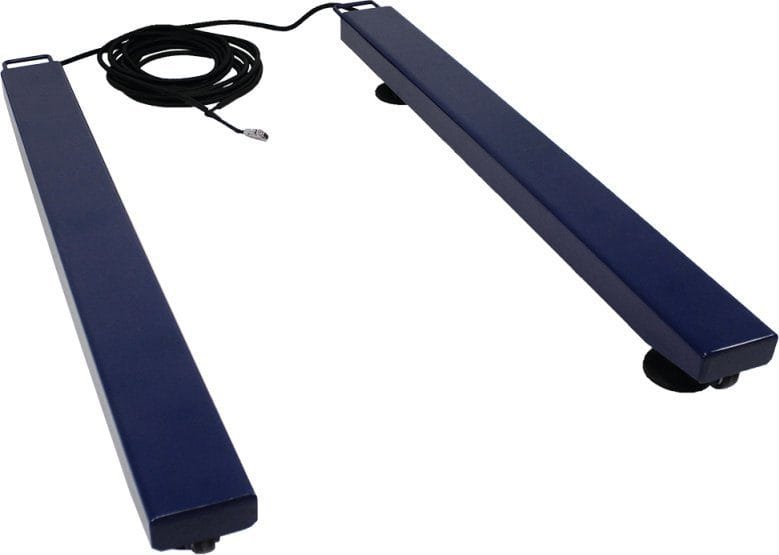

AELP pallet beams offer fast, precise mobile weighing up to 2000kg for industrial and commercial environments. The beams can be extended and retracted depending on the size of the object and are supplied with built-in wheels and handles, making them easy to move around.

Enclosed channels with high-quality load cells provide accurate, repeatable measurements and are built to withstand the rigors of constant warehouse use. Use the AELP with the GK or AE402 indicator for the desired range of features. AELP beams are equipped with approximately five meters of shielded cable.

AELP pallet beams make ideal cattle scales that can be easily combined with weighing platforms, cattle crushes or cages by mounting these on top of the beams for effective livestock weighing.

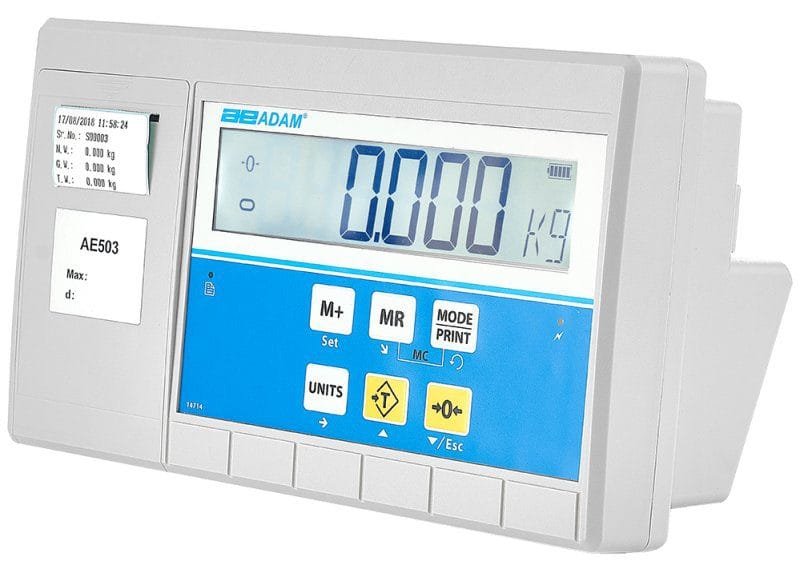

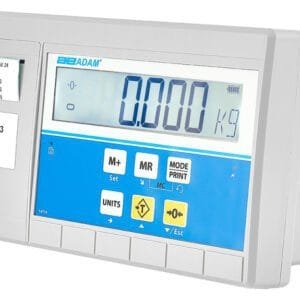

Strong ABS construction and an integrated label printer enhance functionality for the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing and averaging.

A large, easy-to-read backlit LCD screen features 1.3-inch/34mm-tall digits and symbols to show over, under or within limits during checkweighing. A sealed, color-coded keypad allows quick and easy configuration.

Using the built-in printer, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels.

• Weighing
• Parts counting
• Percentage weighing
• Checkweighing
• Check counting
• Dynamic / animal weighing

• Weighing
• Parts counting
• Percentage weighing
• Check counting
• Averaging
• Barcode / label printing
• Checkweighing
• Dynamic / animal weighing
• Accumulation
• Display hold
• Peak hold
