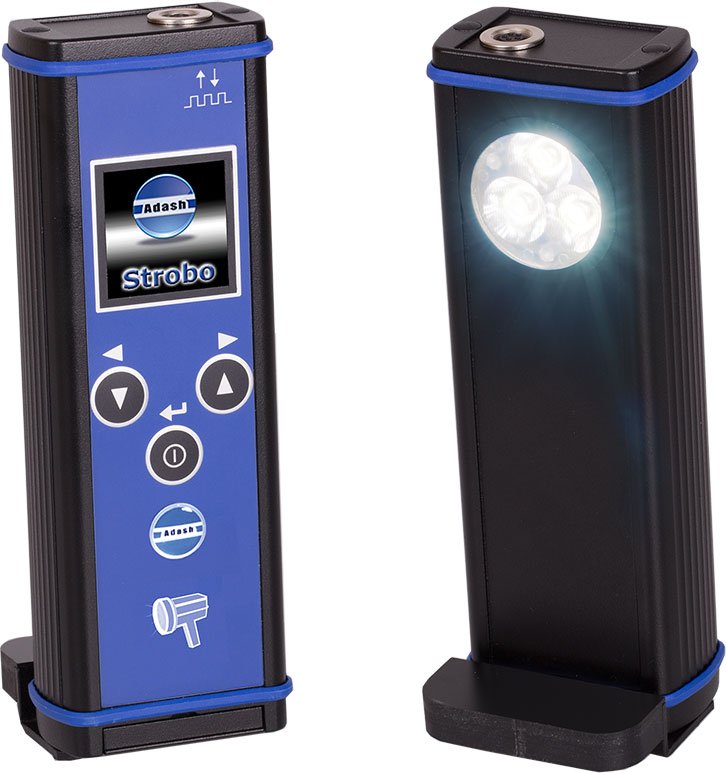

Adash America A4950 – Handheld LED Stroboscope
26 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
A4950 handheld LED stroboscope for a wide range of machinery maintenance applications. Stroboscope ostensibly stops rotating or generally periodic (reciprocating) motion of a machine to determine speed of rotation and to perform synchronized measurements without having to use reflective markers on the shaft.
- High power LEDs with lens and reflector system
- Flashing frequency range from 0,5 Hz to 500 Hz (30 RPM to 30 000 RPM)
- Flash frequency divider and multiplier
- Control of the flash duration
- Phase shift or shift by blades function
- Flashing controlled by internal or external triggering
- Powering for external laser tacho-probe
- Trigger output for external instrument (balancer)
- Torch mode
- Powered by 2 AA batteries
- Heavy duty case
- Tripod mounting plate
Guarantee Safe and Secure Payment Checkout
Description
Adash America A4950 – Handheld LED Stroboscope
- High power LEDs with lens and reflector system
- Flashing frequency range from 0,5 Hz to 500 Hz (30 RPM to 30 000 RPM)
- Flash frequency divider and multiplier
- Control of the flash duration
- Phase shift or shift by blades function
- Flashing controlled by internal or external triggering
Stroboscope enables to ostensibly stop rotating or generally periodic (reciprocating) motion of a machine. It allows also to find out the speed of rotation or to perform synchronized measurements without having to use reflective markers on the shaft.
The A4950 stroboscope uses three ultra-bright LEDs with optical system as a source of flashes. The device is equipped with a colour graphic display and 3 operational buttons. Operation is very easy and intuitive. Two standard or rechargeable AA batteries are used for powering. The A4950 stroboscope can be used also as a tachometer by connecting an external speed probe.
Basic Information
- ground (GND)
- trigger signal output
- not used
- tacho probe powering +5 V / 50 mA
- trigger signal input
Switch ON/OF
Arrow Buttons
- Select the right or left item from the menu at the bottom
- Move between items (up/down) in menu
Enter button
- Switches the instrument on/off
- Confirmes the selection
- Selects the middle item from the menu at the bottom
