Advanced Thermal Solutions FCM-100 – Fan Characterization Module
16 people are viewing this product right now
$30,245.68
Shipping calculated at checkout.
Estimated delivery:3 days
Fan Characterization System
- Designed to test and characterize fans of various sizes and performance outputs
- Accepts 2 round frames (DIA 200 and DIA 172) and five square sizes (150×150, 140×140, 127×127, 120×120 and 92×92 mm)
- Includes four removable perforated flow restriction plates, allowing the user to control the pressure drop through the module
- Flow rate: 70 CFM to 2080 CFM
- Pressure range: up to 0.15 PSI
- Accuracy: +/- 3%
- Generates fan curves when used with the PTM-1000 and eATVS (sold separately)
- Compatible with FCMC-100 controller
- Materials: sheet metal
- Custom options for mounting plates, multiple fans and fan trays
Guarantee Safe and Secure Payment Checkout
Description
Advanced Thermal Solutions FCM-100
- Designed to test and characterize fans of various sizes and performance outputs
- Accepts 2 round frames (DIA 200 and DIA 172) and five square sizes (150×150, 140×140, 127×127, 120×120 and 92×92 mm)
- Includes four removable perforated flow restriction plates, allowing the user to control the pressure drop through the module
- Flow rate: 70 CFM to 2080 CFM
- Pressure range: up to 0.15 PSI

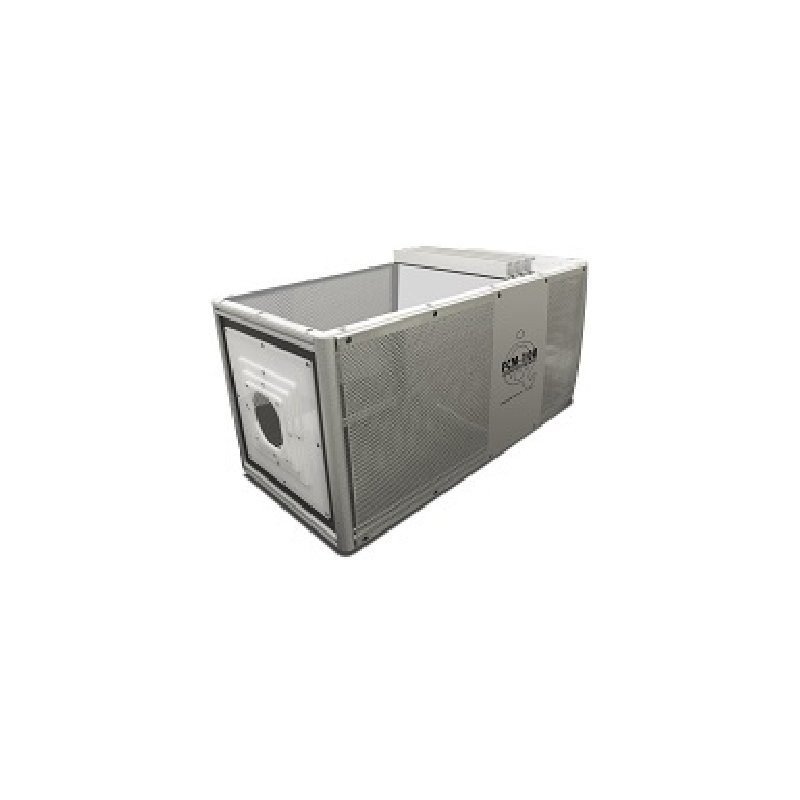

Fan Characterization Module
The Advanced Thermal Solutions FCM-100 Fan Characterization Module is a specialized unit designed to test and characterize fans of various sizes and performance outputs. Using the FCM-100 Module in conjunction with pressure measurement equipment (such as the PTM-1000) and velocity measurement equipment (such as the eATVs), it is possible to develop fan curves (ΔP vs. Flow rate) that can be used to verify fan manufacturer data or to characterize fans of unknown performance.
The FCM-100 is constructed of sturdy corrosion-resistant sheet metal, with casters for easy portability. A removable and customizable Lexan mounting plate is provided to which fans of various diameters can be secured. Four (4) removable perforated flow restriction plates are also provided to allow the user to control the pressure drop through the module for fans under testing. Customizable options include various-sized specialized mounting plates for the characterization of multiple fans simultaneously, including fan tray assemblies.
Applications
- Fan characterization
- Fan testing
- Thermal characterization studies
Product General Attributes | |
|---|---|
| Product Height | 19.7 IN |
| Product Length | 36.2 IN |
| Product Width | 18.7 IN |
