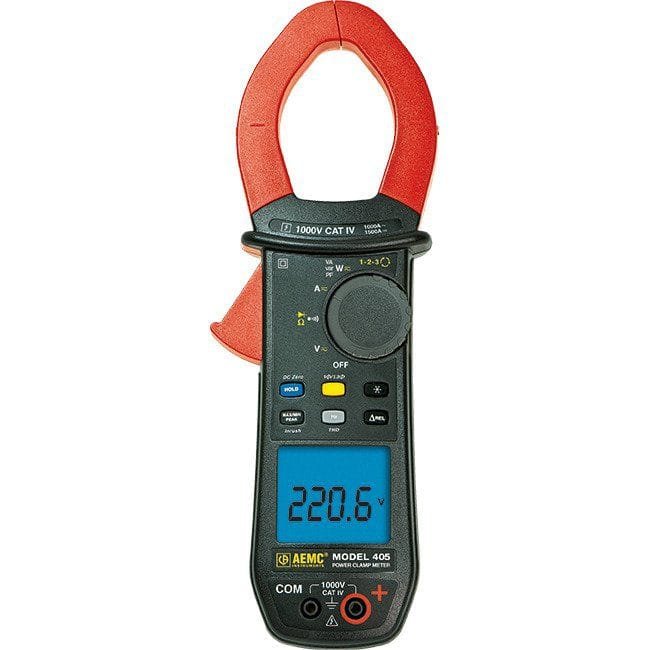

AEMC 405 – Power Clamp-on Meter (TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD)
35 people are viewing this product right now
Original price was: $456.50.$433.67Current price is: $433.67.
Shipping calculated at checkout.
Estimated delivery:5 days
Power Clamp-on Meter Model 405 (TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD) {Replaced by Cat #2139.51 – Model 407}
- 1000 V CAT IV Rated
- Jaw Opening: 1.9″ (48mm)
- IP54 Rated
- 10,000 Count Blue Electroluminescent Backlit Display
- TRMS Measures up to 1000V AC, DC and AC+DC with Resolution to 10mV
- Measures W, VA, var and PF for single- and three- phase balanced systems
- Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W (Model dependent)
- Measures frequency to 20kHz with 0.1Hz resolution
- Auto selects AC or DC measurement voltage
- True InRush® current measurement with 100mS capture
Guarantee Safe and Secure Payment Checkout
Description
AEMC 405
- InRush: 10 to 1000AAC, 10 to 1500ADC
- Jaw Opening: 1.9″ (48mm)
- Frequency: 20kHz in V, 2kHz in A
- Resolution Max: 0.01A
- Voltage Range: 1000Vrms AC/DC/AC+DC Autoranging
- Resolution Max: 0.01V
Power Clamp-on Meter (TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD)
The True RMS Clamp-On Meter Model 405 is safety rated at 1000V CAT IV. AC DC clamp meter – it measures AC, DC, and AC+DC volts, amps and power. The Model 405 also measures resistance, frequency, True InRush®, temperature, phase rotation, and continuity. It can also perform diode checks. This rugged meter can operate in the most demanding work environments, and its IP54 rating allows it to withstand both dust and water spray.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1500 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 1.89 IN |
| Resistance | Yes Resistance 0.1Ω to 99.99kΩ |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes In-Rush Current True InRush® (overcurrent measurement) |
Product General Attributes | |
| Warranty | 12 MONTHS (1 YEARS) |
| Safety Approval | CE |
| IP Rating | IP54 |
| Product Weight | 1.32 LBS |
| Product Height | 10.7 IN |
| Product Length | 3.62 IN |
| Product Width | 1.61 IN |
| Shipping Weight | 9.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA Battery Type 4x AA Batteries |
| Country of Origin | China |
| UPC | 685338220414 |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 9 lbs |
|---|---|
| Dimensions | 3.62 × 1.61 × 10.7 in |
