Description

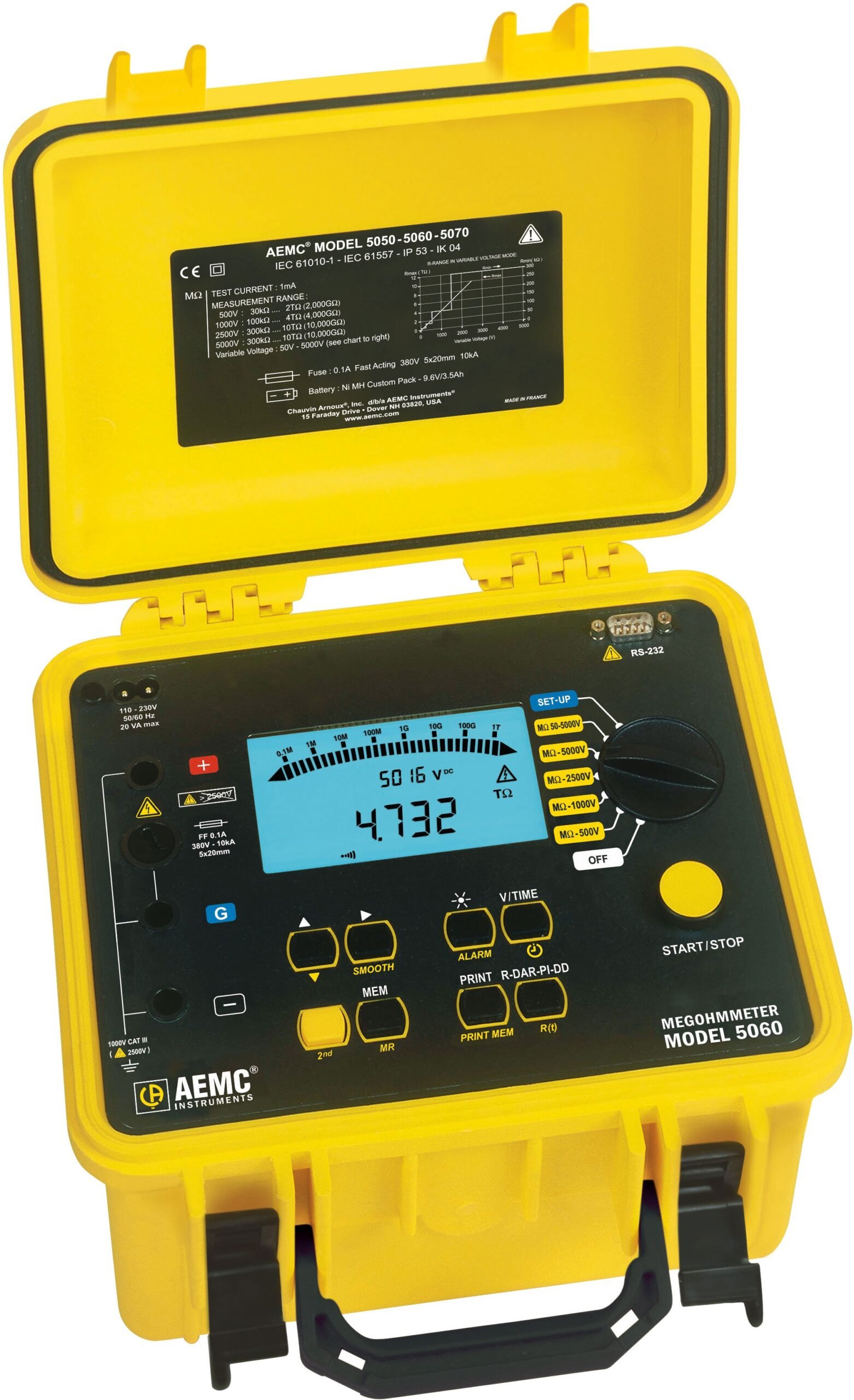

AEMC 5060
- True Megohmmeter
- Test voltage combination of 500V, 1000V, 2500V and 5000V
- Includes soft accessory bag, one red, one blue, one black lead with integral 5000V rated hippo clips, one jumper lead for use with guard terminal, 6ft RS-232 DB9/DB25 F/F cable, DataView Lite Software, rechargeable battery pack, US 120V power cord, and User manual
- Insulation measurements from 1kΩ to 10TΩ
- Adjustable and programmable test voltage (40 to 5100V)
Digital/Analog Megohmmeter (RS-232 w/DataView Software)
The Digital/Analog Megohmmeter Model 5060 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The True Megohmmeter® Model 5060 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads are displayed at the conclusion of the test. This meter is designed with the highest level of built in safety features. The Model 5060 can be operated from an internal rechargeable battery or from AC line power. An RS-232 port provides the ability to configure the unit and run a test from the PC. Test reports can be generated directly from the instruments to a printer or through the PC using the DataView® analysis software.
Features
- Automatic discharge and display of discharge voltage
- Large dual-display with time, voltage and measurements shown
- Rugged weatherproof field case
- RS-232 interface for direct printing of results
- 128kB memory for storing field test data
- Remote operation from PC
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 2,500 V, 5,000 V, 500 V |
| Maximum Insulation Resistance | 10 T Ohms (10000 G Ohms) |
| Automated Test Results | Dielectric Absorption Ratio, Dielectric Discharge, Leakage Current |
| Type | Battery, Line |
| Minimum Insulation Resistance | 30 K Ohms (0.00003 G Ohms) |
| Variable Incremental Voltage | Yes Variable Incremental Voltage Adjustable and programmable test voltage (40 to 5100V) |
| Display (Megohmmeter) | Digital Display (Megohmmeter) Digital bar graph to simulate analog display |
| Continuity Test | Yes |
| Live Circuit Voltage Detection | Yes Live Circuit Voltage Detection Automatic test inhibition if live sample (>25V) |
| Power Supply | Battery, Line Powered |
| Timer | Yes |
| CAT Rating | III |
| CAT Voltage | 1,000 V |
Product General Attributes | |
| Unique Features | Automatic discharge and display of discharge voltage Large dual-display with time, voltage and measurements shown Rugged weatherproof field case RS-232 interface for direct printing of results 128kB memory for storing field test data Remote operation from PC Includes DataView software |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232, USB |
| Storage | Compact Flash |
| IP Rating | IP53 |
| Product Weight | 9.5 LBS |
| Product Height | 7.09 IN |
| Product Length | 10.63 IN |
| Product Width | 9.84 IN |
| Data Logging | Yes Data Logging 128kB memory for storing field test data |
| HTS/Schedule B Number | 9030330040 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | Ni-Cad |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | France |
| UPC | 685338150193 |
