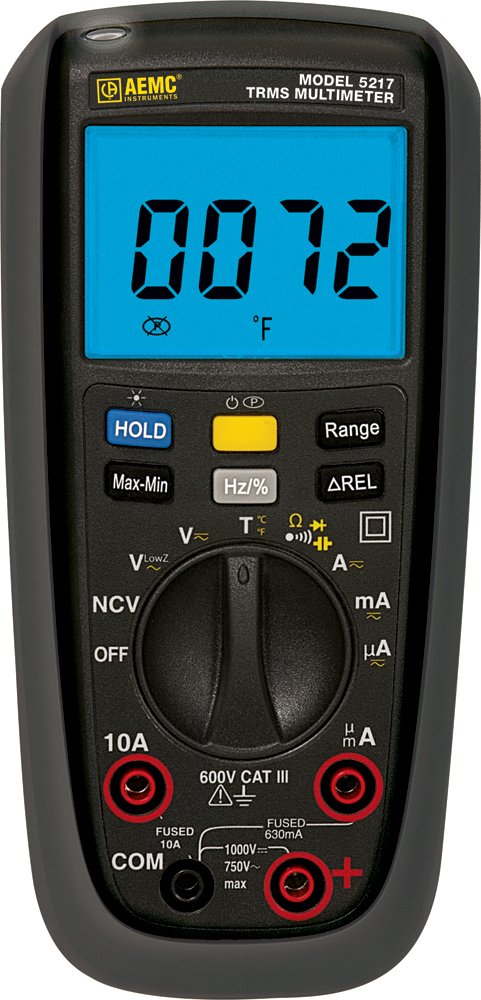

AEMC 5217 – Digital Multimeter
45 people are viewing this product right now
Original price was: $130.90.$124.35Current price is: $124.35.
Shipping calculated at checkout.
Estimated delivery:5 days
DMM Model 5217 (TRMS, 6000-cts, NCV, V, A, AC/DC, Ohm, T, Frequency, Auto Hold)
- 5217 TRMS, 6000-cts, NCV, V, A, AC/DC, Ohm, T, Frequency, Auto Hold
- True RMS (TRMS)
- Non-Contact Voltage detection
- Low input impedance voltage measurement (VLowZ) to help prevent “ghost” voltage from affecting the measurement
- HOLD function
- MAX/MIN function displays the maximum and minimum readings detected during a measurement session
- Δ REL compares measurements to a user selected reference value.
- Auto/Manual range selection
- Backlight and flashlight
- Multiple mounting options (stand, slot, magnet)
- Sleep Mode for extending battery life
Guarantee Safe and Secure Payment Checkout
Description
AEMC 5217
- Counts: 6000
- Voltage: AC/DC 750VAC/1000VDC
- Current: AC/DC 10AAC/DC
- Bandwidth AC: 1kHz
- Resistance: 60MΩ
- Frequency: 1kHz
Digital Multimeter
The Model 5217 is a portable hand-held multimeter that measures a variety of electrical and physical quantities including voltage (AC and DC), resistance, capacitance, frequency, and temperature. These instruments can also perform continuity checks, voltage detection, and diode testing (including forward bias voltage). Measurement features include Auto Range mode, which enables the instrument to select the best range for the input detected, and a Data HOLD function. These instruments are rugged and simple to use and rated to 600V CAT III.
Applications
- Measurement of electrical values including voltage, resistance, and capacitance
- Continuity checking
- Diode testing
- Non-contact detection of network voltage
Measurements
- Voltage (AC and DC)
- Current (AC and DC)
- Resistance
- Diode test
- Continuity check
- Capacitance
- Temperature measurement (Model 5217)
Functional Displays
1: Display Hold enabled 2: Relative mode active 3: Auto measurement 4: MAX – MIN – MAX, MIN or MAX minus MIN selected 5: Auto Power OFF 6: Low battery indication 7: AC, DC – DC or AC voltage or current 8: Diode test selected | 9: Continuity selected 10: M, k: Decimal prefix 11: Hz: Frequency selected 12: °F, °C: Temperature 13: %: Duty cycle selected 14: A, V: Amps or volts 15: F: Farads for capacitance 16: n, m, µ: Decimal prefix |
General Attributes | |
|---|---|
| Warranty | 3 YEARS |
| Product Weight | 320 GRAMS (0.7055 LBS) |
| Shipping Weight | 6.00 LBS |
| Product Height | 6.7 IN |
| Product Length | 2 IN |
| Product Width | 3.1 IN |
| Country of Origin | China |
Multimeters Template | |
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Minimum Current AC | 6 mA |
| Minimum Current DC | 10 mA |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes Resistance 60M Ohm |
| Frequency | Yes Frequency 1000Hz |
| Capacitance | Yes Capacitance 100mF |
| Temperature | Yes Temperature With K-type probe |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Product General Attributes | |
| Safety Approval | CE |
| IP Rating | IP54 |
| Data Logging | No |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 320 lbs |
|---|---|
| Dimensions | 2 × 3.1 × 6.7 in |
