AEMC 5231 – Digital Multimeter
35 people are viewing this product right now
Original price was: $97.90.$93.00Current price is: $93.00.
Shipping calculated at checkout.
Estimated delivery:5 days
DMM Model 5231 (TRMS, 6000-cts, V, AC/DC, Ohm, CT, NCV)
- Non-electrical contact detection of network voltage (NCV Function)
- High sensitivity with a resolution of 0.01mV
- AC voltmeter with low input impedance (voltage measurements for electricity and electrical engineering)
- AC/DC voltmeter with high input impedance (voltage measurements for electronics)
- Ohmmeter, Continuity test with buzzer and Diode test functions
- Ammeter (measurement using current clamp-on current probes)
- Withstands overloads up to 8000V
- VLowZ function detects the presence of ghost voltage by placing a burden on the circuit
- Multi-position mounting for a hands-free work environment
- Recommended current probes – AEMC Models MN03, MN251 & SR651
Guarantee Safe and Secure Payment Checkout
Description
AEMC 5231
- Counts: 6000
- Voltage AC/DC: 1000VAC/600VDC
- Current AC/DC: 600AAC/DC (with 1mV/A clamp)
- Bandwidth AC: 1kHz
- Resistance: 60MΩ

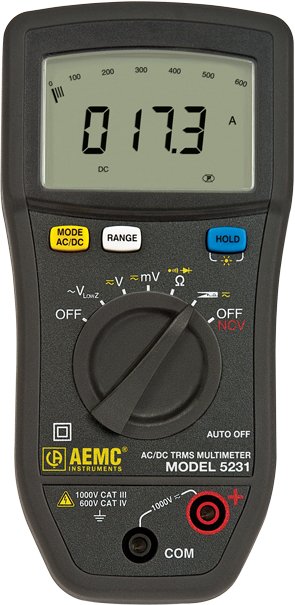

Digital Multimeter
The Model 5231 is a rugged, economical TRMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV. The Multimeter Model 5231 provides a Volt, Ohm, Continuity, Diode function, as well as an AC voltmeter function with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It performs AC/DC direct reading current measurements up to 600A with a current clamp accessory plugged in.
The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.
The Model 5231 is ideal for electrical installers, electricians, and heating or air-conditioning specialists.
Applications
- General-purpose testing
- Detect loose electrical wiring
- Detect live circuits
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.01 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.01 mV |
| Maximum Current AC | 600 A Maximum Current AC With 1mV/A clamp: 1 range – 600A |
| Minimum Current AC | 0.1 A (100 mA) |
| Resolution AC Current | 0.1 A (100 mA) |
| Maximum Current DC | 600 A Maximum Current DC With 1mV/A clamp: 1 range – 600A |
| Minimum Current DC | 0.1 A (100 mA) |
| Resolution DC Current | 0.1 A (100 mA) |
| Basic Accuracy V DC | 0.2% |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | No |
| Diode Testing | No |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V CAT Voltage 600V CAT IV / 1000V CAT III |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Product General Attributes | |
| Safety Approval | CE |
| IP Rating | IP54 |
| Product Weight | 320 GRAMS (0.7055 LBS) |
| Product Height | 6.1 IN |
| Product Length | 2.17 IN |
| Product Width | 2.95 IN |
| Shipping Weight | 6.00 LBS |
| Data Logging | No |
| Calibration Included | |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparisonOther
| Weight | 320 lbs |
|---|---|
| Dimensions | 2.17 × 2.95 × 6.1 in |
