AEMC 6255 – 10A Micro-Ohmmeter
31 people are viewing this product right now
Original price was: $5,550.00.$4,995.00Current price is: $4,995.00.
Shipping calculated at checkout.
Estimated delivery:5 days
Micro-Ohmmeter Model 6255 (10A, Instantaneous, Continuous, Multiple Test, Manual/Auto Temperature Compensation; includes 10A Kelvin Clips (Hippo-Cat #1017.84), 1A Kelvin Probes Spring Loaded (Cat #2118.73) and DataView Software)
- Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω
- Test current selection of 1mA, 10mA, 100mA, 1A and 10A
- RTD temperature probe to check the tested sample (optional)
- Selectable metal types
- Automatic and manual temperature correction
- Two programmable alarm set points
- Stores up to 1500 test results
- Selectable inductive or resistive test modes
- Automatic multiple test mode (multiple tests without pressing the test button)
- Large multi-line electroluminescent display
Guarantee Safe and Secure Payment Checkout
Description
AEMC 6255
- Temperature Measurement: 3 wire 100Ω platinum RTD
- Accuracy: ±0.5°C
- Resolution: 0.1°C

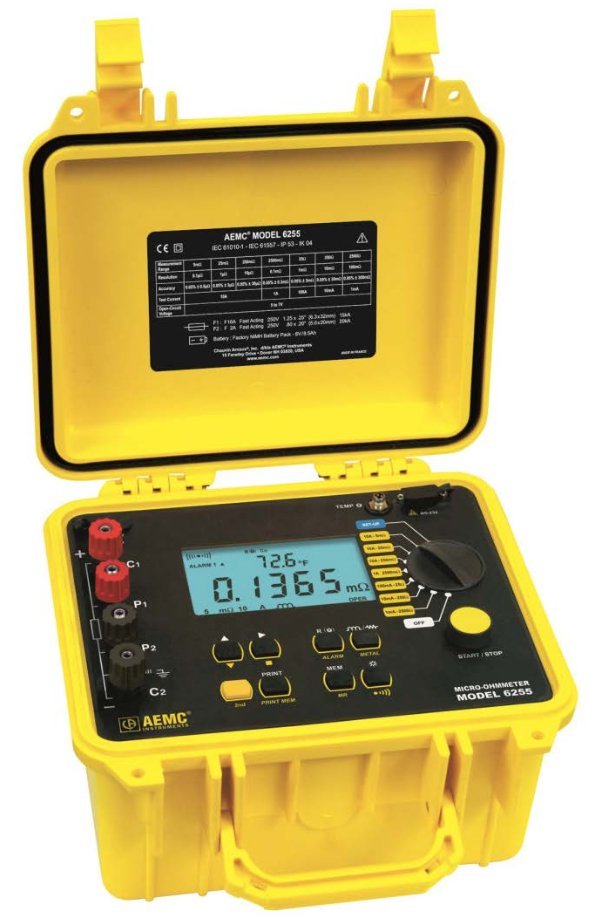

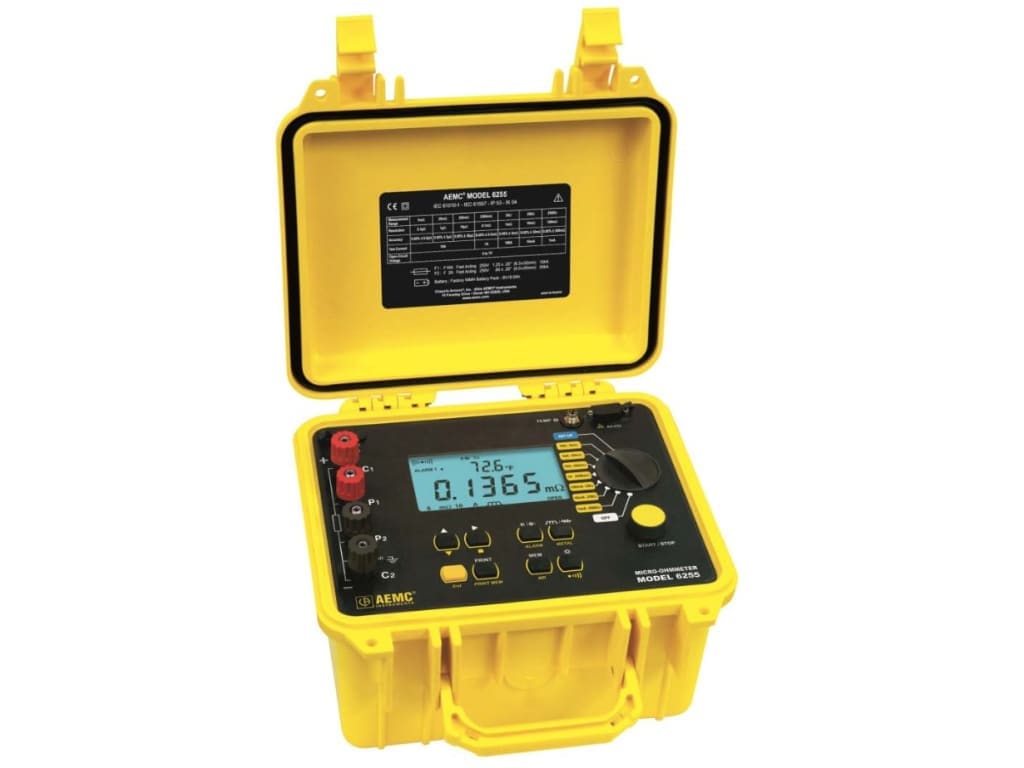

10A Micro-Ohmmeter
The 10A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.
The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Style (Micro-Ohmmeter) | Portable |
| Maximum Test Current | 10 A |
| Variable Test Current | Yes |
| Max Resistance (ohm) | 2500 Ohms |
| Alarm | Yes |
| Temperature Compensation | Yes |
| Line Power or Battery power | Battery Power, Line Power |
| Kelvin Four-Terminal Measurement | Yes |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP53, IP64 |
| Product Weight | 8 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | |
| Battery Type | NimH |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | France |
You must be logged in to post a review.
Manuals/Guides
Manuals
- AEMC 6255 Quick Start Guide
- AEMC 6255 Kelvin Probe Lead Connection for Micro-Ohmmeters
- AEMC Kelvin Probe Lead Connection for Micro-Ohmmeters User Manual
- User Manual
| Weight | 8 lbs |
|---|
