AEMC 6424 – Ground Resistance Tester (Digital, 3-Point)

• Simple, one-button operation – eliminates errors in testing
• The test button turns green when a measurement is stable
• 2P resistance/ 3P ground resistance measurement up to 50kΩ for highly resistive terrain

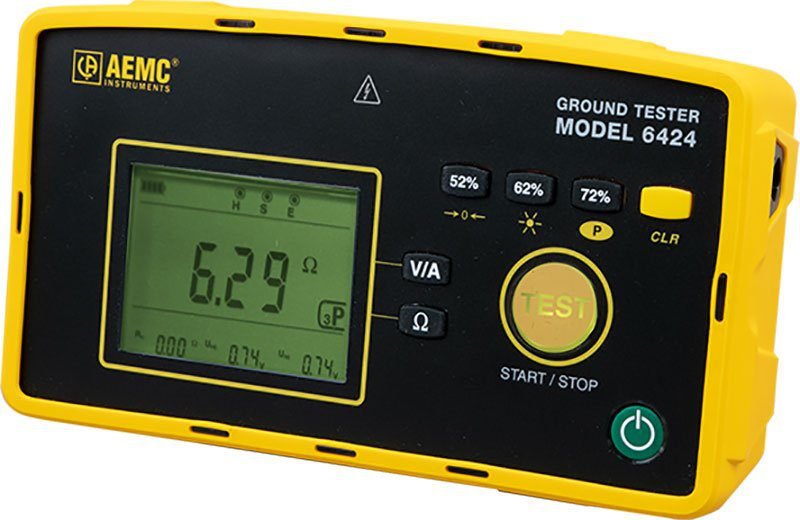

The Digital Ground Resistance Tester Model 6424 performs 2-pole and 3-pole ground resistance measurement. This direct reading tester is auto-ranging, so it automatically seeks out the optimum measurement range. The Model 6424 is easy to use – simply connect the leads, press to measure, and read. The large LCD also indicates low battery status, overrange, and lead reversals.

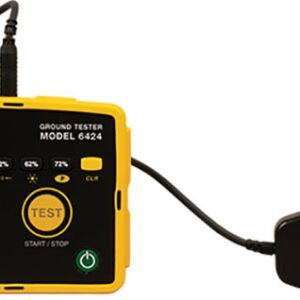

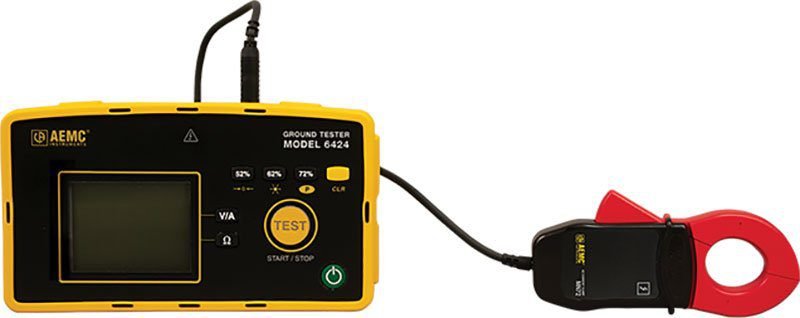

The Model 6424 comes with 3 safety color coded terminals to aid in easy hookup, measure voltage up to 600V AC/DC and AC current up to 60A with the optional current probe Model MN72.

The Model 6424 is powered by 6 x AA rechargeable NIMH batteries. The Ground Resistance Tester Model 6424 is also available in complete Kits (150ft and 300ft).

Added Features

• CAT IV 600V rated for a high level of operator safety
• Checks AC/DC voltage and AC leakage current (Model 6424)
• Stores 52, 62, and 72% measurements – eliminates errors in determining the ground resistance (Model 6424)
• Leakage current measurement from 0.5mA to 70A (Model 6424)
• Battery recharging via AC adapter, USB or vehicle DC port b (Model 6424)

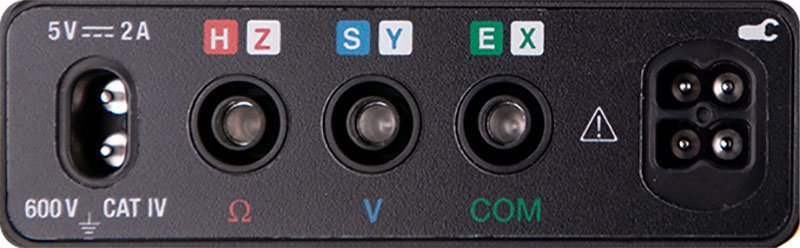

• Color-coded leads and terminals provide fast, error-free connection hook-up
• Detects and prohibits hazardous voltage measurement
• Direct access to all functions, even when wearing work gloves
• Rugged water resistance case, for all terrain use
• Built-in display stand to prop up an instrument for seeing the display better when placed on the ground
