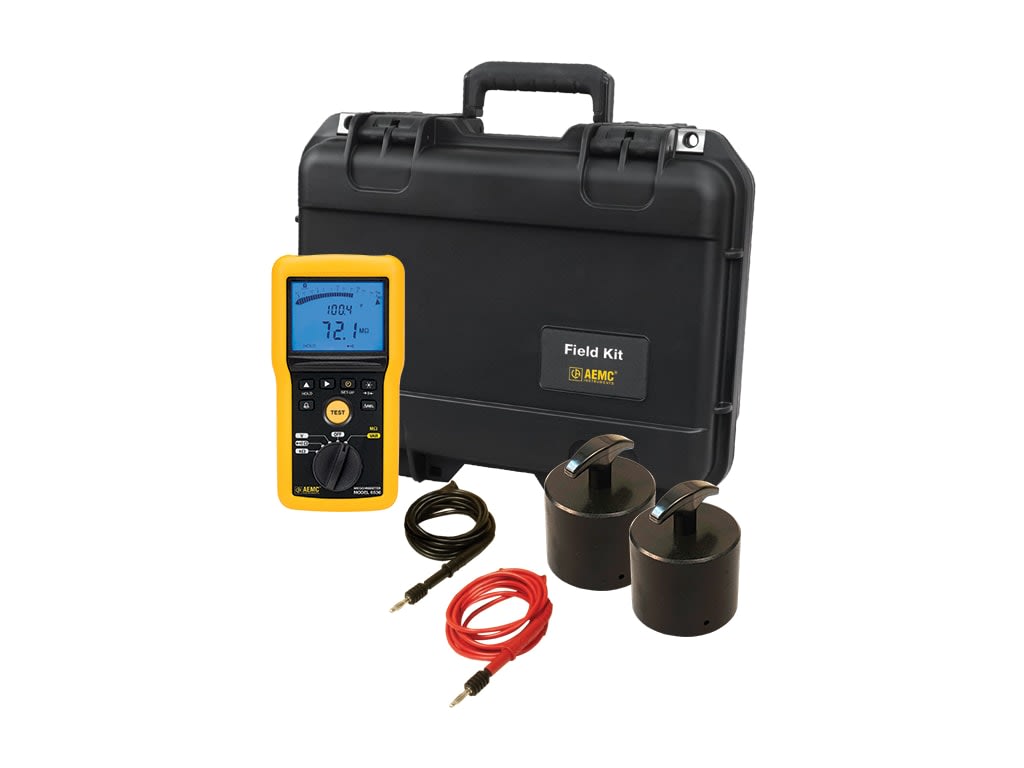

AEMC 6536 ESD Floor Kit – ESD Floor Kit Megohmmeter

• 6536 ESD Floor Kit Megohmmeter Model 6436
• True Megohmmeter
• 10 to 100V (variable) Insulation and Multi-Function Tester (Resistance, Continuity, and Voltage)
• Variable 10 to 100V (1V increments) Insulation Test Voltages
• 20GΩ Max Insulation Resistance

The Megohmmeter Model 6536 is a handheld, battery-powered, multi-function 100V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance, and Voltage. With a safety rating of 600V CAT IV and IP 54, the Model 6536 performs insulation resistance at a variable voltage between 10 and 100V with a 1V increment measuring insulation values up to 20GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. The Model 6536 includes a Timer and Lock function which allows the user to operate the unit hands-free.

An automatic safety check protects the user and meter with audiovisual signals and test inhibition when >25V is present on a test sample. Alarms function is also standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test.

Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. Optional ESD Floor Test Kit to test and verify flooring designed to control electrostatic discharge. The Model 6536 is designed for special applications where the voltage needs to be set accurately in 1V increments for testing.

Features

• Ohmmeter to 1000kΩ
• Auto discharge after Insulation Test
• Hold function to “freeze” readings
• Large and bright dual display with blue backlight
• Auto Standby Feature due to inactivity saves battery power
• Complies with International Insulation Testing Standards including IEC/EN 61557
• 600V CAT IV
• Optional Remote Probe accessory
• Optional ESD Floor Test Kit

Applications

• Insulation measurement on communication cables, Ethernet cables, and other low voltage AC and DC wiring
• Insulation measurement on electronic components and circuits
• Special applications in the aerospace and defense sectors where specified test voltages are required
• Cables, small motors, pumps, transformers, and industrial equipment
