Description
AEMC 8336 w/4 MN193-BK

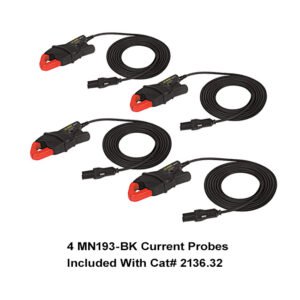

- PowerPad® III Model 8336 with 4 193-24-BK Probes (24″ Flex) rated to 6500A AC
- Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems
- Measurement of TRMS currents up to 6500Arms (sensor dependent)
- Direct measurement of neutral current & voltage
PowerPad III with 4 MN 193-BK Sensors

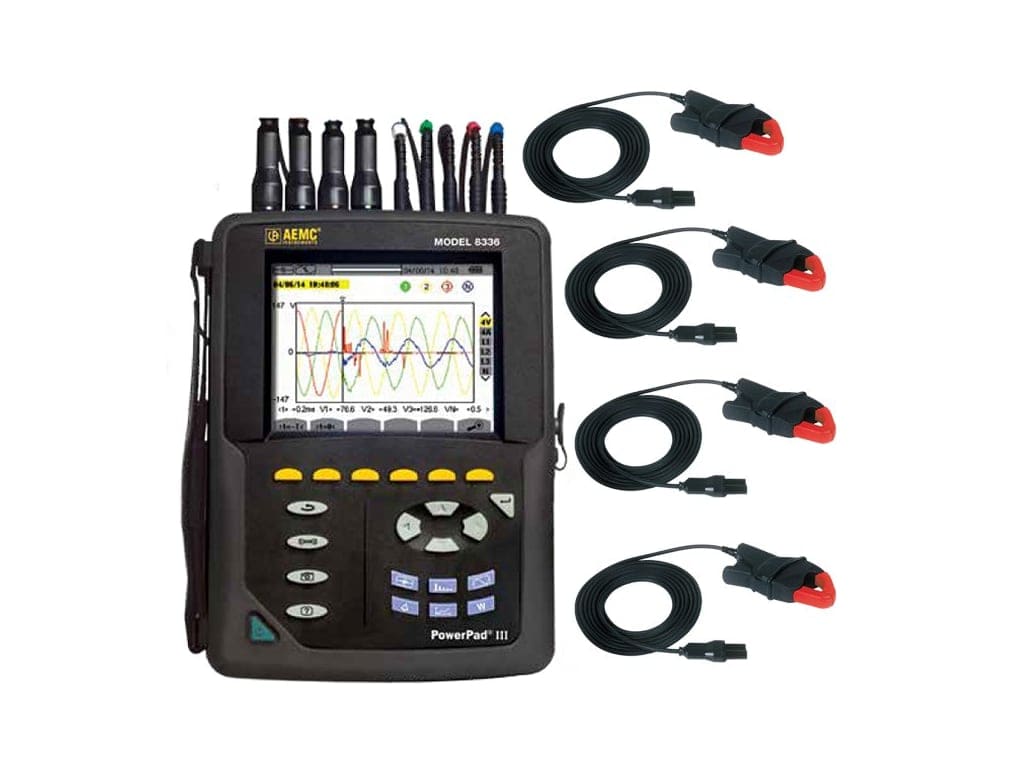

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.
Additional features
- Calculation of the K-Factor for transformers
- Calculation of short-term and long-term flicker
- Calculation of the Three-Phase voltage unbalance
- Harmonic measurements (referenced to the fundamental or RMS value) for voltage, current or power, up to 50th harmonic
- Displays of harmonic sequencing and direction and calculation of overall harmonics
- Real-time display of Phasor diagrams including values and phase angles
- Monitors the average value of any parameter, calculated for a period from 1 sec to 2 hrs
- Measurement of active, reactive and apparent power per phase and their respective sum total
- Calculation of power factor, displacement power factor and tangent factor
- Recording, time stamping and characterization of disturbance (swells, sags and interruptions, exceedence of power and harmonic thresholds)
- 2GB internal Trend Recording memory; Alarm, Photo and Transient Inrush memories are separate
- Measurement of energy VAh, VARh, Wh & VADh
- The Max and Min RMS measurements are calculated every half-period
- Includes FREE DataView ® software for configuring data storage, real-time display, analysis and report generation
- 65μs/sample trend recording
Applications
- Verification of power distribution circuits
- In-plant troubleshooting of power distribution panels and individual machinery
- Monitor pad mount transformers and phase unbalances
- Determine harmonic problems originating from source or load
- Determine transformer K-Factor
- Energy metering (kVAh, VARh, kWh)
Data Analysis and Reporting Software for Power Quality Meters
Configure all functions of the Power Quality Meters
- Display and analyze real-time data on your PC
- Configure functions and parameters from your PC
- Customize views, templates and reports to your exact needs
- Create and store a complete library of configurations that can be uploaded as needed
- Zoom in and out and pan through sections of the graph to analyze the data
- Download, display and analyze recorded data
- Display waveforms, trend graphs, harmonic spectrums, text summaries, transients, event logs and stored alarms
- Print reports using standard or custom templates you design
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| True Power / Work ( W) | Yes |
| Apparent Power (VA) | Yes |
| Reactive Power (VAR) | Yes |
| Current Input Channels | 1, 2, 3, 4 |
| Voltage Input Channels | 1, 2, 3, 4 |
| Measurement Frequency (Power Quality) | 50 Hz, 60 Hz |
| Display (Power Quality) | Graphical |
| Alarms | Yes |
| Transient Capture | Yes |
| Minimum Transient Duration | micro-seconds |
| Displays Waveform | Yes |
| Energy | Yes |
| Phasor Diagrams | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Maximum Harmonics Range | 50 |
| Current Clamps Included | No |
| Class A Compliant | No |
| Crest Factor | Yes |
| CAT Rating | III CAT Rating 1000V CAT III / 600V CAT IV |
| CAT Voltage Rating (V) | 1000V |
| GPS Location | No |
Product General Attributes | |
| Unique Features | Portable, multi-function |
| Warranty | 36 MONTHS (3 YEARS) |
| Warranty Details | By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years. |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory, SD Card |
| IP Rating | IP53 |
| Product Weight | 4.3 LBS |
| Product Height | 2.6 IN |
| Product Length | 9.8 IN |
| Product Width | 7.8 IN |
| Shipping Weight | 23.00 LBS |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | NimH |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | France |
