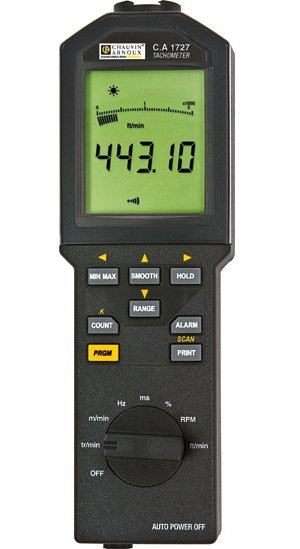

AEMC CA1727 – Infrared Tachometer
18 people are viewing this product right now
Original price was: $764.50.$726.27Current price is: $726.27.
Shipping calculated at checkout.
Estimated delivery:5 days
Tachometer Model CA1727
- CA1727 Infrared Tachometer
- Measurements up to 100,000 rpm
- Multiple of functions and automatic routines for data acquisition and storage: measurement of rotational speed, linear speed, count, frequency and period
- Extensive programming possibilities
- Digital display with analog bargraph
- USB interface for processing results on a PC
- Includes TachoGraph software on CD-Rom
- Stores up to 4000 measurements results
Guarantee Safe and Secure Payment Checkout
Description
AEMC CA1727
- Measurements up to 100,000 rpm
- Multiple functions and automatic routines for data acquisition and storage: measurement of rotational speed, linear speed, count, frequency, and period
- Extensive programming possibilities
- Digital display with analog bargraph
- Includes TachoGraph software on CD-Rom
- Stores up to 4000 measurements results
Infrared Tachometer

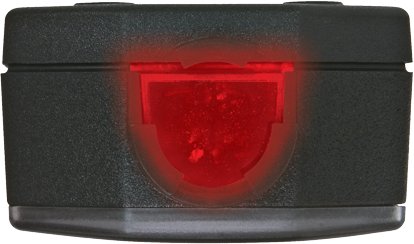

This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested. The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.
For traditional measurement with contact, a mechanical adapter (cylinder, cone, or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.
Applications: Measure rotation speed with or without contact
Reliability / Preventative Maint / Rotational/Tachometers Template | |
|---|---|
| Detection Type | Contact, Non-Contact Photo |
| Display (Tachometer) | LCD |
| Style of Tachometer | Handheld |
| Max Working Distance for Non-Contact | 50 CM (1.64 Ft) |
| Max RPM | 100000 RPM |
| Min RPM | 6 RPM |
| Measurement Modes | Average, Length, Maximum, Minimum |
| Accuracy for Tachmometers | .0001% of Reading +/- 6 pts |
| Triggers | Yes |
| Memory(Tachometers) | Yes |
| Housing | Plastic |
Product General Attributes | |
| Unique Features | • Measurements up to 100,000rpm • Multiple functions and automatic routines for data acquisition and storage: measurement of rotational speed, linear speed, frequency and period • Digital display with analog bargraph • Stores up to 4000 measurements results |
| Warranty | 12 MONTHS (1 YEARS) |
| Safety Approval | CE |
| IP Rating | IP51 |
| Product Weight | 0.55 LBS |
| Product Height | 1.85 IN |
| Product Length | 8.5 IN |
| Product Width | 2.83 IN |
| Shipping Weight | 12.00 LBS |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | France |
