AEMC JM810A – AC Current Probe (Lead – 1mA/A – 2000A max)
13 people are viewing this product right now
Original price was: $759.00.$721.05Current price is: $721.05.
Shipping calculated at checkout.
Estimated delivery:5 days
AC Current Probe Model JM810A (Lead – 1mA/A – 2000A max)
- Nominal range: 1 to 2000AAC (continuous cycle for the full temperature range)
- Transformation ratio: 2000:2
- Output: 1mA/A
- Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
Guarantee Safe and Secure Payment Checkout
Description

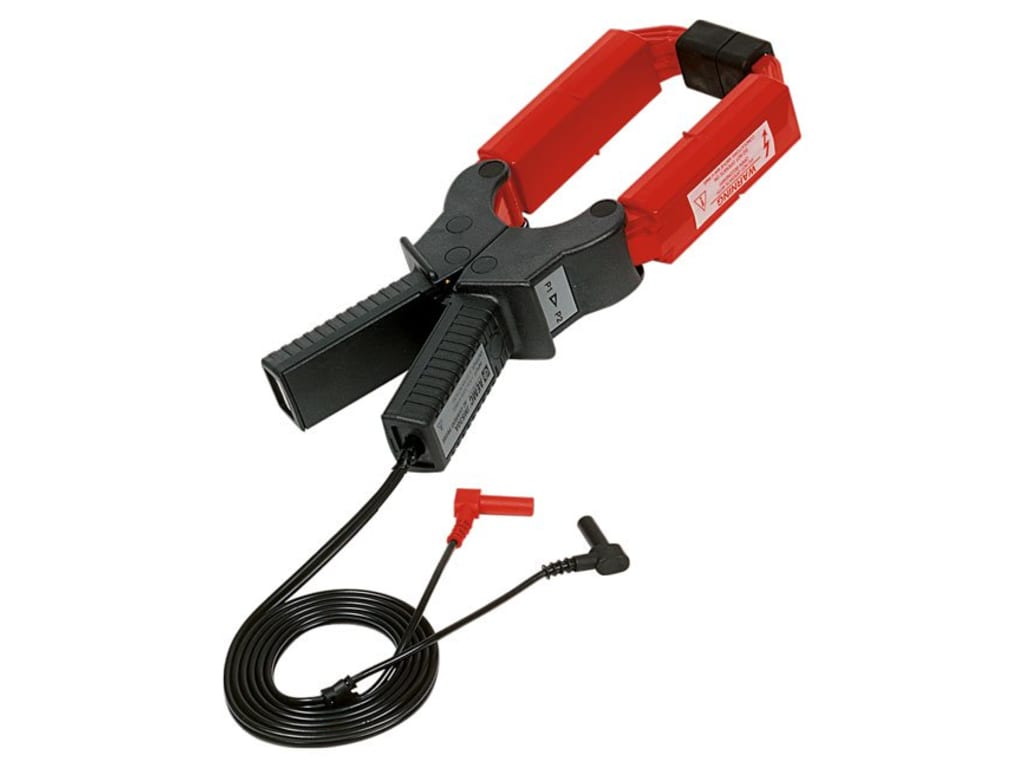

AEMC JM810A – AC Current Probe
- Transformation ratio: 2000:2
- Accuracy 50/60Hz: 0.5% @ 2000A
- Frequency Range: 30Hz to 5kHz
- Current Range: 2000AAC
- Measurement Range: 1 to 2000AAC
The Model JM810A is a high-performance AC current probe for higher currents. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current and power. The high-quality magnetic core and uniform windings provide for accurate measurements up to 2400AAC. The “squared” jaw permits multiple conductor or bus bar positioning. The Model JM810A provides excellent True RMS capabilities and reliable signal reproduction.
The Model JM810A works as a traditional current transformer providing current outputs (mA) over a broad range of transformation ratios.
The Model JM810A is designed for use on DMMs, power and harmonic meters, recorders, or instruments with AC current ranges.
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 2000 A |
| Maximum Conductor Size | 2.52 IN |
Product General Attributes | |
| Warranty | 12 MONTHS (1 YEARS) |
| Safety Approval | CE |
| IP Rating | IP20 |
| Product Weight | 2.65 LBS |
| Product Height | 4.72 IN |
| Product Length | 12.40 IN |
| Product Width | 1.89 IN |
| Shipping Weight | 9.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030908060 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | United States |
| UPC | 685338090024 |
You must be logged in to post a review.
Manuals/Guides
| Weight | 9 lbs |
|---|---|
| Dimensions | 12.4 × 1.89 × 4.72 in |
