AEMC L452 – 2-Channel Data Logger (100mV/1v/10VDC) with LCD, Event and Pulse, DataView Software

• Current and Voltage data logger (4-20mA, ±100mV, ±1V, ±10V) user selectable
• Event counter, dry contact closure and logical level (pulse) detection
• Real-time display of measurements
• Includes FREE DataView® software for data storage, real-time display, analysis & report generation
• Wireless Bluetooth communication

The L452 can log DC voltage, DC current, 4 to 20mA pulse counts, or events, using either one or two independent inputs. The L452 features an onboard menu-based interface for navigating measurement data and selecting configuration options. This Control Panel also enables users to change settings on the instrument, view real-time measurements, schedule recording sessions, and perform other configuration tasks.

Two-Channel DC Voltage, Current, Pulse & Event

The Model L452 is a low-cost, simple-to-use, two-channel data logger. It records DC voltage, DC current, pulses and events. Its two input channels allow the user to connect to various types of sensors in order to record data such as pressure, temperature, flow, humidity and more. This logger can also be used to record events such as machine run time. Each channel’s real-time measurement is displayed on the LCD screen.

The L452 communicates via USB or Bluetooth for configuration and data transfer to a PC. The unit can also be configured using its front panel with a very simple user interface. The menus are multilingual. Users can lock the keypad within the DataView software. Alarms can be set on various measurements. DataView software for data storage, real-time display, analysis, and report generation from a pre-defined or custom template is included. Its ergonomics make it simple to use. It has a magnetized rear panel or optional wall mount holster and desktop stand which facilitate mounting. The L452 operates on rechargeable batteries or can be powered from a USB cable.

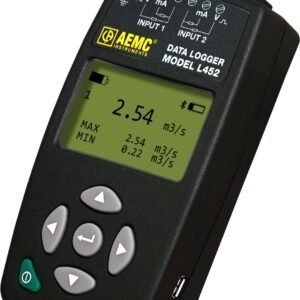

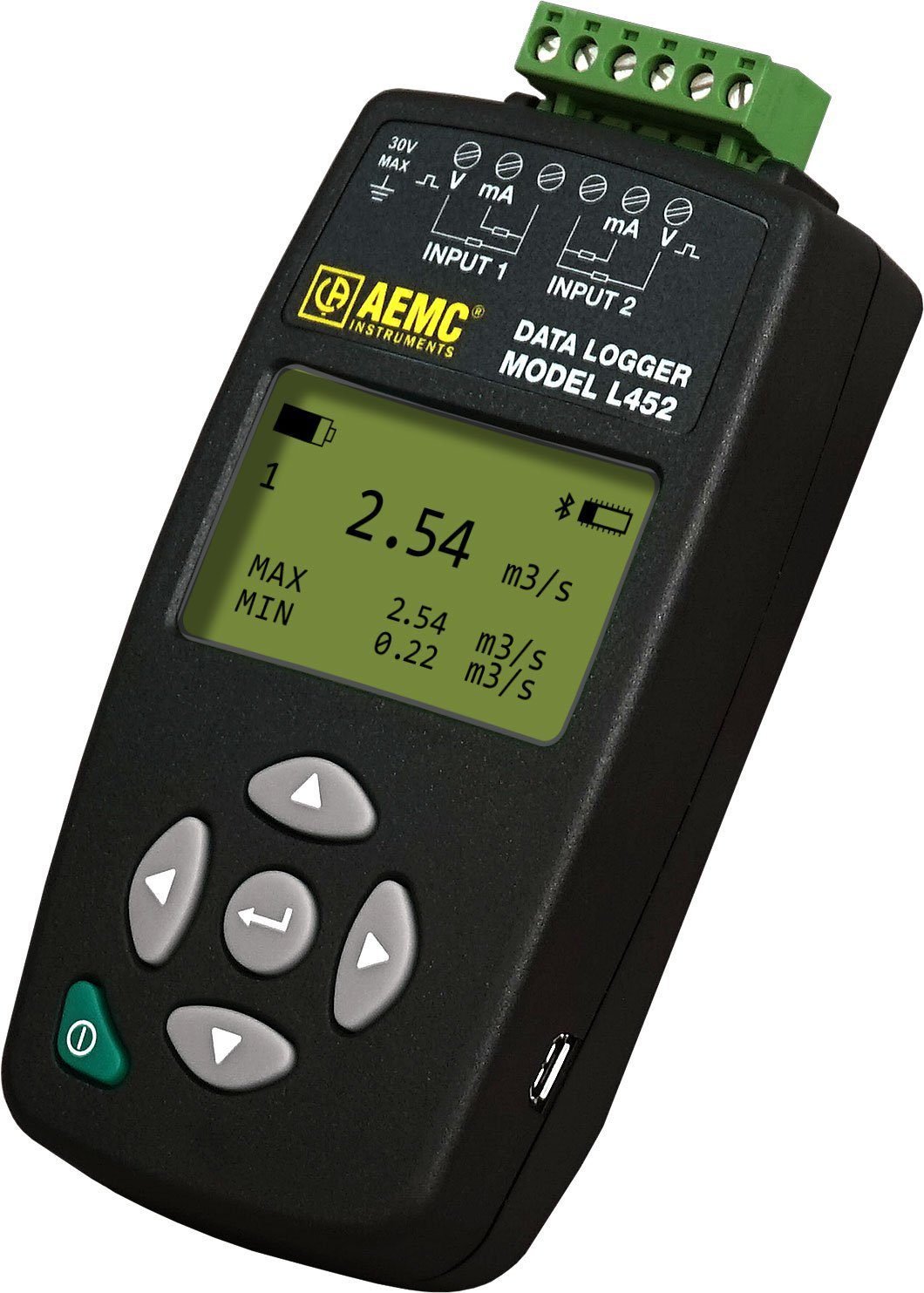

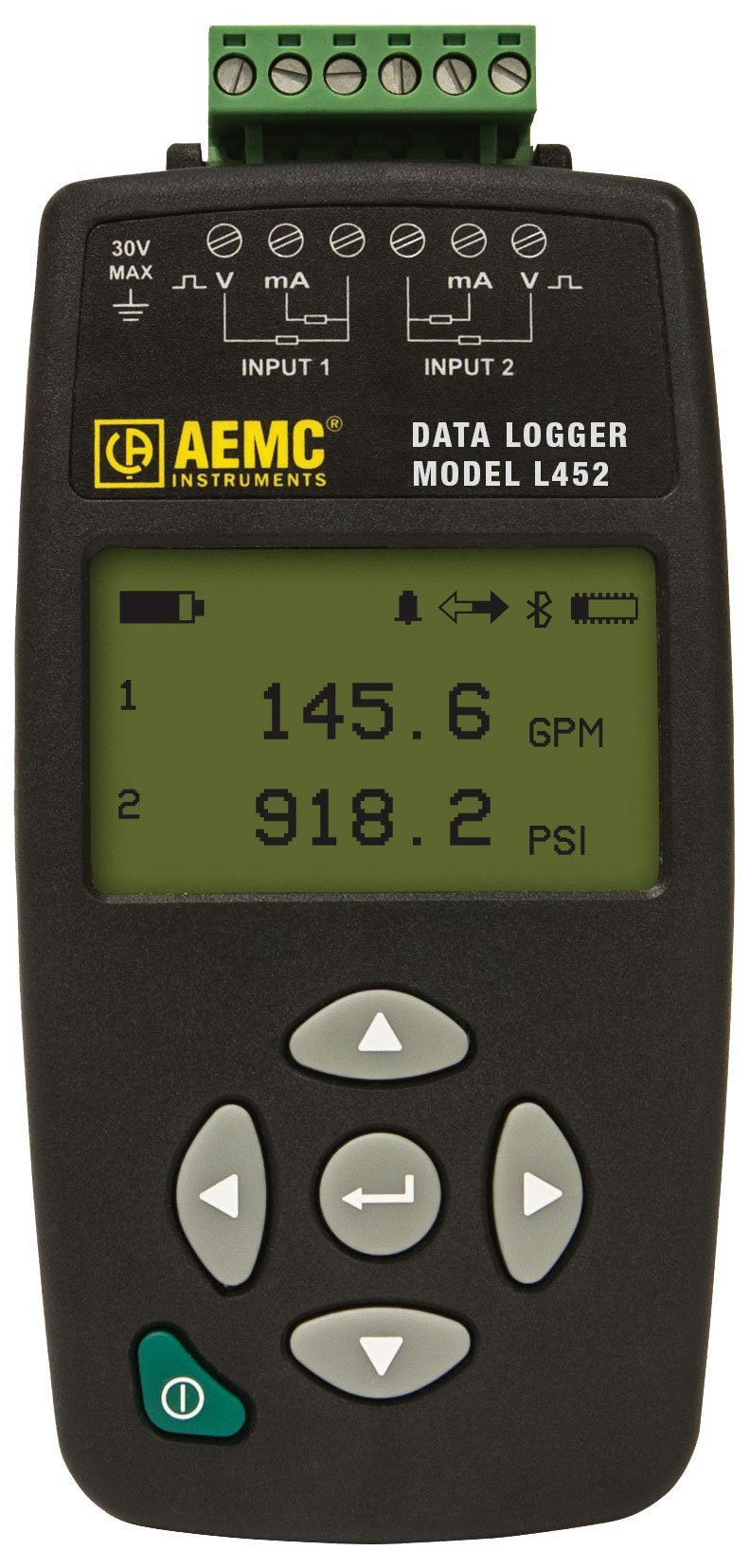

Front Panel & Functional Displays
