Description

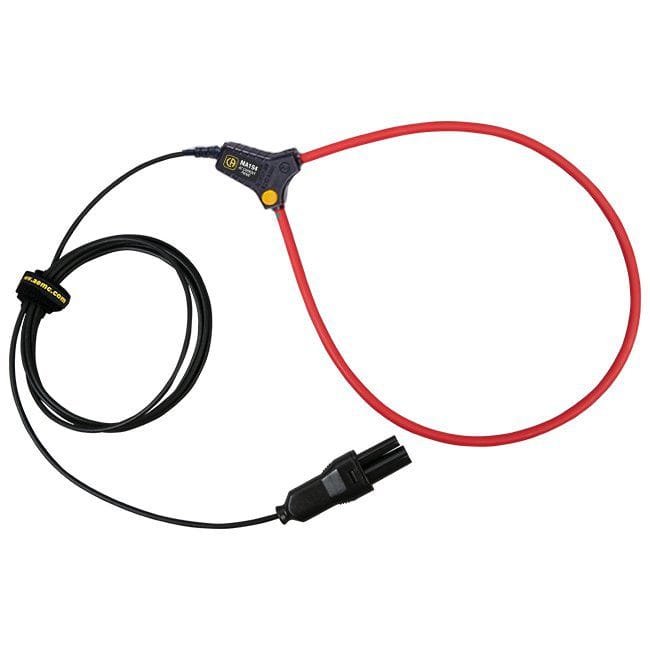

AEMC MA194-24-BK MiniFlex Sensor
The AEMC MA194-24-BK MiniFlex Sensor has a 24in the loop and a 10ft lead. The current range is up to 3000 A AC and is compatible with AEMC PowerPads and PELs (limited range models 8220, 8230, 8435).
The AEMC MA194-24-BK MiniFlex Sensor is the replacement for AEMC Instruments MA193-24-BK.
AEMC MA194-24-BK MiniFlex Sensor Specs:
TRMS Current / Accuracy:
- TRMS Current 10 A – 100 A (Accuracy on IRMS +/-3%; Accuracy on ɸ +/-1 degree)
- TRMS Current 100 A – 1000 A (Accuracy on IRMS +/-2%; Accuracy on ɸ +/-0.5 degree)
Max Conductor Size: 7.64in (194mm)
Safety: EN 61010-2-032, Pollution Degree 2, 600 V CAT IV, 1000 V CAT III
Product General Attributes | |
---|---|
Safety Approval | CE |
