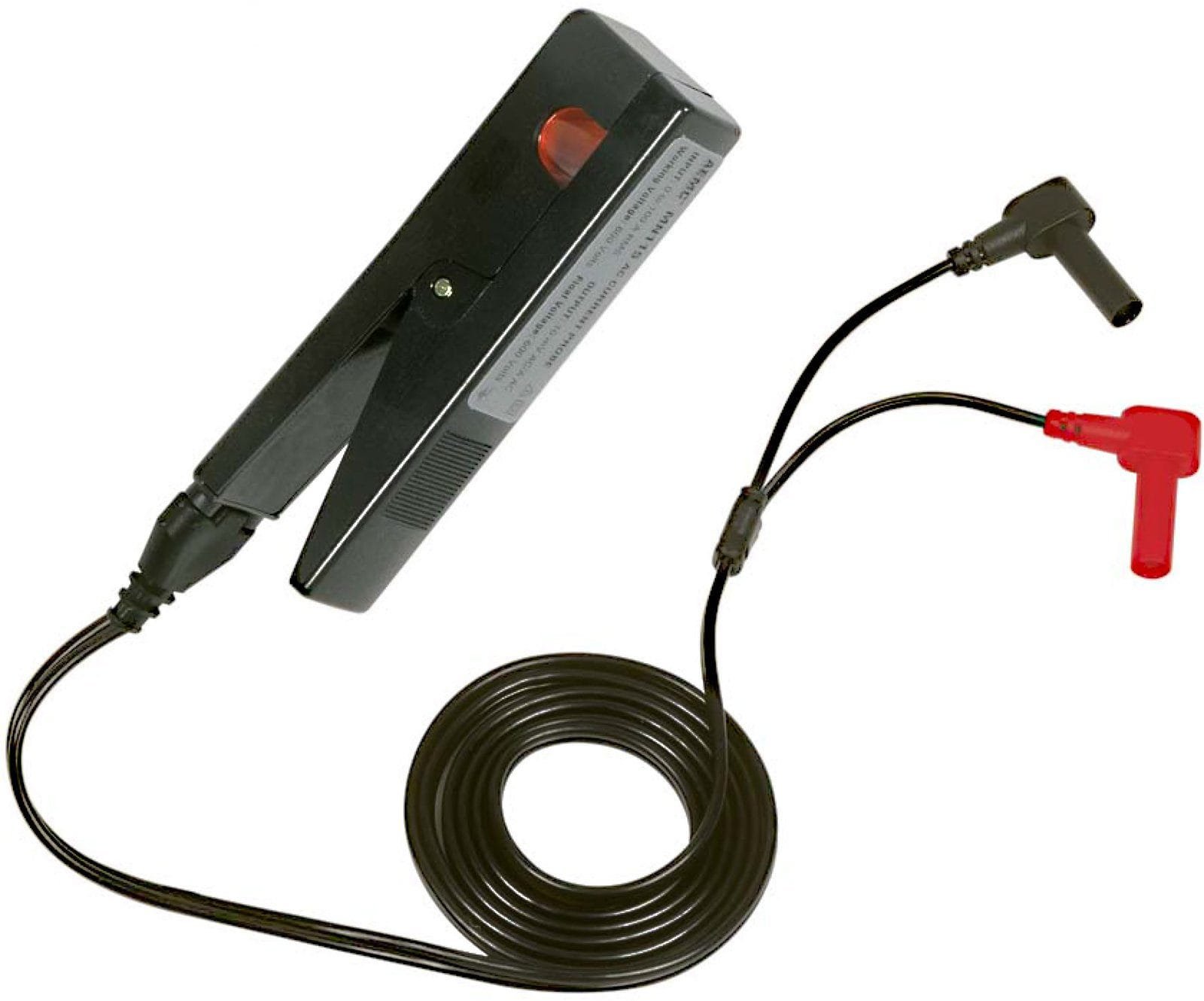

AEMC MN114 – AC Current Probe (Lead – 100mV/A – 10A max)
17 people are viewing this product right now
Original price was: $264.00.$250.80Current price is: $250.80.
Shipping calculated at checkout.
Estimated delivery:5 days
AC Current Probe Model MN114 (Lead – 100mV/A – 10A max)
- 100mV/A-10A Lead AC Current Probe
- Small, compact and very tough AC probes
- Measurements from 1mA to 10A AC
- Excellent companion to all DMMs
- Permits very low AC current measurements
- Clothespin shape makes them ideal for tight areas, such as breaker panels/controller panels/outlets
Guarantee Safe and Secure Payment Checkout
Description
AEMC MN114
- 100mV/A-10A Lead AC Current Probe
- Small, compact, and very tough AC probes
- Clothes pin shape makes them ideal for tight areas, such as breaker panels/controller panels/outlets
- Measurements from 1mA to 10A AC
- An excellent companion to all DMMs
- Permits very low AC current measurements
AC Current Probe (Lead – 100mV/A – 10A max)
Small, compact, and very tough, the Model MN114 is designed for measurements from 1mA to 10AAC. The “clothes pin” shape makes it ideal for use in tight areas, such as breaker panels, controller panels, or outlets. They are excellent companions to all DMMs.
The Model MN114 provides a voltage output proportional to the measured current (100mV/A). This voltage output enables instruments with AC voltage ranges to measure, display or log currents. Model MN114 permits True RMS measurements when used with a True RMS instrument.
The Model MN114 is designed to optimize measurements on 5A signals.
Applications:
- Electrical utility
- HVAC
- Industrial maintenance
- Laboratory
- Plant maintenance
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 10 A |
| Maximum Conductor Size | 0.47 IN |
Product General Attributes | |
| Warranty | 12 MONTHS (1 YEARS) |
| Product Weight | 0.38 LBS |
| Product Height | 1.26 IN |
| Product Length | 4.5 IN |
| Product Width | 0.87 IN |
| Shipping Weight | 6.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030908060 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | United States |
| UPC | 685338030235 |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 6 lbs |
|---|---|
| Dimensions | 4.5 × 0.87 × 1.26 in |
