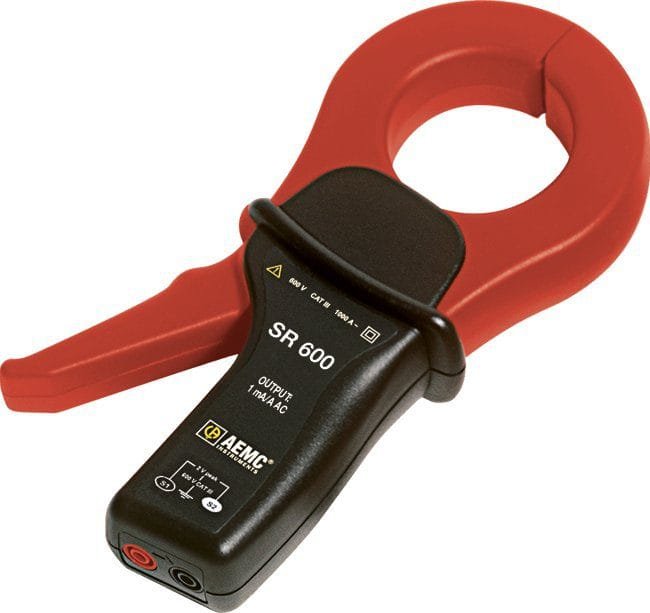

AEMC SR600 – AC Current Probe (Jack – 1mA/A – 1000A max)

• Measurement range of 100mA to 1200AAC
• Large jaw opening accommodates conductors up to two 500MCM conductors
• Ergonomic design and easy operation
• Conforms to EN 61010, 600V Cat. III safety standard
• Low phase shift for power measurements

The SR600 is a general-purpose 1000AAC current probe designed for use with DMMs, loggers, and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR600 has a jack output termination that accepts 4mm banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift are important.

The Model SR600 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved.

Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high-quality magnetic cores and uniform windings provide sensitivity for very low-level current measurements, as well as measurements up to 1200AAC. The Model SR600 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power, and harmonic meters, data loggers, recorders, or instruments with current ranges.

Applications

• Power quality measuring
• Low industrial loads
• Measuring around cable bundles
• Power load monitoring
• Waveform analysis
