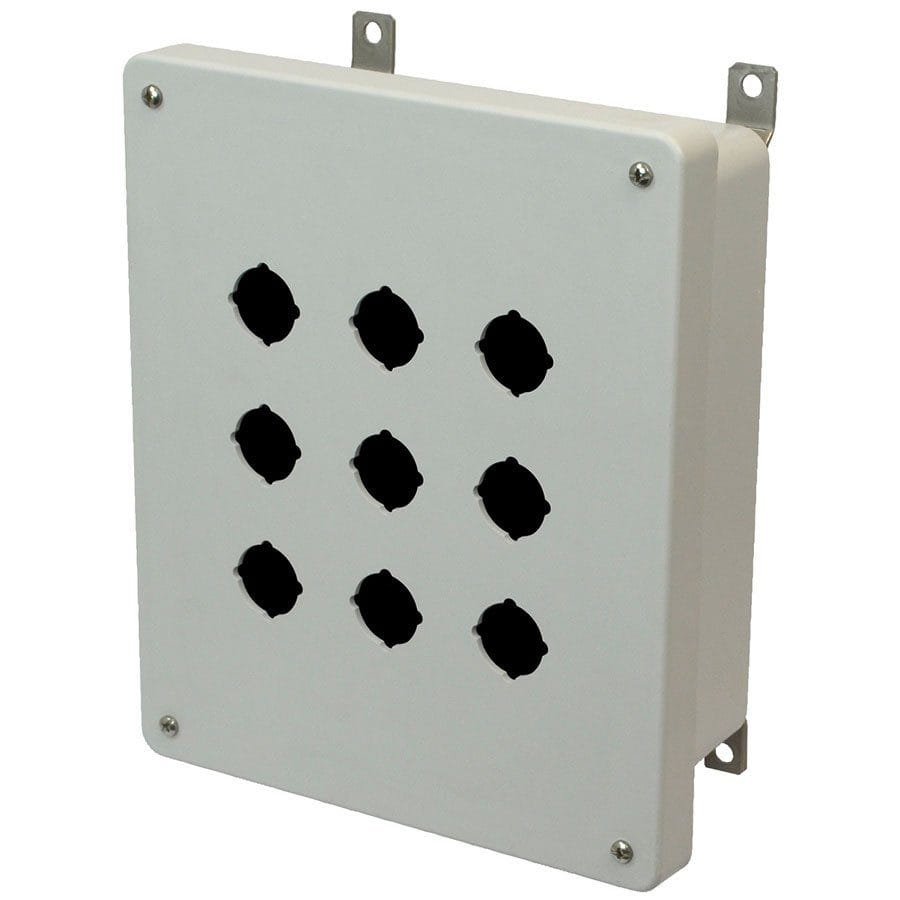

Allied Moulded AM1084P9 Lift-Off 4-Screw Solid/Opaque Cover (30.5 mm PB Hole Size)

• 10″ x 8″ x 4″ Fiberglass Enclosure
• With Multi-Hole Pushbutton Lift-Off Screw Cover
• Light weight with lower installation cost
• Easy to modify and longer life cycle compared to steel

AM Series boxes are designed to insulate and protect controls and components in both indoor and outdoor applications and are especially well suited for high temperature or corrosive environments. They feature flat covers with a variety of latching options that allow you to provide the level of security or ease of access needed for each application. The AM Series offers a wide variety of sizes and configurations, including Small junction boxes, Inline pushbutton enclosures in one, two, or three hole configurations and two hole sizes, Standard JIC size enclosures.

Additional Materials

• 316 stainless steel external hardware (hinges, latches and fasteners)
• 316 stainless steel mounting brackets
• Plated carbon steel internal hardware
• Brass inserts
• Polyurethane (FIP) Formed-In-Place gasket system

Standards

• UL Types 1, 2, 3, 4, 4X, 12, and 13
• CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• IEC 60529 Type IP66
• Compliant with RoHS directive (Restriction of Hazardous Substances)

Construction

• Strong, molded Ultraguard® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• 10-32 threaded inserts are installed for optional back panel
• JIC sizing
• Ultraguard® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
