Allied Moulded AM1084R 10x8x4 Fiberglass JIC Enclosure with Lift-Off 4-Screw Solid/Opaque Cover
21 people are viewing this product right now
Original price was: $108.85.$89.42Current price is: $89.42.
Shipping calculated at checkout.
Estimated delivery:5 days
10x8x4 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR
- Molded ULTRAGUARD® fiberglass reinforced polyester (FRP) material construction for durability
- Continuous 316 stainless steel hinge
- Formed-In-Place (FIP) polyurethane gasket system
- Matching raised cover
- 316 stainless steel hardware and mounting feet
- Mounting panel inserts for optional back panel
- UV stabilized for outdoor use
- Non-corrosive
- Non-conductive
- Standard RAL 7035 light gray color
- Temperature-resistant
- Fire-resistant
- Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
- UL® listed
- CSA certified
- Compliant with RoHS directive
Guarantee Safe and Secure Payment Checkout
Description

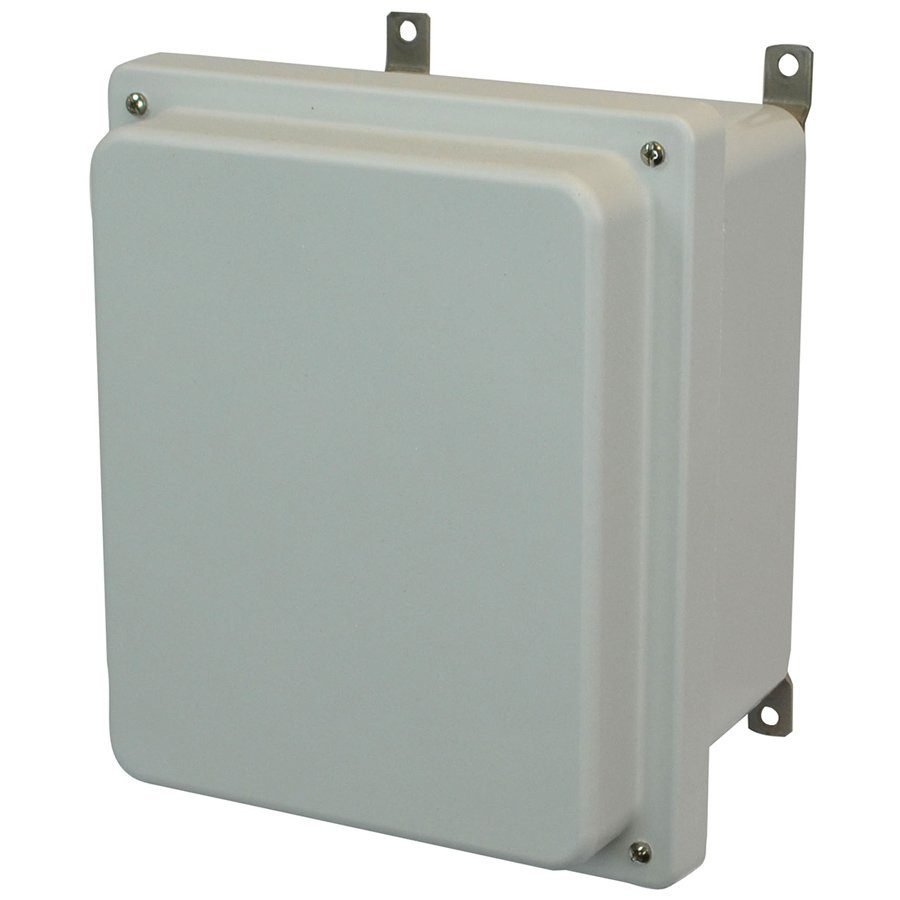

Allied Moulded AM1084R Fiberglass JIC Enclosure
- 10″ x 8″ x 4″ JIC Fiberglass Enclosure
- With Lift-Off 4-Screw Solid/Opaque Cover
- Formed-In-Place (FIP) polyurethane gasket system
- 316 stainless steel hardware and mounting feet
The AM-R Series offers the same sizes and options as our AM series, with the added feature of a raised cover. The cover adds an additional 1-3/4″ of depth to accommodate switches and other devices and can be used with an optional hinged front panel (HFP) for maximum configuration flexibility within a single enclosure.
AM-R Series enclosures insulate and protect controls and components in both indoor and outdoor applications, including high temperature and/or corrosive environments. Available in standard JIC sizes with a variety of latching options for any application.
- Molded Ultraguard® fiberglass reinforced polyester material construction for durability
- Continuous stainless steel hinge
- Closed-cell neoprene gasket encased in a continuous channel
- Raised cover for additional depth
- 304 stainless steel hardware and mounting feet
- Mounting panel inserts for optional back panel
- Optional hinged deadfront panels
- UV stabilized for outdoor use
- Continuous stainless steel hing
Product General Attributes | |
|---|---|
| Product Height | 7.00 IN |
| Product Length | 13.00 IN |
| Product Width | 11.00 IN |
| Shipping Height | 7.00 IN |
| Shipping Length | 13.00 IN |
| Shipping Width | 11.00 IN |
You must be logged in to post a review.
| Dimensions | 13 × 11 × 7 in |
|---|
