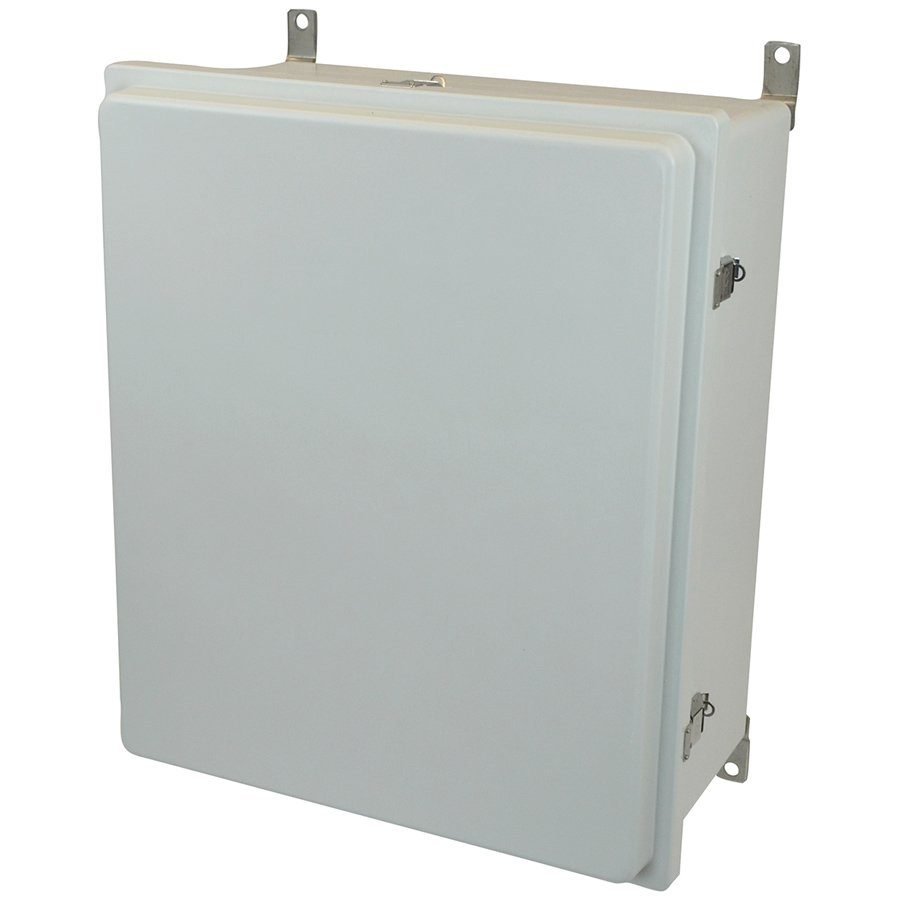

Allied Moulded AM24200RL 24″x20″x10″ 4X Fiberglass Control Enclosure
41 people are viewing this product right now
Original price was: $802.83.$659.52Current price is: $659.52.
Shipping calculated at checkout.
Estimated delivery:3 days
24x20x10 NEMA 4X FBRGLS ENCL RAISED QUICK-RELEASE LATCH HINGED CVR
- 24″x20″x10″ NEMA 4X Fiberglass Control Enclosure Raised Quick-release Latch Hinged Cover
- Molded ULTRAGUARD® fiberglass reinforced polyester material construction for durability
- One-piece body construction provides added dimensional stability
- Raised cover for additional depth
- 316 series stainless steel hardware and mounting feet
- Mounting panel inserts for optional back panel
- Optional Hinged Front Panel
- UV stabilized for outdoor use
- Temperature-resistant
Guarantee Safe and Secure Payment Checkout
Description
Allied Moulded AM24200RL 24″x20″x10″ 4X Fiberglass Control Enclosure
- 24″ x 20″ x 10″ Fiberglass Enclosure
- With Quick-release Latch Hinged Cover
- 316 series stainless steel hardware and mounting feet
- One-piece body construction provides added dimensional stability
Control Series enclosures insulate and protect controls and components against the toughest elements in the harshest environments. Available in popular larger sizes and depths and with standard stainless steel hinges and latches.
The larger Control Series offers standard features as well as full-panel access and all usable panel space. In addition, the standard grey cover is available with or without a full-length polycarbonate viewing window. Other options include removable aluminum hinged front panel and back panels.
Application
- Designed to insulate and house electrical and electronic controls, instruments or components for indoor and outdoor applications
- Especially well suited for high temperature or corrosive environments
- Protects from dirt, dust, oil and water
Standards
- UL Types 1, 2, 3, 4, 4X, 12, and 13
- CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
- NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
- IEC 60529 Type IP66
- Compliant with RoHS directive (Restriction of Hazardous Substances)
Construction
- Strong, molded Ultraguard® fiberglass reinforced polyester material construction with matching raised cover
- UV resistant polycarbonate viewing window
- 300 series stainless steel snap latches feature padlock hasp
- Continuous 300 series stainless steel hinge
- Gasket made of closed-cell neoprene cord encased in a continuous channel
- 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
- 10-32 threaded inserts are installed for optional back panel
- JIC sizing
- Ultraguard® fiberglass material is easily punched, drilled or sawed
- UV stabilized for outdoor use
Product General Attributes | |
|---|---|
| Product Height | 13.00 IN |
| Product Length | 29.00 IN |
| Product Width | 25.00 IN |
| Shipping Weight | 25 LBS |
| Country of Origin | United States |
| Shipping Height | 13.00 IN |
| Shipping Length | 29.00 IN |
| Shipping Width | 25.00 IN |
You must be logged in to post a review.
| Dimensions | 29 × 25 × 13 in |
|---|
