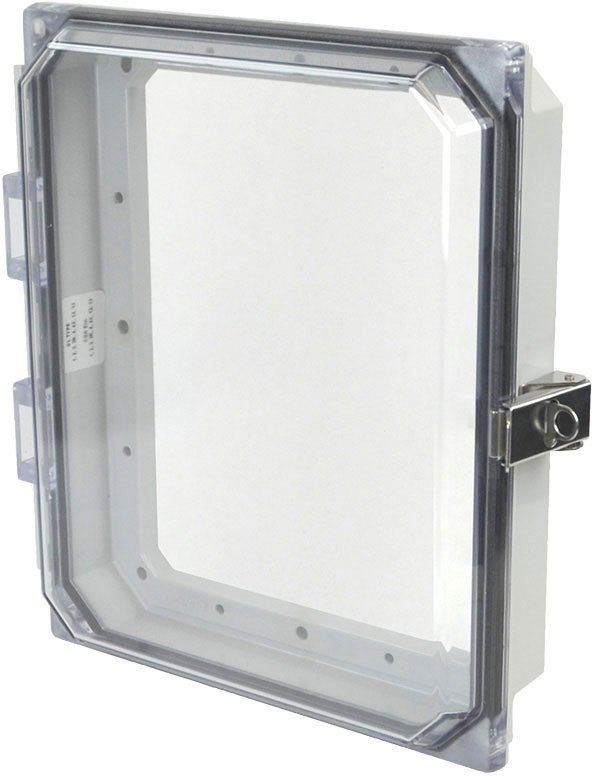

Allied Moulded AMHMI108CCL 10″x8″ HMI Cover Kit with Hinged Clear Cover and Stainless-Steel Snap Latch

Allied Moulded AMHMI108CCL 10″x8″ HMI Cover Kit with Hinged Clear Cover and Stainless-Steel Snap Latch

• HMI size: 10″x8″
• Closure type: Metal snap latch
• Cover type: Clear polycarbonate
• UL recognized component for use with NEMA 4X enclosures

The cover kits feature a strong and rigid design and are well suited for a variety of indoor or outdoor applications. They are UL listed and come standard with multiple cover latching options, and are available in solid opaque or polycarbonate thermoplastic clear covers for easy component visibility. Optional prop arms secure the cover kit in the “open” position, and allow for easy access to electrical components.


Standards

• Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A
• UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with:
  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Application

• Ideal for covering and protecting instruments or electronics through an enclosure wall, while maintaining all applicable standards and classifications
• No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards
• Includes mounting hole pattern for easy cover kit installation
• Protects from UV, dirt, dust, oil and water

Construction

• Clear polycarbonate thermoplastic, or polycarbonate for opaque covers 316 stainless steel external cover latching hardware and hinge pin
• 316 stainless steel snap latches feature padlock hasp (3/8″)
• UV stabilized for outdoor use
• Formed-In-Place (FIP) polyurethane gasket in continuous channel
• Designed for use with wall thicknesses ranging from 16 gauge through 1/4″
• #10-32 threaded brass inserts with plated steel mounting fasteners
