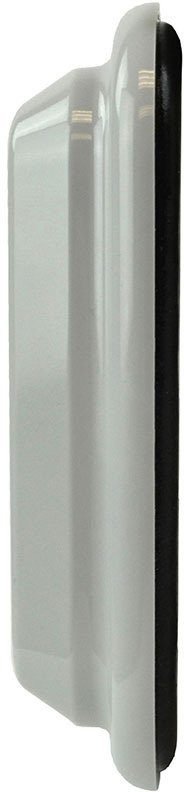

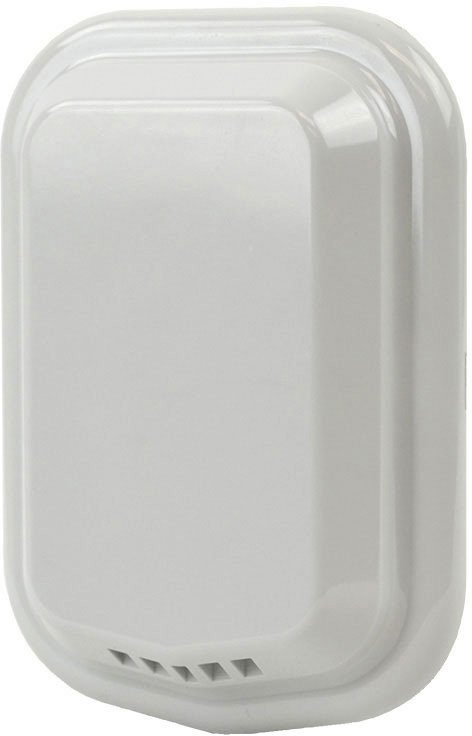

Allied Moulded AMVENT4XLG NEMA 4X Enclosure Ventilation Kit

• Protects from rain and hose-directed water spray
• Designed for use with wall thicknesses from 16 gauge through 1/4″
• Innovative baffles allow airflow to reduce condensation and heat within enclosure

The Allied Moulded AMVENT4XLG NEMA 4X Enclosure Ventilation Kit is the proper ventilation for an electrical enclosure that can help ensure the critical electronic components housed in the enclosure operate continuously and efficiently. After all, enclosures are found in many environments around the world – from salty coastal areas to humid factories to frozen tundras; keeping the components working on the inside, in any type of environment, is integral to the enclosure system.

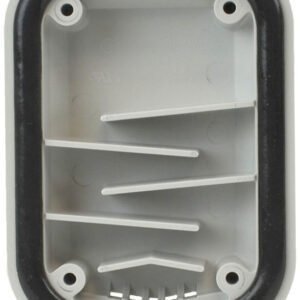

Allied Moulded has developed a ventilation kit that maintains the enclosure’s NEMA Type 4X rating. With a formed-in-place (FIP) polyurethane gasket and 316 Stainless Steel screws, the ventilation kit attaches securely to the side of any enclosure. The series of baffles on the inside creates an airflow pattern that allows air to pass freely from inside the enclosure to the outside environment, thus reducing heat and condensation on the inside.

Standards

• Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A
• UL® listed and CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13

Application

• Enclosure accessory meant for free flow of air through enclosures to aid in venting/cooling equipment housed inside
• Sold in pairs for best installed ventilation results
• UL listed enclosure accessory when installed on a smooth flat enclosure surface
