Alluris FMT-W30K1 – Manual Pull Tester, 1000N, 1N Resolution

• 1000N Capacity F(nom)
• 1N Resolution
• Test of wire terminals according to IEC, DIN, EN, BS, UL, SAE, MIL and NASA standards
• Space-saving and non-slip benchtop instrument with hardened scratch-resistant base plate
• Always operable due to independent power supply, low cost of ownership

The manual pull-tester is a rugged, hand-lever bench-top tool designed to determine the tensile strength of all solderless (crimped) cable connections. The measuring range of 500 N or 1000 N covers cable cross-sections from 0.06 to 6.0 mm² (AWG 30 to 8).

The ergonomic construction with a heavy base plate made of surface-treated, nitrided steel is designed for non-slip use.

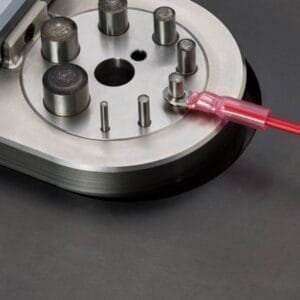

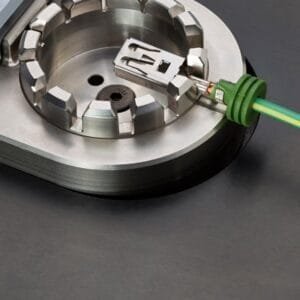

In the test specimen holder, there is a changeable adapter with 12 different slit widths from 0.5 to 6.0mm, which covers all common cable thicknesses. Other adapters are available as accessories.

Using the USB interface, the test data in MsExcel can be easily managed and in just a few minutes, a complete test report with statistical evaluation can be created as a PDF file.
