Amblyonix 1010WR – Winding Resistance Ohmmeter, 10A
19 people are viewing this product right now
$6,995.00
Shipping calculated at checkout.
Estimated delivery:5 days
Winding Resistance Ohmmeter, 10A
- Output Current: 10A, 5A, 1A, 100mA, 10mA, 1mA
- 5.6-inch Super-Industrial, color LCD
- Broad resistance measurement range
- Temperature compensated measurements
- Input/output circuit protection
- Adaptive rechargeable lithium battery
- External 100V-240VAC 50/60Hz charger
- Adjustable tilt-bale for convenient viewing angle
- 1-year parts and labor warranty
Guarantee Safe and Secure Payment Checkout
Description
Amblyonix 1010WR
- Output Current: 10A, 5A, 1A, 100mA, 10mA, 1mA
- 5.6-inch Super-Industrial, color LCD
- Broad resistance measurement range
- Temperature compensated measurements
- Input/output circuit protection
Winding Resistance Ohmmeter, 10A

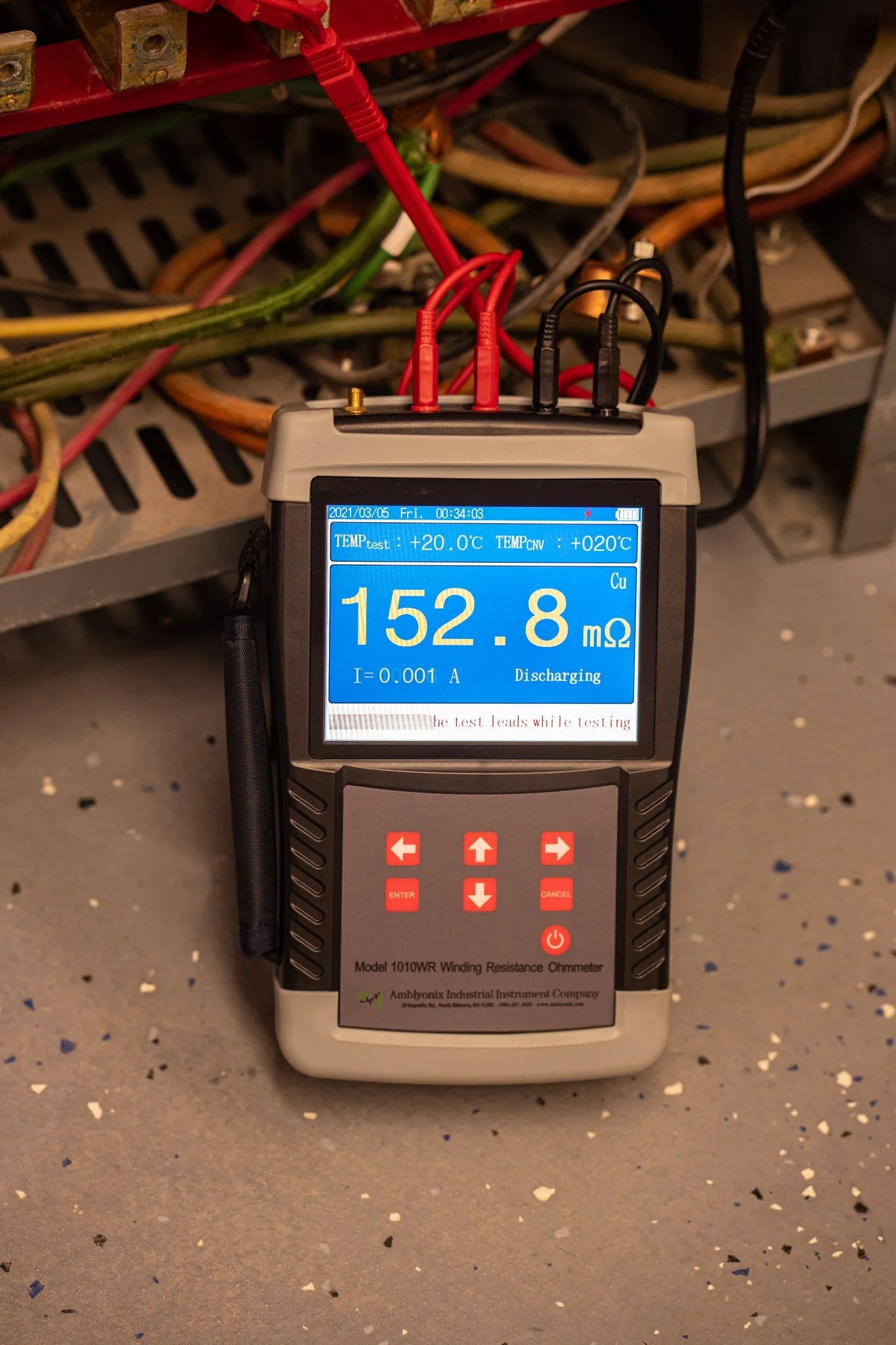

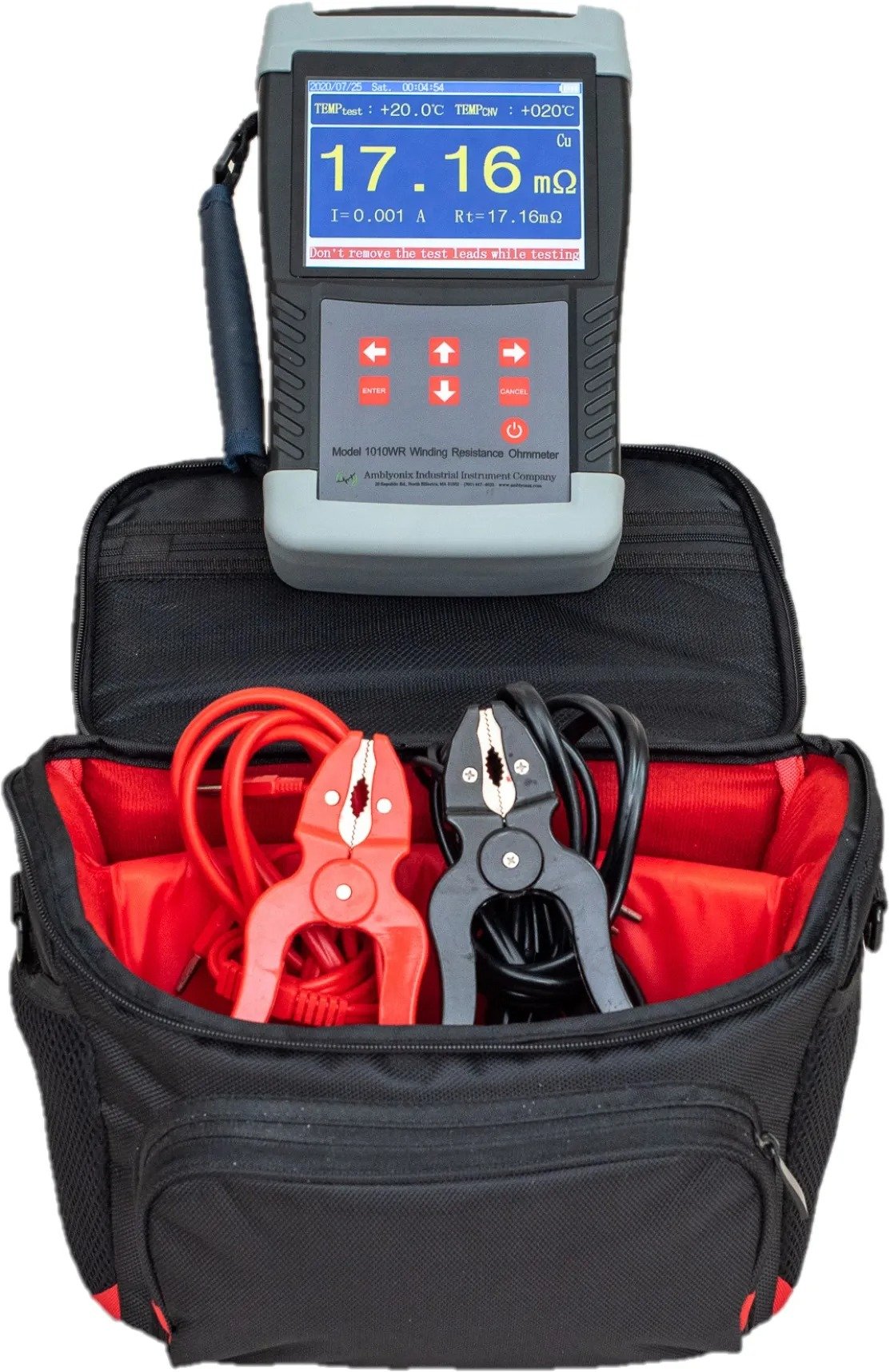

Winding resistance measurements are quick and easy to perform using the Amblyonix Amblyonix 1010WR Winding Resistance Ohmmeter. Compact, light-weight, and battery-operated, the 1010WR is designed to provide years of rugged, portable service. Six output current ranges support a broad range of resistance measurements. Readings can be temperature compensated and stored or exported for further analysis. Equipped with a 5.6-inch super-industrial, high-intensity, color liquid-crystal display, measurements are clearly visible under strong sun-lit conditions. After a single charge, hundreds of continuous measurements can be performed.
10WR Series Comparison Table
| Model Number | Output Current | Measurement Range | Accuracy | Relative Humidity | Communications |
| Amblyonix1010WR | 10A, 5A, 1A, 100mA, 10mA, 1mA | 0 to 50KΩ | 0.2% rdg +2 digits | ≤90% non-condensing | N/A |
| Amblyonix1051WR | 20mA, 100mA, 200mA, 1A, 2A, 5A, 10A, 20A, 50A, and Automatic Output | 0 to 20kΩ | 0.2% of reading, ±0.1μΩ | ≤80%RH non-condensing | USB, Dual RS485 |
| Amblyonix1053WR | 20mA, 100mA, 200mA, 1A, 2A, 5A, 10A, 20A, 50A, and Automatic Output | 0 to 20kΩ | 0.2% of reading, ±0.1μΩ | ≤80%RH non-condensing | USB, Dual RS485 |
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Style (Micro-Ohmmeter) | Portable |
| Maximum Test Current | 10 A |
| Variable Test Current | Yes |
| Max Resolution (Hz) | 0.1 mHz (milihertz) (0.0001 u Ohms) |
| Min Resistance | 0 Ohms (0 m Ohms) |
| Max Resistance (ohm) | 50 K Ohms (50000 Ohms) |
| Temperature Compensation | Yes |
| Line Power or Battery power | Battery Power |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | All products are covered with 1-year parts and labor warranty. |
| Product Weight | 3.5 LBS |
| Product Height | 2.45 IN |
| Product Length | 9.7 IN |
| Product Width | 6.2 IN |
| Battery Type | Other |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 9.7 × 6.2 × 2.45 in |
