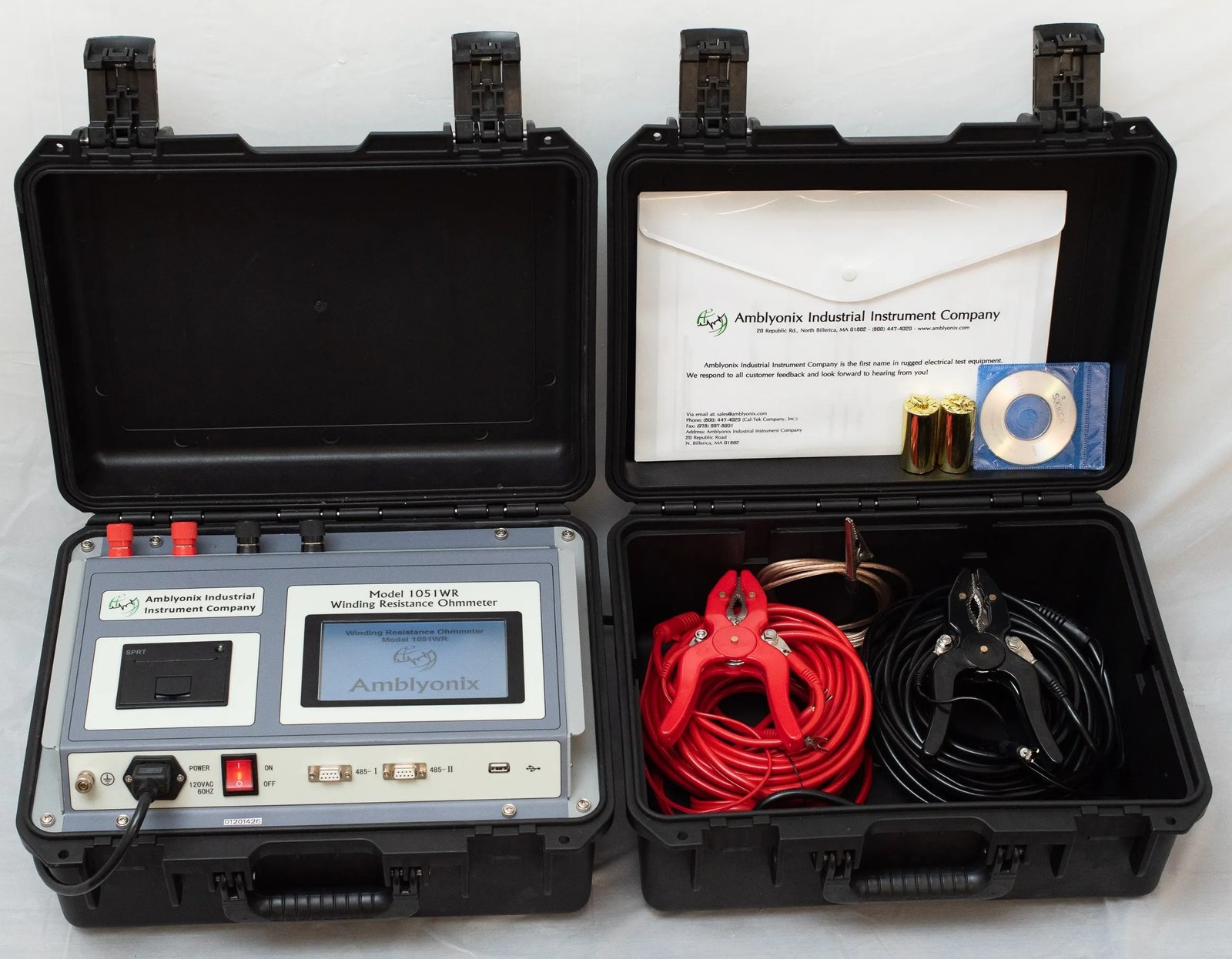

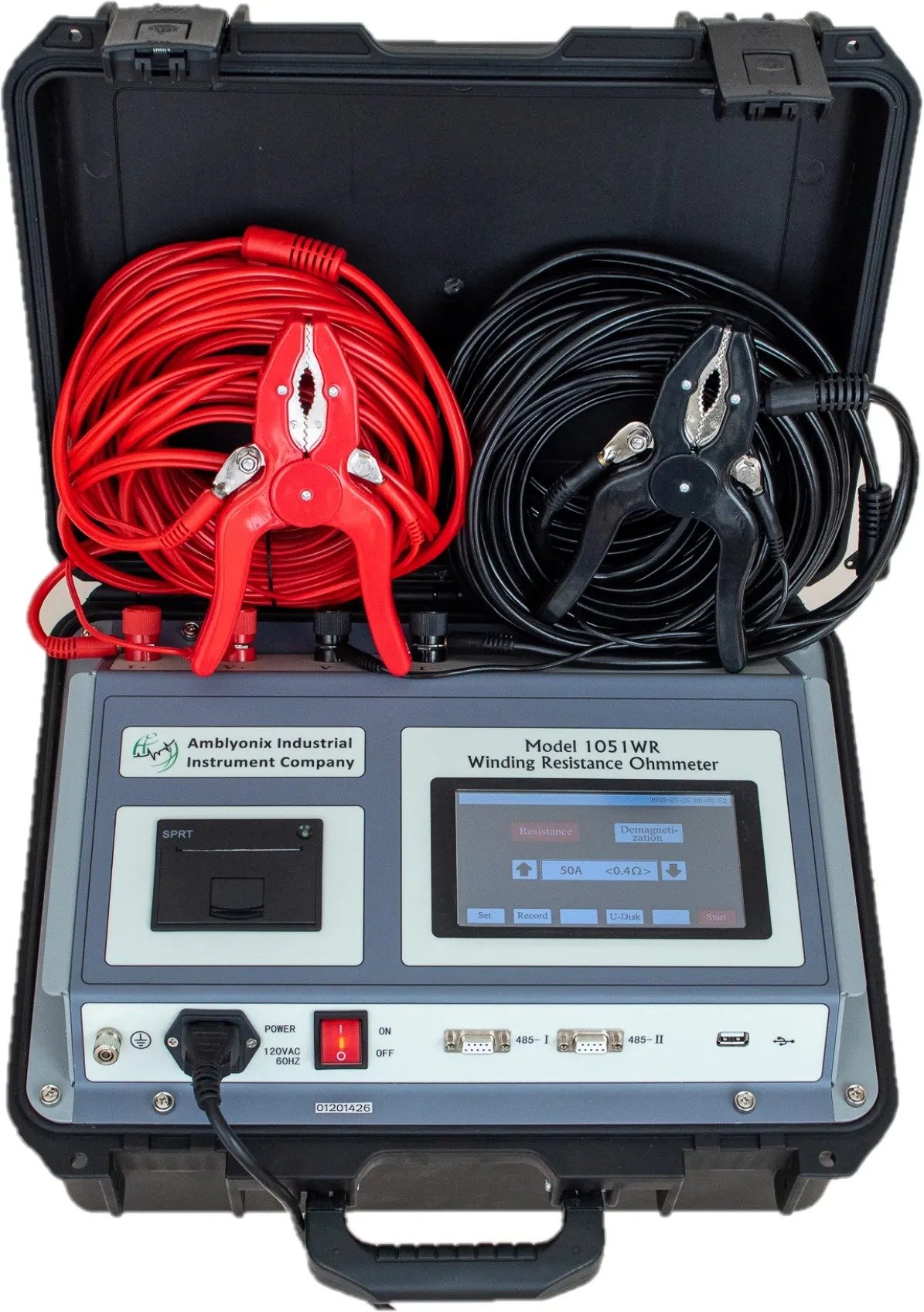

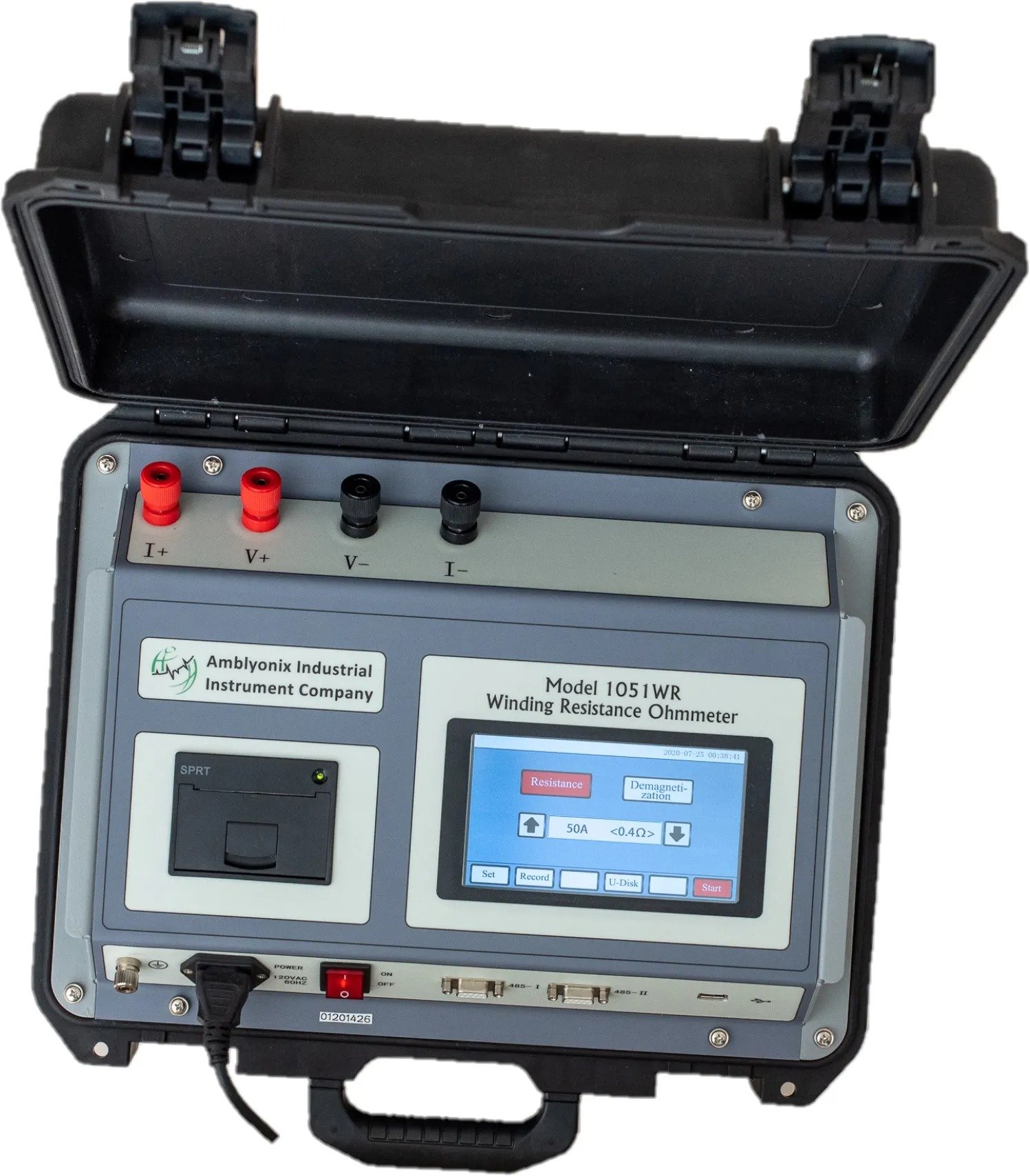

Amblyonix 1051WR – Winding Resistance Ohmmeter, 50A
42 people are viewing this product right now
$14,995.00
Shipping calculated at checkout.
Estimated delivery:5 days
Winding Resistance Ohmmeter, 50A
- Fixed and automatic current output from 20mA to 50A
- 5.6-inch Super-Industrial, color LCD
- Broad resistance measurement range
- Temperature compensated measurements

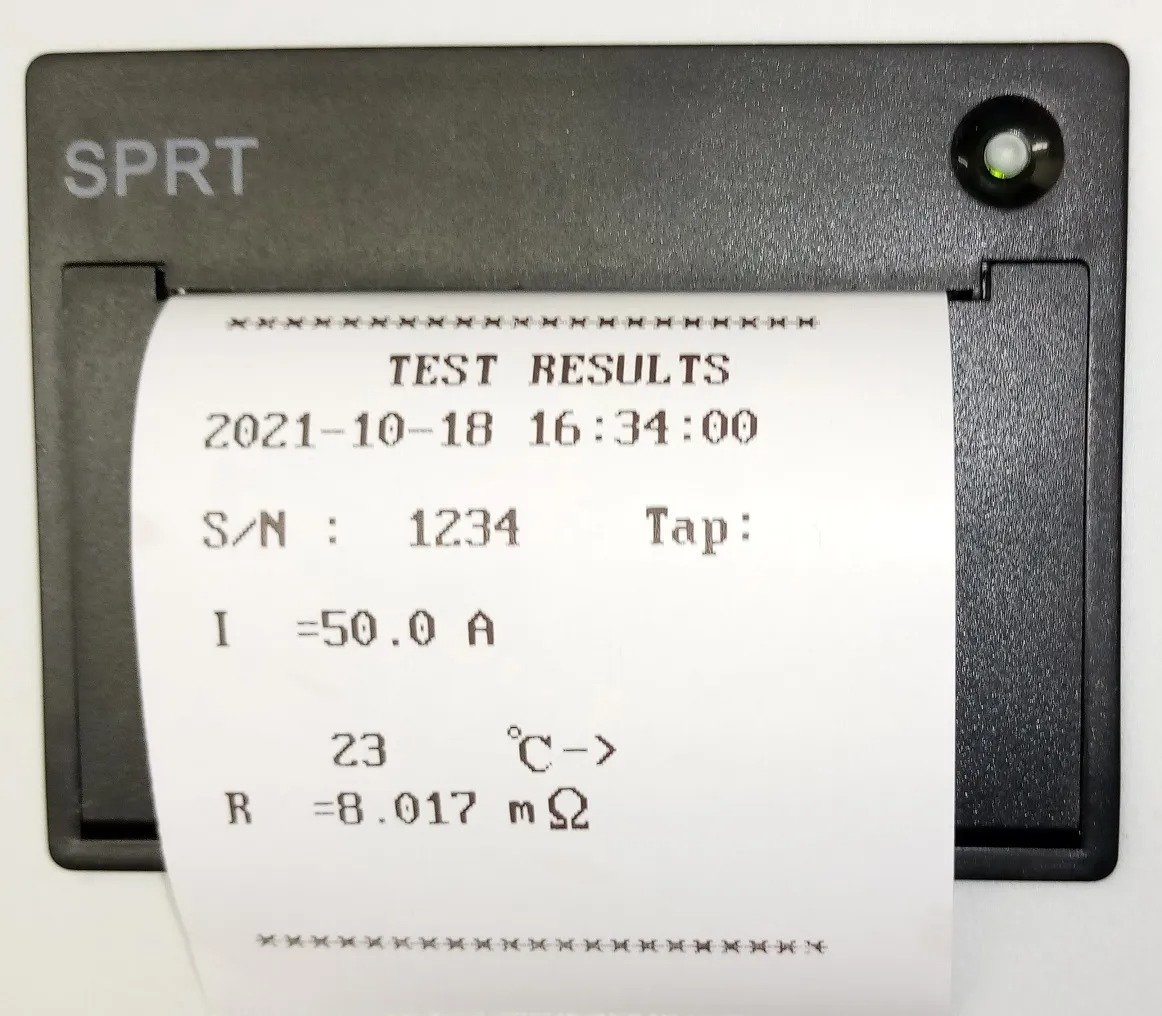

- On-board micro-printer and USB interface
- Dual RS485 communication interfaces
- Automatic simultaneous six-winding measurements
- Single and three-phase measurement connections
- 1-year parts and labor warranty
Guarantee Safe and Secure Payment Checkout
Description
Amblyonix 1051WR
- Fixed and automatic current output from 20mA to 50A
- 5.6-inch Super-Industrial, color LCD
- Broad resistance measurement range
- Temperature-compensated measurements
- On-board micro-printer and USB interface
Winding Resistance Ohmmeter, 50A
One of the most important tests that can be made to determine the condition of a transformer, is to measure its winding resistance(s). Many defects or faults can be identified by this test including overheated or damaged windings, loose mechanical connections, poorly welded bonds, and issues associated with tap-changing mechanisms. The Amblyonix 1051WR has been designed to quickly perform winding resistance measurements with a very high degree of accuracy. Nine ranges of output current provide for a very broad resistance measurement capability.
10WR Series Comparison Table
| Model Number | Output Current | Measurement Range | Accuracy | Relative Humidity | Communications |
| Amblyonix1010WR | 10A, 5A, 1A, 100mA, 10mA, 1mA | 0 to 50KΩ | 0.2% rdg +2 digits | ≤90% non-condensing | N/A |
| Amblyonix1051WR | 20mA, 100mA, 200mA, 1A, 2A, 5A, 10A, 20A, 50A, and Automatic Output | 0 to 20kΩ | 0.2% of reading, ±0.1μΩ | ≤80%RH non-condensing | USB, Dual RS485 |
| Amblyonix1053WR | 20mA, 100mA, 200mA, 1A, 2A, 5A, 10A, 20A, 50A, and Automatic Output | 0 to 20kΩ | 0.2% of reading, ±0.1μΩ | ≤80%RH non-condensing | USB, Dual RS485 |
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Maximum Test Current | 1 A, 10 A |
| Variable Test Current | Yes |
| Min Resistance | 0 m Ohms |
| Max Resistance (ohm) | 20 K Ohms (20000 Ohms) |
| Alarm | Yes |
| Temperature Compensation | Yes |
| Line Power or Battery power | Line Power |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | All products are covered with a 1-year parts and labor warranty. |
| Interfaces I/O | RS-485, USB |
| Storage | Internal Memory |
| Product Weight | 32.6 LBS |
| Product Height | 7.9 IN |
| Product Length | 16.5 IN |
| Product Width | 12.6 IN |
| Power Supply Voltage | 120V 50/60 Hz |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 32.6 lbs |
|---|---|
| Dimensions | 16.5 × 12.6 × 7.9 in |
