Amblyonix BT12 – Battery Tester, 1kHz, AC, 4-Terminal Test Method
14 people are viewing this product right now
$1,995.00
Shipping calculated at checkout.
Estimated delivery:5 days
Battery Tester, 1kHz, AC, 4-Terminal Test Method
- Four wire measurements
- 3mΩ/30mΩ/300mΩ/3Ω range
- 7V/70V range
- Temperature measurement capability
- High resolution 1uΩ and 1mV
- Noise reduction technology
- Battery or line powered
- USB port and Bluetooth
- 1-year parts and labor warranty
Guarantee Safe and Secure Payment Checkout
Description

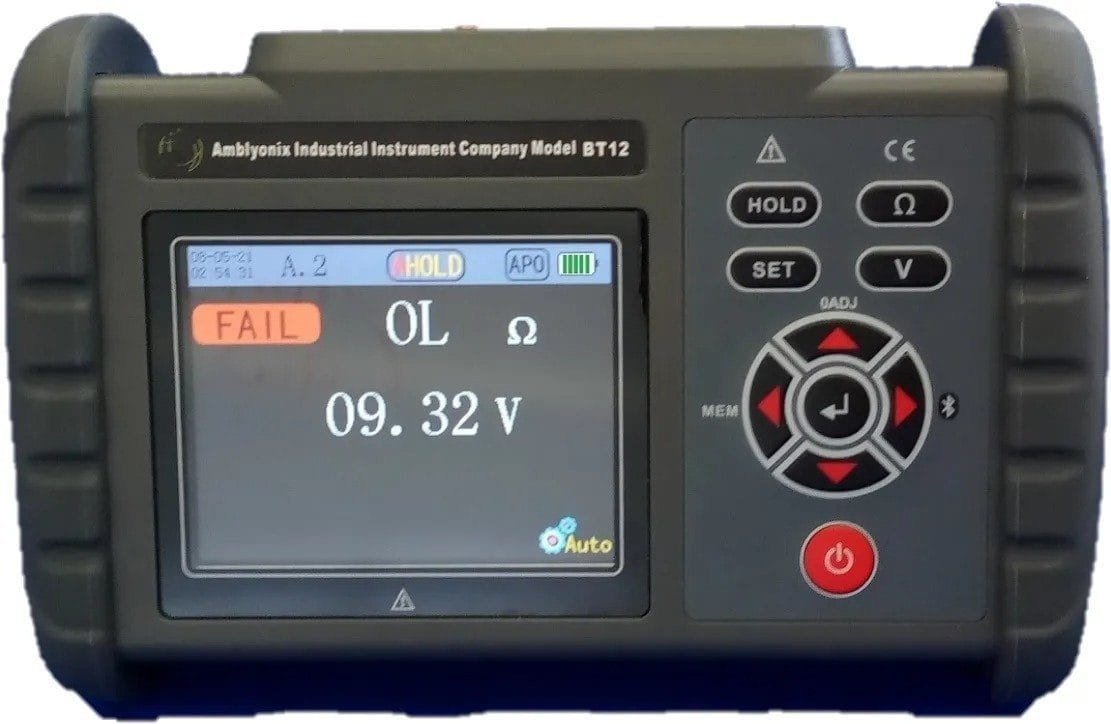

Amblyonix BT12

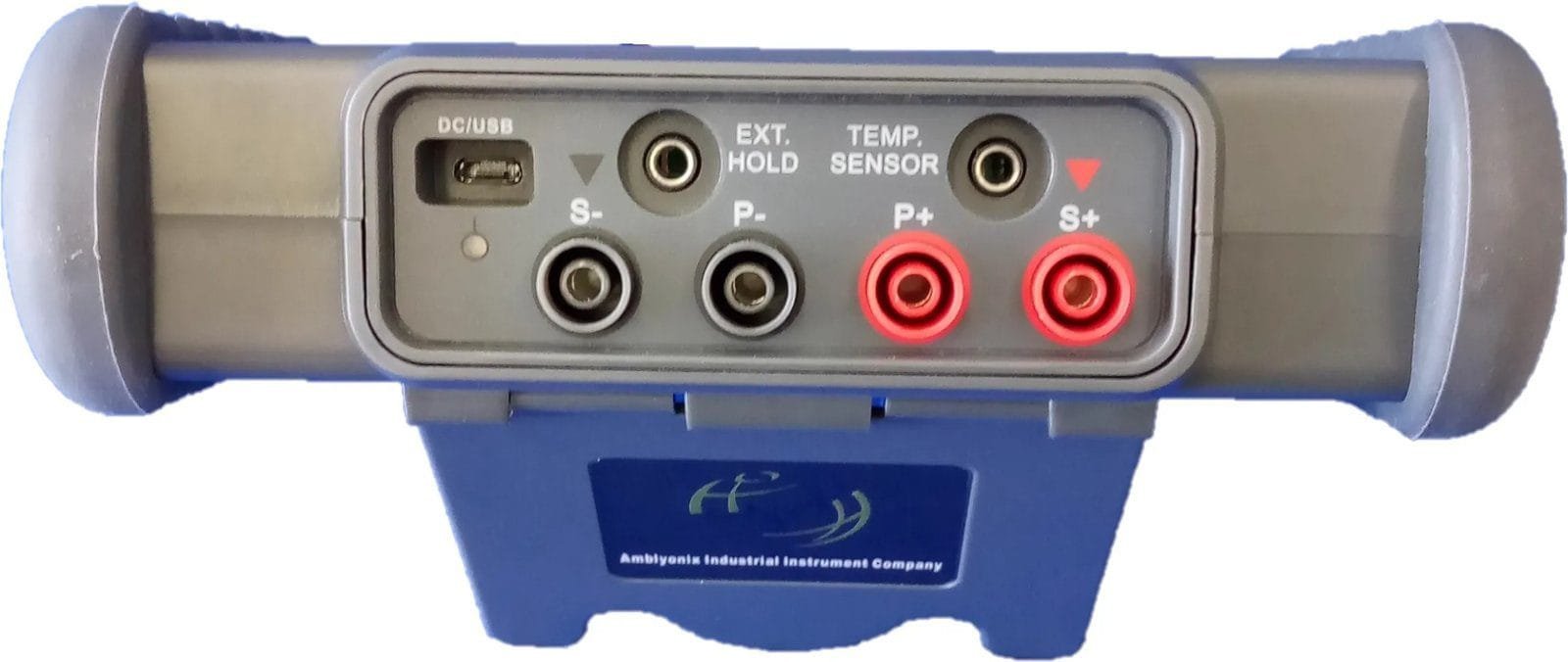

- Four-wire measurements
- 3mΩ/30mΩ/300mΩ/3Ω range
- 7V/70V range
- Temperature measurement capability
- High-resolution 1uΩ and 1mV
Battery Tester, 1kHz, AC, 4-Terminal Test Method
Two factors determining the internal resistance of a battery are electrical resistance and ionic resistance. The Amblyonix BT12 detects the overall resistance using a four-wire method and a low voltage AC signal at 1 kHz.
Low internal resistance is an indicator of good battery health. Conversely, a high resistance represents a lower battery capacity or internal deterioration. Trending these measurements over time helps prevent problems down the road.
With the model BT12, preset Pass, Fail, and Warning thresholds can be set. Stored measurements can be downloaded by USB connection.
Battery Testing/Battery Capacity Tester Template | |
|---|---|
| Min Voltage | 7 V |
| Max Voltage | 70 V |
| Min Resistance | 3 m Ohms |
| Max Resistance (ohm) | 3 Ohms |
| Accuracy | Resistance Accuracy: 1% Voltage Accuracy: 0.5% Temperature Accuracy: ±1.0℃ |
Product General Attributes | |
| Warranty Details | All products are covered with a 1 year parts and labor warranty |
| Interfaces I/O | Bluetooth, USB |
| Product Weight | 3 LBS |
| Product Height | 12 IN |
| Product Length | 14 IN |
| Product Width | 6 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
| Dimensions | 14 × 6 × 12 in |
|---|
