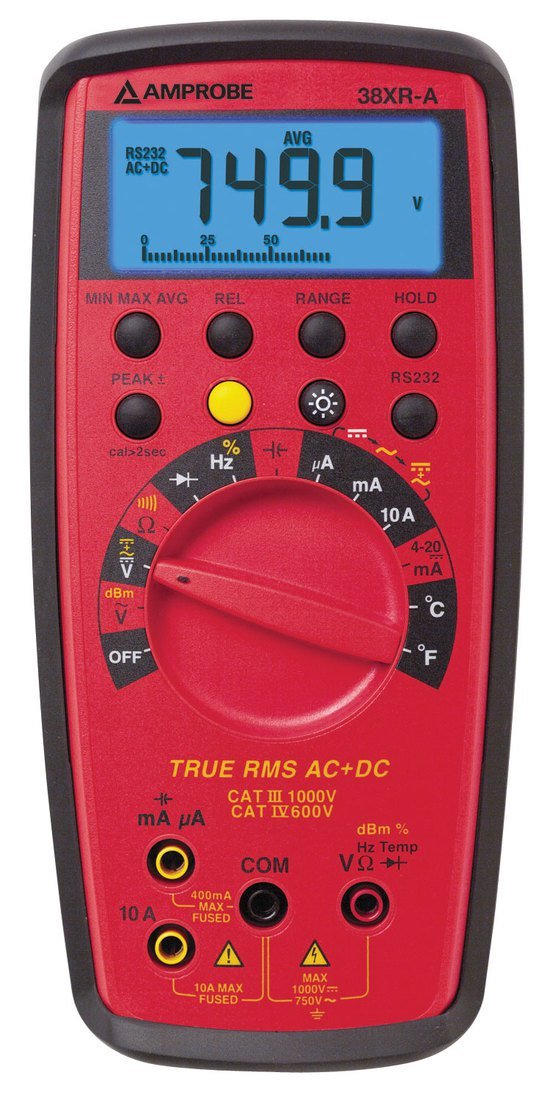

Amprobe 38XR-A – TRMS Digital Multimeter with Temperature
16 people are viewing this product right now
Original price was: $386.08.$297.97Current price is: $297.97.
Shipping calculated at checkout.
Estimated delivery:5 days
PROF DMM TRUE RMS W OPTICAL PC INTERFACE
- Backlight, True-rms with with optical PC interface
- Frequency to 10 MHz, capacitance to 400 uF, temperature to 2372 °F
- Bright blue backlight
- 10 Amps AC/DC, fully safety fused
- Continuity beeper
- Min/max, average, relative, peak, and data hold
- Auto power off to save battery life
- Separate door for easy battery and fuse access
- Magne-Grip™ Holster with magnetic hanging strap
- Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
- Display update rate: 2/sec, nominal
- Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
- Operating temperature: 0 °C to 45 °C at < 70 % R.H
- Input lead warning
Guarantee Safe and Secure Payment Checkout
Description
Amprobe 38XR-A – TRMS Digital Multimeter with Temperature
- Backlight, True-rms with with optical PC interface
- Frequency to 10 MHz, capacitance to 400 uF, temperature to 2372 °F
- Bright blue backlight
- 10 Amps AC/DC, fully safety fused
- Continuity beeper
The Amprobe 38XR-A, a True-rms digital multimeter with optical PC interface for engineers designing and troubleshooting industrial automation and control systems.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 100 uV (0.1 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 100 uV (0.1 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 uA (0.00001 mA) |
| Resolution AC Current | 0.01 uA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 uA (0.00001 mA) |
| Resolution DC Current | 0.01 uA (0.00001 mA) |
| Basic Accuracy V DC | ± 0.25% Rdg + 5D |
| # Digit Display | 4.75 |
| Counts | 10000 . |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III CAT Rating attribute_type should be multi_select |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | 0% to 90% Duty Cycle % attribute_type should be Text |
Product General Attributes | |
| Unique Features | 10A Fully Safety Fused, Auto Power Off to Save Battery Life, Separate Door for Easy Battery and Fuse Access |
| Warranty | 3 YEARS |
| Warranty Details | 3 Years from the Date of Purchase, Shall not be Liable for Loss of use of the Multimeter or other Incidental or Consequential Damages, Expenses or Economical Loss or for any Claim or Claims for such Damage, Expenses or Economical Loss |
| Additional Info/Comments | Deluxe Test Lead Kit, Heavy Duty Case, High Voltage Probe, Padded Vinyl Carry Case, High Temperature Probe & RS232 Cable and Software |
| Safety Approval | CSA |
| Interfaces I/O | RS-232 |
| Product Weight | 1 LBS |
| Product Height | 7.8 IN |
| Product Length | 2.4 IN |
| Product Width | 3.55 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 HTS/Schedule B Number Value not available |
| ECCN Number | 3A992 ECCN Number Value not available |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan |
| Other Information | Display: 4? digit liquid crystal display (LCD)(9999 count) with a 41-segment analogbar-graph. Auto ranging: 9999 counts Manual ranging: 9999 counts Polarity: Automatic, positive implied, negative polarity indication. Overrange: 0o or -0o is displayed. Zero: Automatic. Low battery indication: The B symbol is displayed when the battery voltage drops below the operating level. Auto power off: Approx. 30 minutes. Measurement rate: 2 times per second, nominal. Operating environment: 0 ?C to 50 ?C at 70 % R.H. Storage temperature: -20 ?C to 60 ?C, 0 to 80 % R.H. with battery removed from meter. Temperature Coefficient: 0.1 ? (specified accuracy) per ?C. (0 ?C to18 ?C, 28 ?C to 50 ?C). Altitude: 2000 m (6562 feet) Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22. Battery life: 75 hours typical with carbon-zinc. 150 hours typical with alkaline. Dimensions: 196 mm (H) ?96 mm (W)?60 mm (D) Warranty: 3 Year Battery Life: 150 hrs typical (alkaline) Size: 7.75″ x 3.55″ x 2.4″ (195 x 92 x 60 mm) Weight: (without holster, including battery): 1 lb (400 gr) Safety: Cat II 1000V, Cat IV 600V Ranges: 1000 mV, 10 V, 100 V, 1000 V ( auto/manual ranging ) Resolution: 100 µV Accuracy: ?(0.25 % rdg + 5 dgts) Input impedance: 10 MO Overload protection: 1000 V dc or 750 V ac rms Ranges: 1000 mV, 10 V, 100 V, 750 V (auto/manual ranging) Resolution: 100 µV Accuracy: ?(1.2 % rdg + 10 dgts) 45 Hz to 500 Hz Peak Hold accuracy: ?(3.0 % + 200 dgts) on 100 V, 750 V range; 1000 mV, 10 V ranges unspecified DC Voltage Ranges: 1000 mV, 10 V, 100 V, 1000 V DC Voltage Accuracy: all ranges ? (0.25 % rdg + 5 dgt) DC Voltage Resolution: 100 µV AC Voltage (45 Hz to 2 kHz) True RMS Ranges: 1000 mV, 10 V, 100 V, 750 V AC Voltage (45 Hz to 2 kHz) True RMS Accuracy: 750 V range: 45 to 1 kHz: ? (2.0 % rdg + 10 dgts) AC Voltage (45 Hz to 2 kHz) True RMS Accuracy: All other ranges, 45 to 500 Hz: ? (1.2 % rdg + 10 dgts) AC Voltage (45 Hz to 2 kHz) True RMS Accuracy: All other ranges, 500 to 2 kHz: ? (2.0 % rdg + 10 dgts) AC coupled: True RMS specified from 5 % to 100 % of range AC + DC Voltage (45 Hz to 2 kHz): 1000 mV, 10 V, 100 V, 750 V DC Current Ranges: 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A DC Current Accuracy: 100 µA range: ? (0.5 % rdg + 10 dgt) DC Current Accuracy: 1000 uA to 400 mA ranges: ? (0.5 % rdg + 5 dgts) DC Current Accuracy: 10 A range: ? (1.5 % rdg + 10 dgt) DC Current Resolution: 0.01 µA AC Current (True RMS) ( AC + DC) (45 Hz ? 1kHz) Ranges: 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A AC Current (True RMS) ( AC + DC) (45 Hz ? 1kHz) Accuracy: 100 µA to 100 mA ranges: ? (1.5 % rdg + 10 dgts) AC Current (True RMS) ( AC + DC) (45 Hz ? 1kHz) Accuracy: 400 mA range: ? (2.0 % rdg + 10 dgts) AC Current (True RMS) ( AC + DC) (45 Hz ? 1kHz) Accuracy: 10 A range: ? (2.5 % rdg + 10 dgts) AC Current (45 Hz to 1 kHz) True RMS Resolution: 0.01 µA Resistance Ranges: 1000 ? 10 k? 100 k? 1000 k? 10 M? 40 M? Resistance Accuracy: 1000 ? to 1000 k? ranges: ? (0.5 % rdg + 8 dgts) Resistance Accuracy: 10 M? range: ? (1.0 % rdg + 10 dgts) Resistance Accuracy: 40 M? range: ? (2.0 % rdg + 10 dgts) |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1 lbs |
|---|---|
| Dimensions | 2.4 × 3.55 × 7.8 in |
