Amprobe ACD-50NAV – 600A AC Navigator Clamp
44 people are viewing this product right now
Original price was: $417.98.$322.59Current price is: $322.59.
Shipping calculated at checkout.
Estimated delivery:5 days
600A AC Navigator Clamp
- True RMS
- Measurements: Voltage up to 1000V AC/DC, Resistance, Frequency, THD (Total Harmonics Distortion) and Individual Harmonics form 1 to 25, Power, Power Factor, AC Current – Up to 600A, Capacitance
- Phase Rotation Indication
- Non-contact voltage detection
- Inrush Current measurement for motors
- Low Pass Filter for variable frequency drives
- Min, Max and Smart Data Hold
- Peak Hold
- Auto torch-light when clamping
- Auto Power Off
Guarantee Safe and Secure Payment Checkout
Description

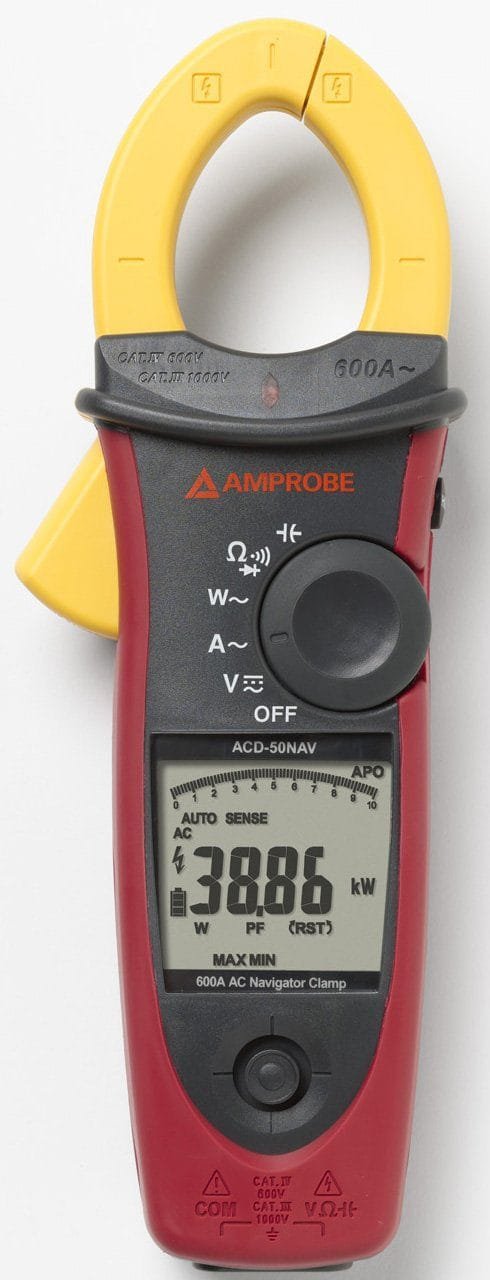

Amprobe ACD-50NAV
- True RMS
- Maximum Jaw Opening 1.77” (45mm)
- 4 feet Drop Proof
- Deluxe Carrying Case Included
- CAT IV 600V /CAT III 1000V Safety Standard
600A AC Navigator Clamp
The ACD-50NAV is CAT IV 600V, CAT III 1000V clamp with voltage measurement up to 1000V AC/DC. Designed for the toughest electrical applications, it features Phase Rotation, Inrush Current, and Low Pass filter for full diagnostic capabilities. The new innovative navigation system eliminates multiple and confusing push buttons and replaces them with a joystick where users can select functions directly on the display.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | No |
| Maximum Current AC | 600 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 1.77 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | Yes |
Product General Attributes | |
| Unique Features | Phase Rotation Indication, Non-contact Voltage Detection, Low Pass Filter for Variable Frequency Drives, Auto Torch-light When Clamping, Measures Total Harmonics Distortion, Easy to Use Single Hand Selection |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Built-in Jaw Flashlight, Overmold Bodies to Absorb Shock |
| Product Weight | 0.84 LBS |
| Product Height | 2 IN |
| Product Length | 9.4 IN |
| Product Width | 3.4 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
| Shipping Height | 3.50 IN Shipping Height Value not available |
| Shipping Length | 14.25 IN Shipping Length Value not available |
| Shipping Width | 7.50 IN Shipping Width Value not available |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 9.4 × 3.4 × 2 in |
|---|
