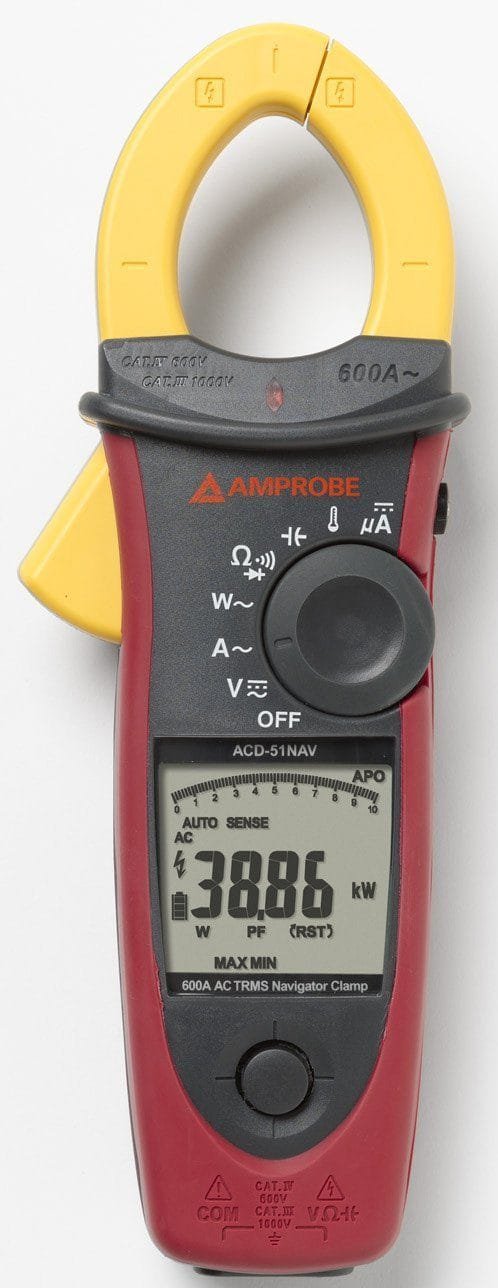

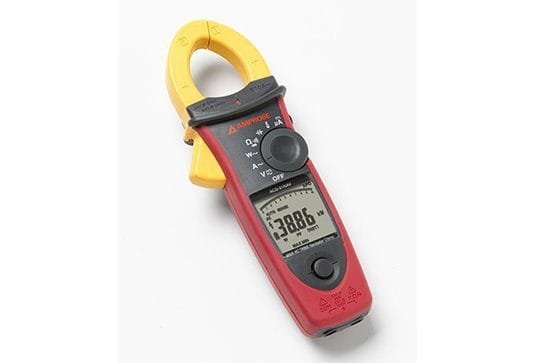

Amprobe ACD-51NAV – CAT IV 600A AC TRMS Navigator Clamp Meter

• True-RMS
• Large 10,000 count display with active backlight and analog bar graph
• Auto Power Off
• Maximum jaw opening 1.77” (45mm)
• 4 feet drop proof
• Deluxe carrying case Included
• CAT IV 600 V /CAT III 1000 V safety standard

This versatile clamp-on power meter offers a full range of diagnostics, including those that HVAC technicians need most – volts, amps, resistance, capacitance, DC microamps, in-rush current, and temperature.

A great clamp-on multimeter choice for troubleshooting or maintaining air conditioning or motor efficiency, measuring phase rotation, and identifying harmonics. Convenient joystick enables quick single-handed function selection.

Complete with a full range of diagnostic capabilities including phase sequence, power, and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter, the Amprobe Navigator Clamp serves as the first line of defense for spot-checking and verifying system conditions before deploying more specialized tools – or incurring additional costs. It is rated CAT IV 600 V, CAT III 1000 V meter with voltage measurement up to 1000 V AC/DC. The new innovative navigation system eliminates confusing push buttons and replaces them with a single joystick allowing the user to select functions directly on the display.

CAT IV Navigator™ Clamp Meters

It’s all about easy and reliable measurements. Amprobe’s new line of Navigator clamp meters features a quick, easy-to-use single-hand selection of measurements. The joystick control allows quick selection of measurement features on the display from MAX/MIN to power factor to AC/DC, with many more available. Simply highlight the desired measurement feature using the joystick and press to select. Rugged and CAT IV reliable, these units also feature a super-bright backlight display, a built-in jaw flashlight, and overmold bodies to absorb shock – all you need for commercial and industrial environments.
