Description

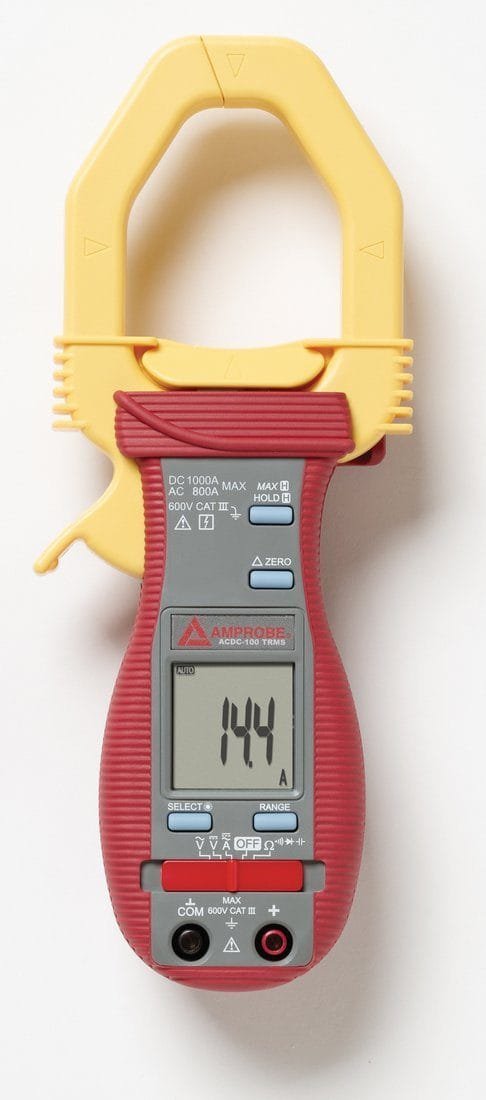

Amprobe ACDC-100
- 1000 Amp AC and DC current
- AC/DC voltage to 600V
- Accommodates conductors up to 50mm (2.00”) in diameter
- “Third hand” – test probe holder
- Rubber over-molded case with built-in probes storage
1000A AC/DC Clamp-On Multimeter
Where accuracy, quality, and the newest technology meet. The ACDC100 offers superior AC/DC measurement capabilities, the highest product quality, and enhanced ergonomic design.
Clamp Meters/Clamp Meters Template | |||
|---|---|---|---|
| True RMS | No | ||
| Maximum Current AC | 800 A | ||
| Maximum Current DC | 1000 A | ||
| Maximum Voltage AC | 600 V | ||
| Maximum Voltage DC | 600 V | ||
| Maximum Conductor Size | 2 IN | ||
| Resistance | Yes | ||
| Capacitance | Yes | ||
| Auto Ranging/Manual | Both | ||
| In-Rush Current | Yes | ||
Product General Attributes | |||
| Unique Features | Relative Zero Mode, Third Hand Test Probe Holder | ||
| Warranty | 1 YEARS | ||
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling | ||
| Additional Info/Comments | Line splitter (Energizer), 3000A AC Flexible Clamp-on Attachment, Single Input Thermocouple Temperature Attachment, Test Lead Kit | ||
| Product Weight | 290 GRAMS (0.639 LBS) | ||
| Product Height | 40 MM (1.57 IN) | ||
| Product Length | 227 MM (8.94 IN) | ||
| Product Width | 78 MM (3.07 IN) | ||
| Data Logging | No | ||
| HTS/Schedule B Number | 9030.32.0000 HTS/Schedule B Number Value not available | ||
| ECCN Number | 3A992 ECCN Number Value not available | ||
| Calibration Included | Factory Calibration | ||
| Battery Type | AAA | ||
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device | ||
| Country of Origin | Taiwan Country of Origin Value not available | ||
| Shipping Height | 3.75 IN Shipping Height Value not available | ||
| Shipping Length | 12.00 IN Shipping Length Value not available | ||
| Shipping Width | 7.00 IN Shipping Width Value not available | ||
| Other Information | Display: 3-3/4 digits 4000 counts LCD display Update Rate: 3 per second nominal Polarity: Automatic Low Battery: Below approx. 2.4V Operating Temperature: 0?C to 40?C Relative Humidity: Maximum relative humidity 80% for temperature up to 31?C decreasing linearly to 50% relative humidity at 40?C Altitude: Operating below 2000m Storage Temperature: -20?C to 60?C, 80% R.H. (with battery removed) Temperature Coefficient: nominal 0.15 x (specified accuracy)/ ?C @(0?C -18?C or 28?C -40?C), or otherwise specified Sensing: Average sensing Safety: Meets EN61010-1:2001; IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003) Category III 600 Volts AC & DC. Transient protection: 6.5kV (1.2/50µs surge) for all models Pollution degree: 2 E.M.C.: Meets EN61326-1 In an RF field of 3V/m: Capacitance function is not specified Other function ranges: Total Accuracy = Specified Accuracy + 45 digits Performance above 3V/m is not specified Overload Protections: Clamp-on jaws: DC 1000A or AC 800A rms continuous + & COM terminals (all functions) – 600VDC/VAC rms Power Supply: standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2 Power Consumption: typical 11mA for ACA/DCA and 2.9mA for other functions APO Timing: Idle for 30 minutes APO Consumption: typical 10µA Dimension: L227mm X W78mm X H40mm Weight: 290 gm approx Jaw opening & Conductor diameter: 50mm max Electrical Specifications | Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23?C ± 5?C & less than 75% R.H. | |
| DC Voltage | |||
| : 400.0 mV | 0.3% + 3d AC Voltage | ||
| 50Hz ~ 500Hz: 400.0mV 1) | 4.0% + 4d Resistance | ||
| : 400.0O | 0.8% + 6d Audible Continuity Tester | ||
| Open Circuit Voltage:: 0.4VDC typical | Diode Tester | ||
| Open Circuit Voltage: Test Current (Typical) | Capacitance | ||
| : 500.0nF, 5.000µF, 50.00µF,500.0µF, 3000µF 1) | 3.5% + 6d2) 3) DC Current (Clamp-on) | ||
| 400.0A: 0.0A ~ 400.0A | 1.5% + 4d 1) 2) AC Current (Clamp-on) | ||
| 400.0A: | |||
