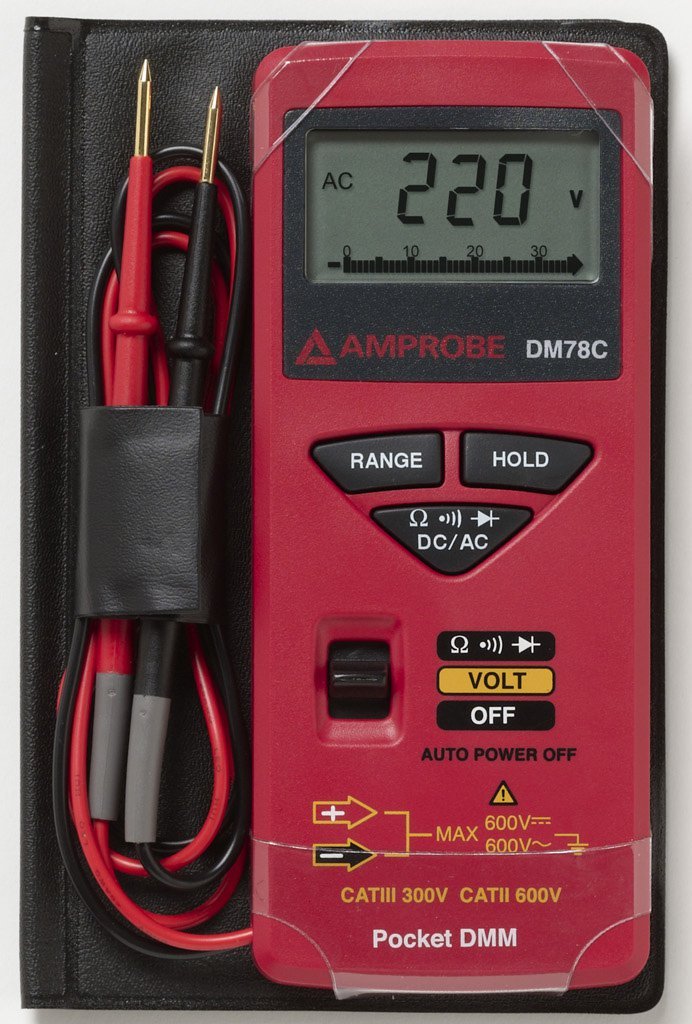

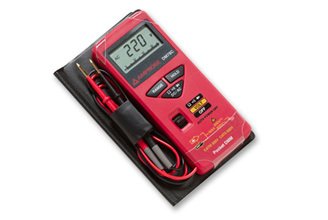

Amprobe DM78C Pocket Digital Multimeter
33 people are viewing this product right now
Original price was: $75.88.$58.56Current price is: $58.56.
Shipping calculated at checkout.
Estimated delivery:5 days
AUTO-RANGING POCKET DMM WITH CASE
- Smallest, go anywhere meter
- Data Hold
- 5 functions/16 ranges
- Auto-off saves batteries
- Protective case included
- 3200-count display with analog bargraph
Guarantee Safe and Secure Payment Checkout
Description
The DM78C is the smallest go-anywhere meter that measures voltage, continuity, diode and resistance.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | No |
| Measures DC A | No |
| True RMS | No |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 100 uV (0.1 mV) |
| Basic Accuracy V DC | ± 2% Rdg + 2D |
| # Digit Display | 3.75 |
| Counts | 3400 . |
| Backlight | No |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | II CAT Rating attribute_type should be multi_select |
| CAT Voltage | 300 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | No |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | No |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Smallest, go Anywhere Meter |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Product Weight | 110 GRAMS (0.243 LBS) |
| Product Height | 5.1 IN |
| Product Length | 0.6 IN |
| Product Width | 3.1 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 110 lbs |
|---|---|
| Dimensions | 0.6 × 3.1 × 5.1 in |
