Amprobe MO-100 Milliohm Meter
48 people are viewing this product right now
Original price was: $1,370.99.$1,058.13Current price is: $1,058.13.
Shipping calculated at checkout.
Estimated delivery:5 days
MILLIOHMMETER BATTERY POWERED
- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- AUTO-HOLD and AUTO-OFF features
- Lightweight, robust & compact.
- Indicates measurement errors due to temperature or connection problems
- “O-Ring” sealed enclosure
- Battery powered
- Size: 250(L) x 190(W) x 110(D)mm (9.8 x 7.5 x 4.3 in)
- Weight: 1500 g (3.3 lb)
- IEC / EN 61010-1
Guarantee Safe and Secure Payment Checkout
Description

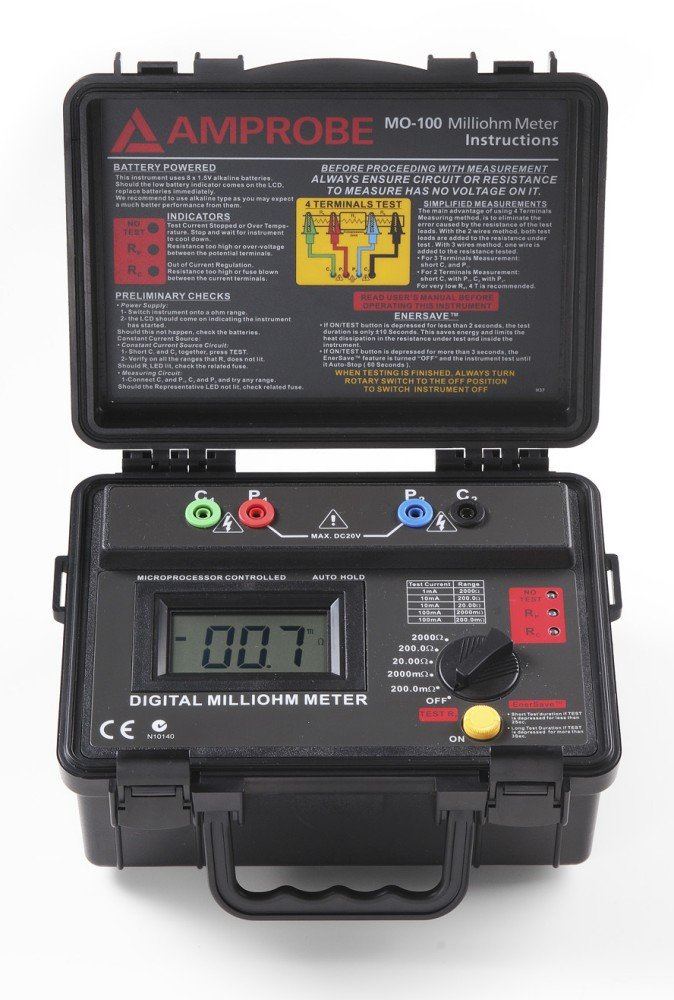

MO-100 Milliohm Meter
Diagnose potential failure with the MO-100, portable battery powered Milliohm Meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.
Micro / Milli / Meg Ohmmeters/Milli-Ohmmeter Template | |
|---|---|
| Style (Milli-Ohmmeter) | Portable |
| Line Power or Battery power | Battery Power |
| Minimum Resistance | 100 u Ohms (0.0001 Ohms) Minimum Resistance 200.0mΩ in steps of 100µΩ |
| Maximum Resistance | 2000 Ohms Maximum Resistance 200.0mΩ in steps of 100µΩ |
| Max Resolution (Ohms) | 100 u Ohms (0.0001 Ohms) |
| Variable Test Current | Yes Variable Test Current 1mA => 2000 ohms range. |
| Maximum Current | 100 mA (0.1 A) Maximum Current 1mA => 2000 ohms range. |
| Minimum Current | 1 mA (1000 uA) Minimum Current 1mA => 2000 ohms range. |
| Selectable Ranges | Yes |
| Alarm | No |
| Comparator Function | No |
| Digits Display | 3.5 |
| Kelvin Four-Terminal Measurement | No Kelvin Four-Terminal Measurement The instrument supply that current to the resistance being measured |
Product General Attributes | |
| Unique Features | Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation Measurement precision with three test currents with over-temperature protection Protection against inadvertent connection to overvoltage Large LCD Potential lead resistance, current lead resistance checks AUTO-HOLD and AUTO-OFF features Lightweight, robust & compact. Indicates measurement errors due to temperature or connection problems “O-Ring” sealed enclosure Battery powered |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| IP Rating | IP54 |
| Product Weight | 3.3 LBS Product Weight 1500gr |
| Product Height | 4.3 IN |
| Product Length | 9.8 IN Product Length 250(L) x 190(W) x 110(D)mm |
| Product Width | 7.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | 3A992 |
| Calibration Included | |
| Battery Type | AA Battery Type 8xAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 5.75 IN |
| Shipping Length | 9.75 IN |
| Shipping Width | 7.75 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 3.3 lbs |
|---|---|
| Dimensions | 9.8 × 7.5 × 4.3 in |
