Amprobe PM55A Digital Multimeter
23 people are viewing this product right now
Original price was: $127.58.$98.47Current price is: $98.47.
Shipping calculated at checkout.
Estimated delivery:5 days
AUTOMATIC PRECISION POCKET DMM
- AutoTect feature directs the meter to know if it is measuring AC volts, DC volts or resistance with no user interface
- The AutoTect feature has lower input impedance which zeros out ghost voltages
- Measures AC/DC current, capacitance, frequency, continuity with beeper plus includes Voltect, a built-in, non-contact voltage detector
- Large oversize digital display
- Protective silicon holster included, attached test leads, battery, deluxe carry case and manual
- One-year, no-hassle warranty
Guarantee Safe and Secure Payment Checkout
Description
Amprobe PM55A – Digital Multimeter
- AutoTect feature directs the meter to know if it is measuring AC volts, DC volts or resistance with no user interface
- The AutoTect feature has lower input impedance which zeros out ghost voltages
- Measures AC/DC current, capacitance, frequency, continuity with beeper plus includes Voltect, a built-in, non-contact voltage detector
- Large oversize digital display
- One-year, no-hassle warranty

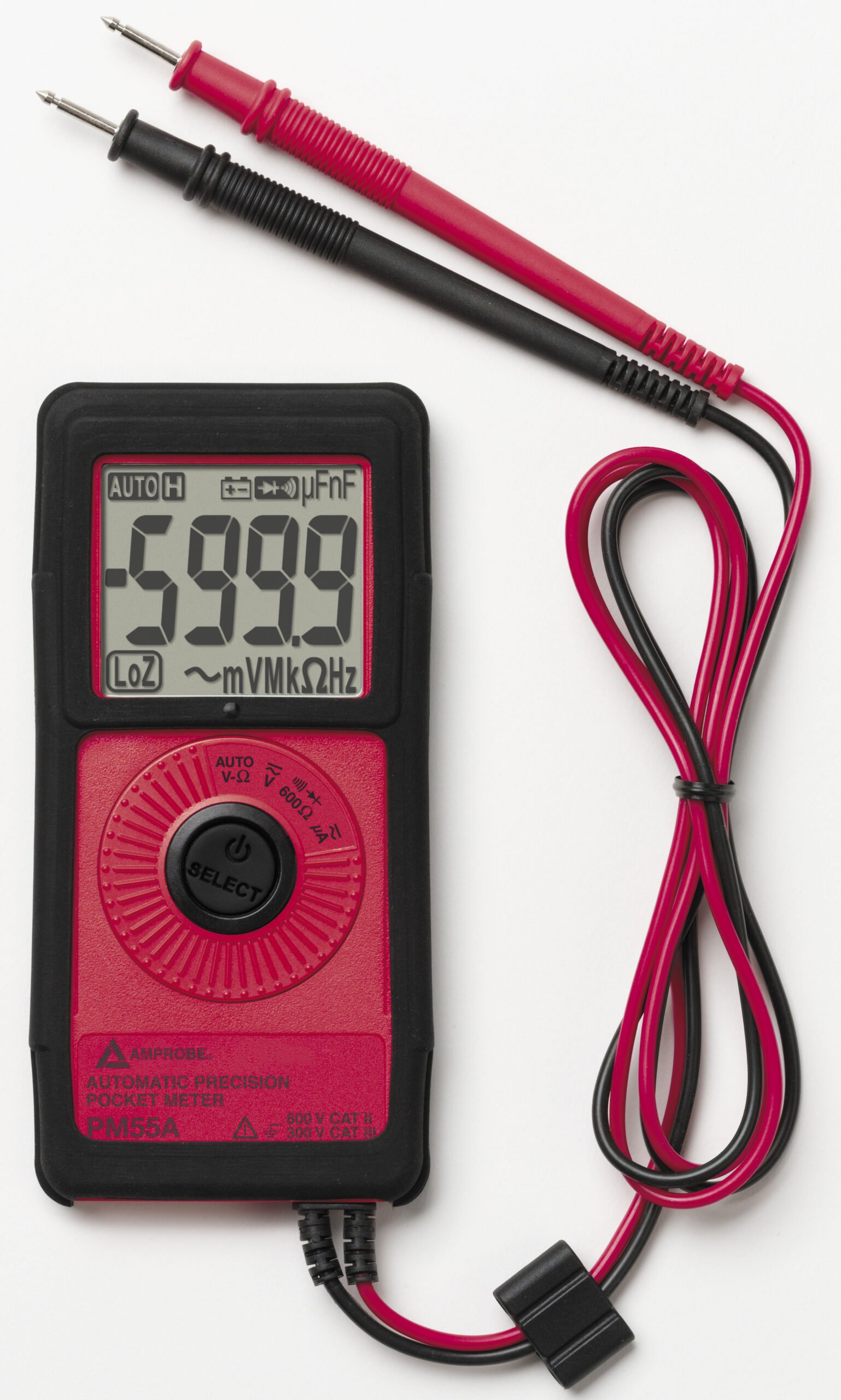

The ultimate shirt-pocket sized meter. Only 3/8″ thick and less than 3 oz in weight with full functionality offering ac and dc voltage to 600 V, AC, and DC current to 2000 µA, resistance to 6 Megohm, capacitance to 2000 µF, frequency to 30 kHz, diode test and continuity w/beeper. It also offers VolTect, a built-in, non-contact voltage detector for AC voltages.
Another key feature is AutoTect, which automatically selects between AC voltage, DC voltage, or resistance measurement based on the test point to which the leads are connected. Fully auto-ranging, this meter offers nine different measurement functions plus features that are usually found in much more expensive and larger meters. The digital display is oversized with large digits and unit icons on the display. In spite of its size, this meter is fully safety rated to CAT III 300 V, CAT II 600 V and is UL approved.
No other meter this small offers such performance and high safety ratings. Includes a silicone protective holster, deluxe carrying case, attached test leads, battery, and manual.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Current AC | 2000 uA (0.002 A) |
| Maximum Current DC | 2000 uA (0.002 A) |
| Basic Accuracy V DC | ± 2% |
| Counts | 6000 . |
| Backlight | No |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | II CAT Rating attribute_type should be multi_select |
| CAT Voltage | 300 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | No |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Large Oversize Digital Display, Lower Input Impedance which Zeros Out Ghost Voltages |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Product Weight | 78 GRAMS (0.172 LBS) |
| Product Height | 0.4 IN |
| Product Length | 4.4 IN |
| Product Width | 2.1 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 HTS/Schedule B Number Value not available |
| ECCN Number | 3A992 ECCN Number Value not available |
| Calibration Included | Factory Calibration |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
You must be logged in to post a review.
| Weight | 78 lbs |
|---|---|
| Dimensions | 4.4 × 2.1 × 0.4 in |
