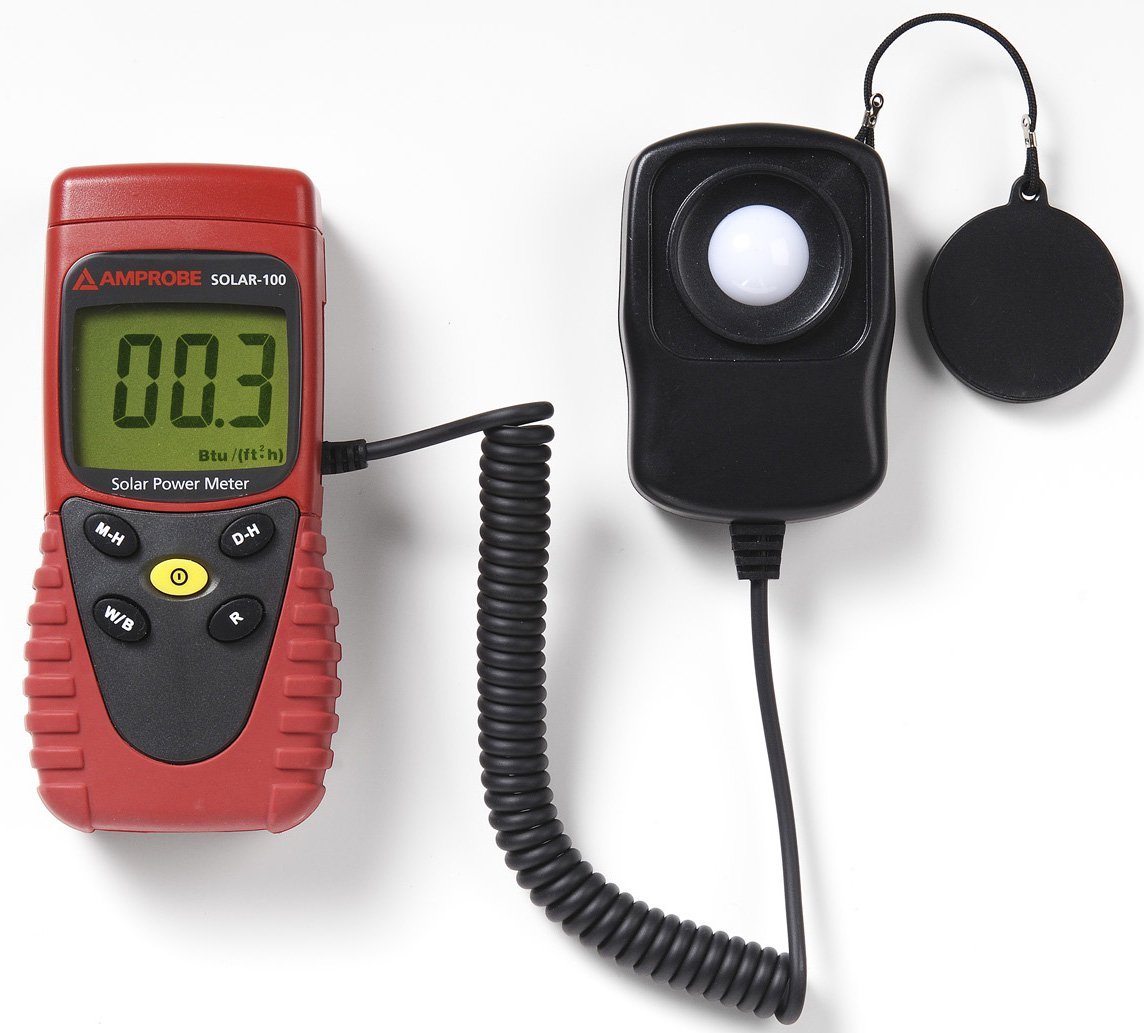

Amprobe SOLAR-100 Solar Power Meter
37 people are viewing this product right now
Original price was: $425.68.$328.54Current price is: $328.54.
Shipping calculated at checkout.
Estimated delivery:5 days
SOLAR POWER METER
- Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh)
- Power Mode – measurement of the power per unit area of incident solar radiation
- Transmission Mode – calculates the solar power transmission percentage of the material for example how much solar power in % will be transmitted through the window
- Convenient to read display with remote sensor technology
- Selectable measurement units either W/m2 or BTU / ( ft2 x h)
- Data Hold
- MAX/MIN functions to indentify locations with maximum or minimum power
Guarantee Safe and Secure Payment Checkout
Description
Amprobe SOLAR-100 – Solar Power Meter
- Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh)
- Power Mode – measurement of the power per unit area of incident solar radiation
- Convenient to read display with remote sensor technology
- Selectable measurement units either W/m2 or BTU / ( ft2 x h)
- MAX/MIN functions to indentify locations with maximum or minimum power
Optimize the placement of solar systems and verify window efficiency. The SOLAR-100 measures solar output that is used to calculate overall energy, efficiency and placement of solar systems.
Applications:
- Windows performance – calculation and verification of the heating or heat reduction caused by direct sunlight
- Solar radiation measurements
- Solar power research for location of the solar panels or solar water heater
- Physics and optical laboratories
- Meteorology
- Agriculture
Power Measurement/Solar Analyzer Template | |
|---|---|
| I-V Curve Test | No |
| Auto Scan for Power Pmax | No |
| Vmax @ Pmax | No |
| Imax @ Pmax | No |
| Power Selection | BTU, W/m2 |
| Vopen | No |
| Ishort | No |
Product General Attributes | |
| Unique Features | Measures the solar power and transmission up to 2000 W/m2, 634BTU / (ft2xh) Power Mode – measurement of the power per unit area of incident solar radiation Transmission Mode – calculates the solar power transmission percentage of the material for example how much solar power in % will be transmitted through the window Convenient to read display with remote sensor technology Selectable measurement units either W/m2 or BTU / ( ft2 x h) Data Hold |
| Warranty | 1 YEARS |
| Product Weight | 0.3 LBS Product Weight 150gr. |
| Product Height | 1.5 IN |
| Product Length | 5.2 IN Product Length 132(L) x 60(W) x 38(H) mm |
| Product Width | 2.4 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.00 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 6.75 IN |
You must be logged in to post a review.
Manuals/Guides
Other
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 5.2 × 2.4 × 1.5 in |
