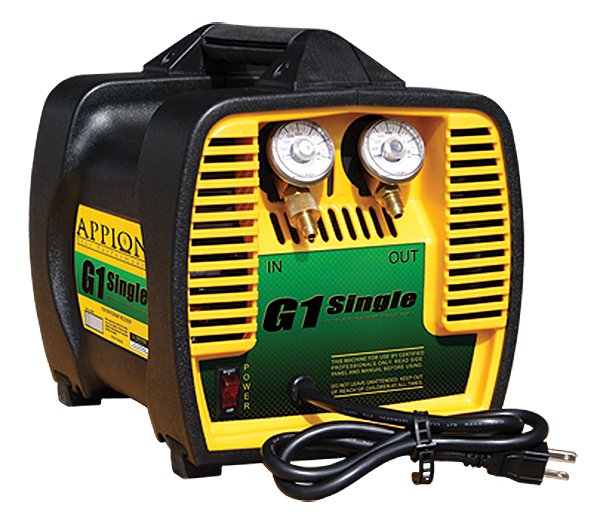

Appion G1 Single – Single Cylinder Refrigerant Recovery Machine
25 people are viewing this product right now
Original price was: $824.98.$659.98Current price is: $659.98.
Shipping calculated at checkout.
Estimated delivery:5 days
G1Single, Single Cylinder Recovery Unit 115V
- Portable: Weighs only 22 lbs.
- Refrigerant-Isolated Crankcase, eliminating bearing contamination
- 7-inch, 10-blade turbine fan blasting 600 cfm+ of cooling air
- Time-saving design: no throttling and no purge cycle required
- Completely field serviceable
Guarantee Safe and Secure Payment Checkout
Description
Appion G1Single – Single Cylinder, Refrigerant Recovery Machine
Ultimate machine for residential and appliance recovery jobs
- Designed for use with all common refrigerants, including R410A, R-134a, R-22 and R-407C
- Weighs only 22 pounds
Simple, Economical Refrigerant Recovery
The G1 Single’s simple, robust single cylinder design makes it the most reliable single cylinder recovery machine ever made.
The G1 Single is the ultimate machine for use with any and all residential and appliance recovery jobs. Like the G5 Twin, the G1 Single is designed for use with all common refrigerants, including R410A, R-134a, R-22 and R-407C. Also like the G5 Twin, the G1 Single pumps both liquid and vapor without any throttling, cutting down on overall recovery time.
Portable, durable, and efficient, the G1 Single is capable of handling every recovery job you can send its way. With recovery rates similar to the “big guys”, the G1 Single has the capability to recover without the bulk and the hassle that the other machines have. The G1 Single was built with modular construction for easy field repairs so you can keep your machine running at peak performance. The G1 Single is a small residential recovery machine that punches well above its weight!
G1 Single Recovery Rates
| Refrigerant | Push-Pull | Liquid | Vapor |
| R-134a | 9.44 lb/min 4.28 kg/min | 5.20 lb/min 2.36kg/min | 0.22 lb/min 0.10kg/min |
| R-22 | 10.80 lb/min 4.90kg/min | 8.55 lb/min 3.88 kg/min | 0.26 lb/min 0.12 kg/min |
| R-407C | 11.33 lb/min 5.14 kg/min | 5.84 lb/min 2.65 kg/min | 0.31 lb/min 0.14 kg/min |
| R-410A | 12.17 lb/min 5.52 kg/min | 4.32 lb/min 1.96 kg/min | 0.26 lb/min 0.12 kg/min |
HVAC Equipment and Instruments/Refrigerant HVAC/Refrigerant Recovery Template | |
|---|---|
| Refrigerant Type | R-134A, R-22, R-407C, R-410A |
| Multiple Refrigerant Capability | Yes |
| Functions (Refrigerant Recovery) | Recovers |
Product General Attributes | |
| Product Weight | 22 LBS |
| Product Height | 10.3 IN |
| Product Length | 11.38 IN |
| Product Width | 9.4 IN |
| Power Supply Voltage | 110V |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsApplication Notes
- Appion - Hazards of Using 80% Shut Off Switches
- Appion - Why you should use Inline Filter Driers
- Appion - Protecting Gauges from High Pressure Surges
- Appion - Preventing Voltage Drop thru Extension Cords
- Appion - Safely Handling ACR Tools
- Appion - Refrigerant Storage Container Safety
- Appion - Non-Condensables in Refrigerant Recovery
| Weight | 22 lbs |
|---|---|
| Dimensions | 11.38 × 9.4 × 10.3 in |
