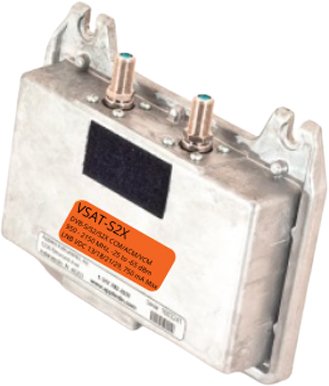

Applied Instruments XR-S2XACM-01 – Satellite Signal Level Meter Module for XR-3
22 people are viewing this product right now
$489.50
Shipping calculated at checkout.
Estimated delivery:5 days
Satellite Meter Module (VSAT / Broadcast TVRO / DTH) for XR-3
- Requires XR-3 mainframe unit
- Satellite meter module with VSAT, broadcast TVRO, and international DTH
- 950-2150 MHz frequency range
- Compatible with XR-3 Modular Test Instrument
- Satellite ID by “align-to-lock” or “automatic scan”
- ID multi-lock algorithm eliminates false positives
- Powers LNBs and multi-switches
- Use for L, C, X, Ku, or Ka band applications
- High sensitivity assures alignment optimization
- Geo-sensitive “Field Guide” software database stores all compatible satellites and transponders per global region
Guarantee Safe and Secure Payment Checkout
Description
Applied Instruments XR-S2XACM-01
- Requires XR-3 mainframe unit
- Satellite meter module with VSAT, broadcast TVRO, and international DTH
- 950-2150 MHz frequency range
- Compatible with XR-3 Modular Test Instrument
- Satellite ID by “align-to-lock” or “automatic scan”
Satellite Signal Level Meter Module for XR-3
Satellite signal level meter module for VSAT, Broadcast TVRO, and International DTH.
Measurements
- Demodulates DVB-S, DSS / DIRECTV Legacy, DVB-S2 & DVB-S2X (CCM, ACM, & VCM) signals
- Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
- Signal Quality (IRD, C/N, Eb/No, or Es/No)
- Pre-FEC & Post-FEC BER (Bit Error Rate)
- PER (Packet Error Rate)
- Voltage output of IRD / IDU (29V max)
- Current draw of LNB
- LNB frequency deviation (LNB LO drift estimate)
- Symbol Rate error
- Spectrum Screen (frequency on the x-axis, amplitude on the y-axis)
- Constellation Screen (I and Q demodulator values)
Signal Level Meters – CATV / CCTV / Satellite/Satellite Signal Level Meter Template | |
|---|---|
| Minimum Frequency Range | 950 MHz |
| Maximum Frequency Range | 2150 MHz |
| Satellite Capability | DirecTV, Other |
| Measurements | Bit Error Rate, dB, IRD (voltage), LNB (current), LNB Frequency Deviation Estimate, Other, Signal Level |
| Signal Level Units of Measure | dBµV, dBm, dBmV |
| Max RF Signal Range | -25 dB |
| Min RF Signal Range | -65 dB |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 3.2 LBS |
| Shipping Weight | 3.68 LBS |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 3.2 lbs |
|---|
