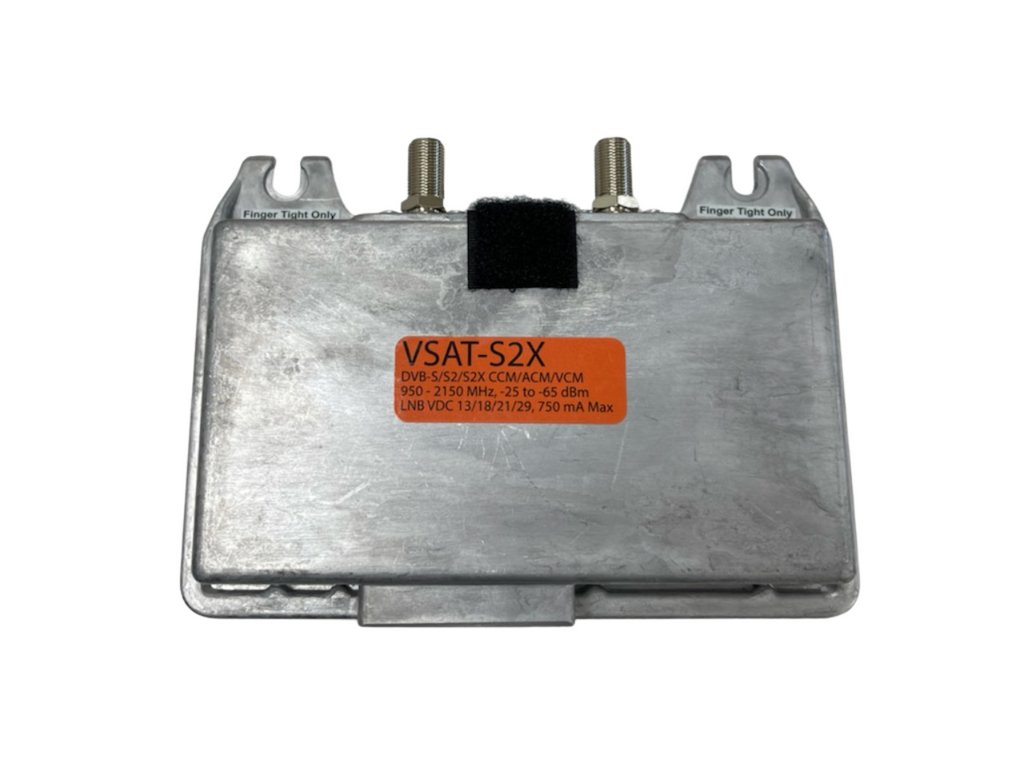

Applied XR-S2XACM-02 – Satellite Signal Level Meter Module (VSAT, Broadcast, TVRO, International DTH) for XR-3
32 people are viewing this product right now
$550.00
Shipping calculated at checkout.
Estimated delivery:5 days
Satellite Meter Module (VSAT / Broadcast TVRO / DTH) with NIT feature for XR-3
- Compatible with XR-3 Modular Test Instrument
- Satellite ID by “align-to-lock” or “automatic scan“
- Displays the Network ID of the individual transponders, if available, once a “LOCK” is obtained
- ID multi-lock algorithm eliminates false positives
- Powers LNBs and multi-switches
- Use for L, C, X, Ku, or Ka band applications
- High sensitivity assures alignment optimization
- Geo-sensitive “Field Guide” software database stores all compatible satellites and transponders per global region
- Program and store up to 256 custom transponders
- Controls multi-LNBs/switches with 22kHz DiSEqC tone
Guarantee Safe and Secure Payment Checkout
Description
Applied XR-S2XACM-02
- Compatible with XR-3 Modular Test Instrument
- Satellite ID by “align-to-lock” or “automatic scan“
- Displays the Network ID of the individual transponders, if available, once a “LOCK” is obtained
- ID multi-lock algorithm eliminates false positives
- Powers LNBs and multi-switches
Satellite Signal Level Meter Module For VSAT, Broadcast TVRO, & International DTH
Benefits
- Compatible with XR-3 Modular Test Instrument
- Friendly user interface
- Satellite ID by “align-to-lock” or “automatic scan“
- Displays the Network ID of the individual transponders, if available, once a “LOCK” is obtained
- ID multi-lock algorithm eliminates false positives
- Powers LNBs and multi-switches
- Use for L, C, X, Ku, or Ka band applications
- High sensitivity assures alignment optimization
- Geo-sensitive “Field Guide” software database stores all compatible satellites and transponders per global region
- Program and store up to 256 custom transponders
- Controls multi-LNBs/switches with 22kHz DiSEqC tone
- Manually tune to custom transponders using front panel keypad
- Audible tone for signal lock or peak
- Store measurements for Proof-of-performance reporting
- “Limit Scan” Pass/Fail for key transponders
- Displays antenna settings (AZ / EL / Skew) based on user’s postal code or latitude and longitude coordinates
- Field replaceable type F barrel connectors
- Fast system boot-up time in less than 5 seconds
Measurements
- Demodulates DVB-S, DVB-S2 & DVB-S2X (CCM, ACM, & VCM) signals
- Signal Level (dBm, dBmV, or dBμV) with present and peak bar graph
- Signal Quality (IRD, C/N, Eb/No, or Es/No)
- Pre-FEC & Post-FEC BER (Bit Error Rate)
- PER (Packet Error Rate)
- Voltage output of IRD / IDU (29V max)
- Current draw of LNB
- LNB frequency deviation (LNB LO drift estimate)
- Symbol Rate error
- Spectrum Screen (frequency on x-axis, amplitude on y- axis)
- Constellation Screen (I and Q demodulator values)
Signal Level Meters – CATV / CCTV / Satellite/Satellite Signal Level Meter Template | |
|---|---|
| Minimum Frequency Range | 950 MHz |
| Maximum Frequency Range | 2150 MHz |
| Field Replacement F Connectors | Yes |
| Satellite Capability | DirecTV, Other |
| Measurements | Bit Error Rate, dB, IRD (voltage), LNB (current), LNB Frequency Deviation Estimate, Other, Signal Level |
| Signal Level Units of Measure | dBµV, dBm, dBmV |
| Ability to add new Satellites Manually | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
