Autonics ABS-H32TN-NN Relay Terminal Block, Hirose connector, 32Relays

Name: Autonics ABS-H32TN-NN Relay Terminal Block, Hirose connector, 32Relays - NESTES Instruments
SKU: Autonics ABS-H32TN-NN

Brand:

Autonics

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

21 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:4 days

Relay Terminal Block, Hirose connector, 32Relays,Takamisawa(Fujitsu)NYP, NPN( COM+), 250VAC 2A,30VDC 2A

Suitable for operating various loads using PLC signals
Easy to check operation status and cable break from LED display lamp
Can be used with 2 types of relays (TAKAMISAWA(Fujitsu) NYP / MATSUSHITA(Panasonic) PA)
- Two-way ejector for relay replacement provided
- Easy relay replacement with relay removal lever (1-point relay terminal block)
2 mounting options (DIN rail or screw fix)
Male & female interface allows easier expansion and compact mounting (1-point relay terminal block)
Autonics CJ Series I/O cables are recommended for use. (Connector transmission cable)

SKU: Autonics ABS-H32TN-NN Tags: Electrical Parts and Products, Terminal Blocks and Strips Categories: Terminal Blocks and Strips

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

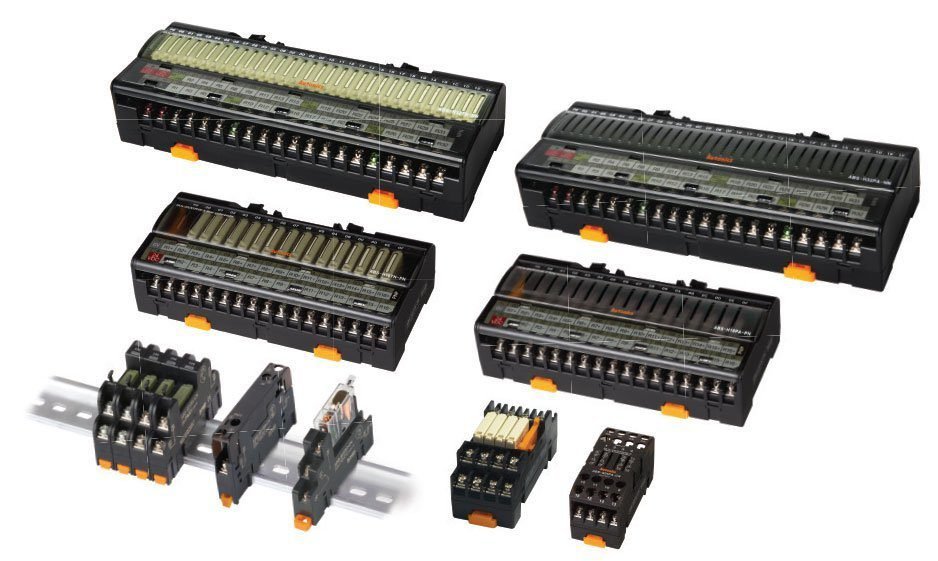

Autonics ABS Series Relay Terminal Block

Relay Terminal Block, Hirose connector, 32Relays,Takamisawa(Fujitsu)NYP, NPN( COM+), 250VAC 2A,30VDC 2A
Suitable for operating various loads using PLC signals
Easy to check operation status and cable break from LED display lamp
Male & female interface allows easier expansion and compact mounting (1-point relay terminal block)

Relay terminal block ABS Series provides optimal solution to drive various loads using PLC output signals. This series supports 2 types of relays [TAKAMISAWA (Fujitsu) NYP / MATSUSHITA (Panasonic) PA], and is equipped with LED lamp used for checking operation status and cable break status. Also, user convenience has been enhanced by allowing mounting on DIN rail or using screws.
