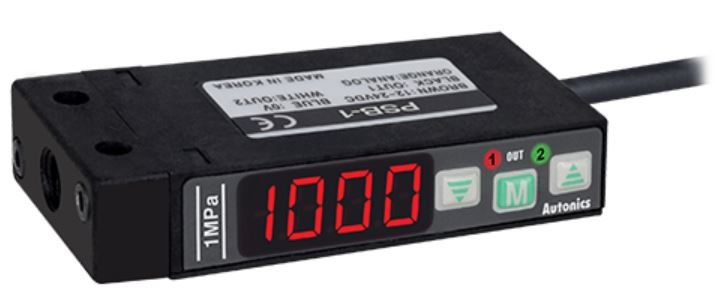

Autonics PSB-1-M5 Rectangular Type Digital Display Pressure Sensor
14 people are viewing this product right now
$158.40
Shipping calculated at checkout.
Estimated delivery:3 days
Sensor, Pressure, Standard Pressure, 3 1/2 Digit LED, Rectangular, 0 to 1000 kPa, 2 NPN/1-5 VDC Out, 12-24 VDC
- Rectangular Type Digital Display Pressure Sensor
- Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
- Pressure port: M5
- Connection type: Cable type (cable type cable: 2m)
- Pressure type: Standard pressure
- Rated pressure range: 0 to 1,000kPa
- Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
- Current consumption: Max. 50mA
- Protection structure: IP40
Guarantee Safe and Secure Payment Checkout
Description
Autonics PSB-1-M5 Rectangular Type Digital Display Pressure Sensor
PSB Series
- Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
- Pressure port: M5
- Pressure type: Standard pressure
- Rated pressure range: 0 to 1,000kPa
- Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
The PSB series compact digital pressure sensors feature high display resolutions and fast response time for optimal performance. The sensors also feature various output modes and functions, making it ideal for various pressure related applications. The bright LED display allows users to quickly and easily identify pressure level and status. Connector type models (PSB-C) are also available, offering easier maintenance and wiring work.
Additional Features:
- High accuracy digital pressure sensor
- Bright red LED display (character height: 9.5mm)
- High display resolution: negative pressure 0.1kPa/standard pressure 0.1kPa, 1kPa/compound pressure 0.2kPa
- Unit conversion function
- Negative, compound pressure: kPa, kgf/cm², bar, psi, mmHg, mmH2O, inHg
- Standard pressure: kPa, kgf/cm², bar, psi
- Various output modes: hysteresis mode, automatic sensitivity adjustment mode, independent 2-point output mode, window comparison output mode
- Chattering prevention function (response time: 2.5ms, 5ms, 100ms, 500ms)
- Analog output (1-5VDC) scale function
- Zero-point adjustment function
- Peak value and low value hold function
- Built-in reverse polarity protection circuit, overcurrent protection circuit
Ordering Information:
Product General Attributes | |
|---|---|
| Shipping Weight | 0.35 LBS |
